Base & Tube Columns
-
Product Information

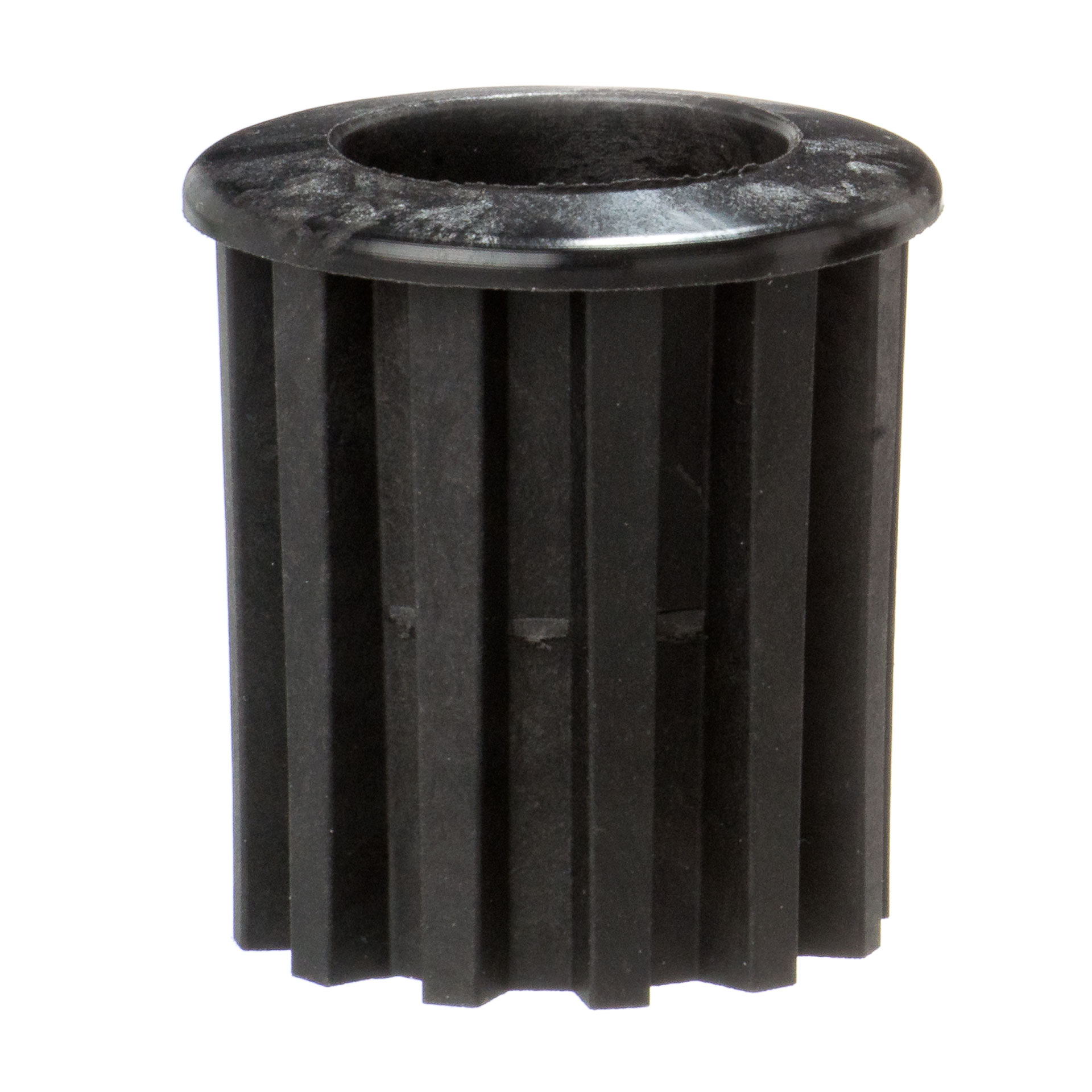

Adapter column with outer diameter tapered for base center hole, inside Eurocone
-
Name
Column adapter cone Ø50mm
-
Product Code
D5012616-EC
-
Column adapter cone Ø50mm for Combi swivel
-
D5012616-470
Adapter column with outer dimeter for tube, inside Eurocone or Gascone
Specifications
Material: composite
Color: black
REACH-compliant

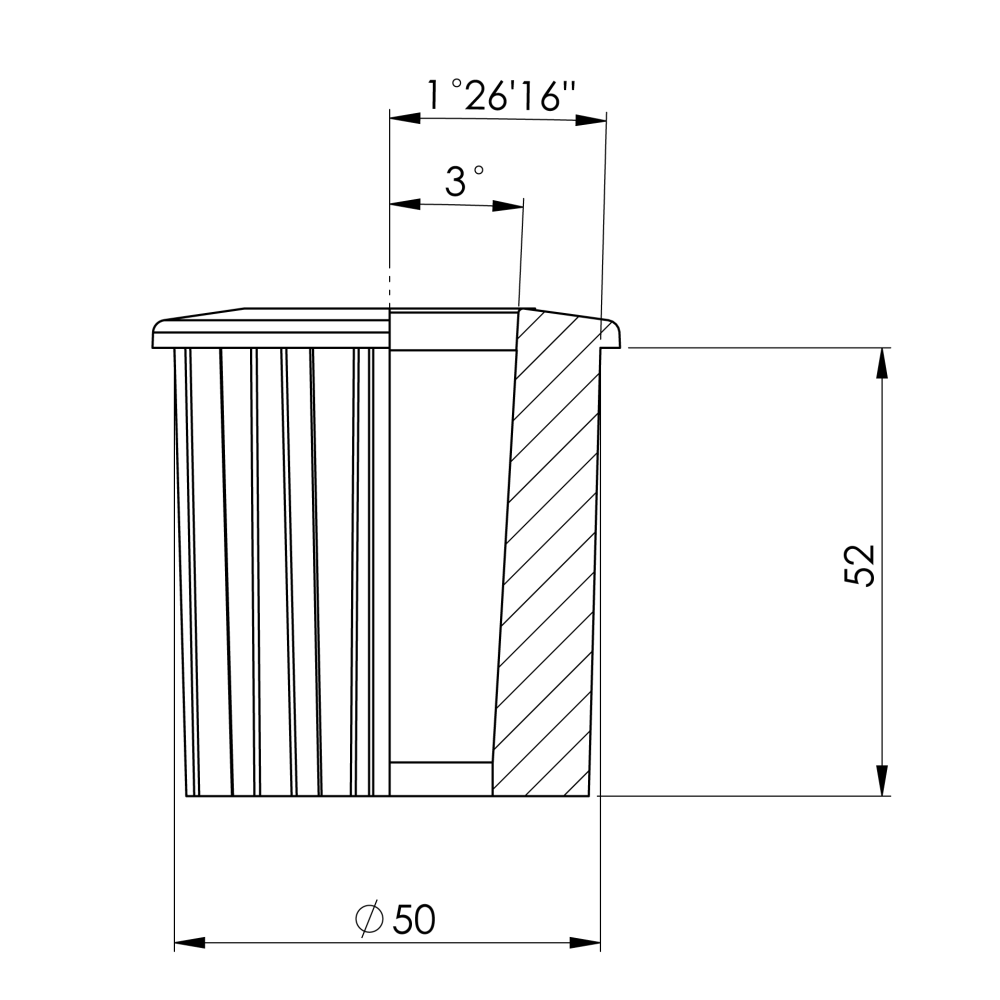

Outer dimension for center base hole Ø40mm or Ø50mm
Innerdimensions Eurocone Ø32mm, 3,000°
Required base hole tolerances: min. Ø49,6 ... max. Ø50,1mm
Options
Compatible with any swivel with Eurocone assembled upside down
-
-

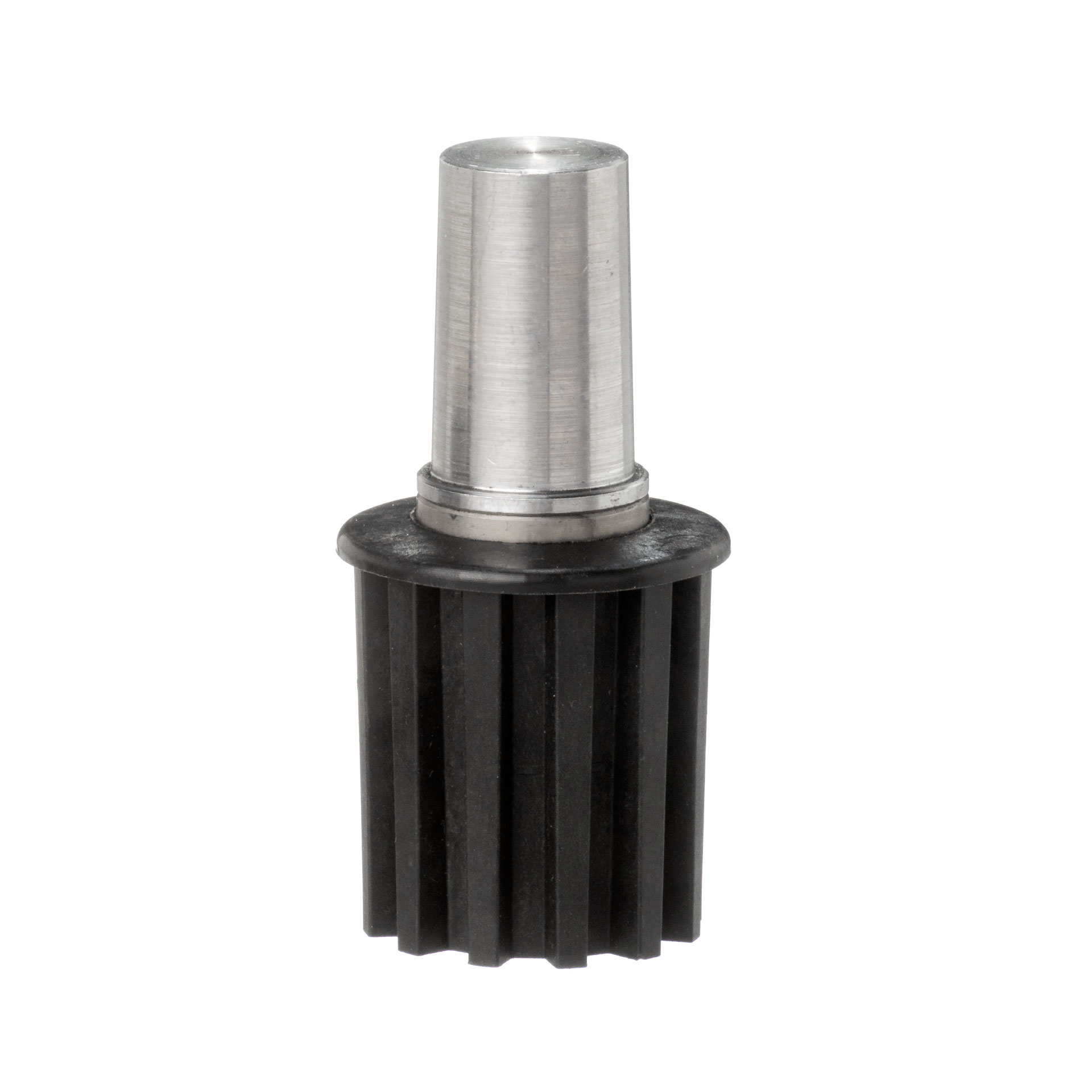

Inspiration and Assembling
Download printer-friendly product sheet
Read here by clicking above or download from the link below.
Base et Tube Columns - product sheet [pdf] [89.7 kB]
-
