Piccolo metal tubes
-
Product Information
Tapered metal tube models for Piccolo swivels, made from 50,8 x 2,00 or 50,0 x 2,00mm pipes.
-
Form

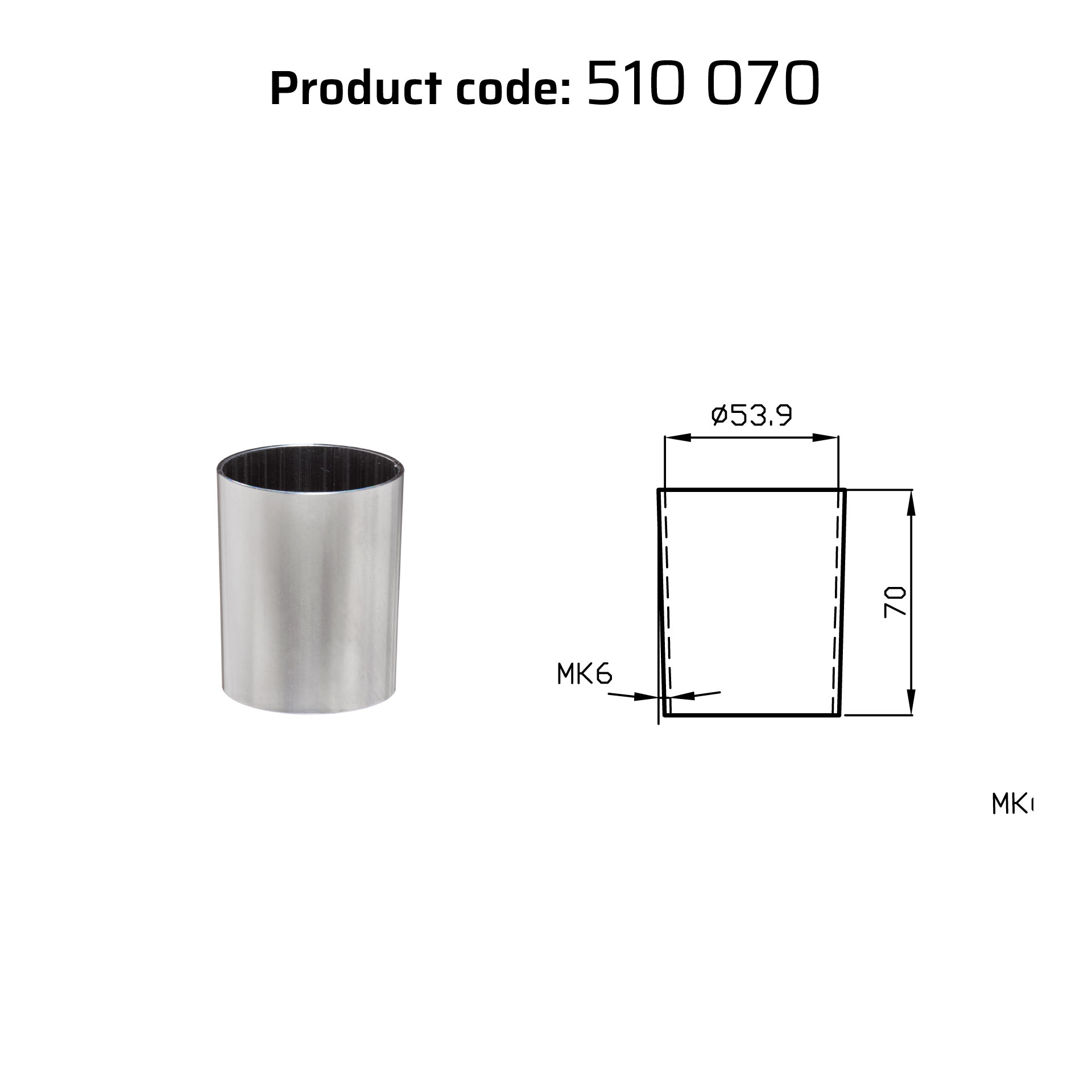

1 * cone
-
Product code
510 070 (minimum length 70mm)
-

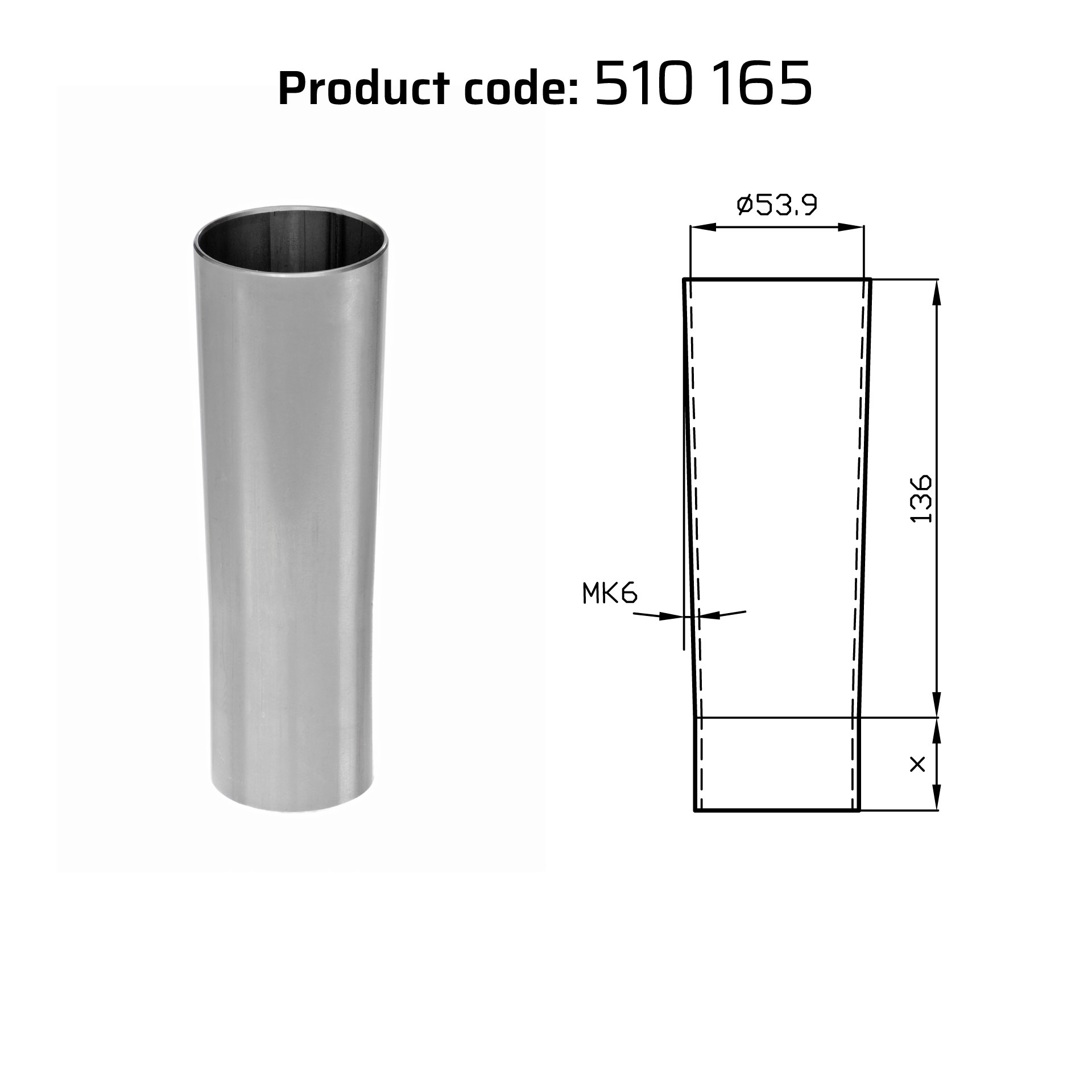

1 * cone
-
510 165
-

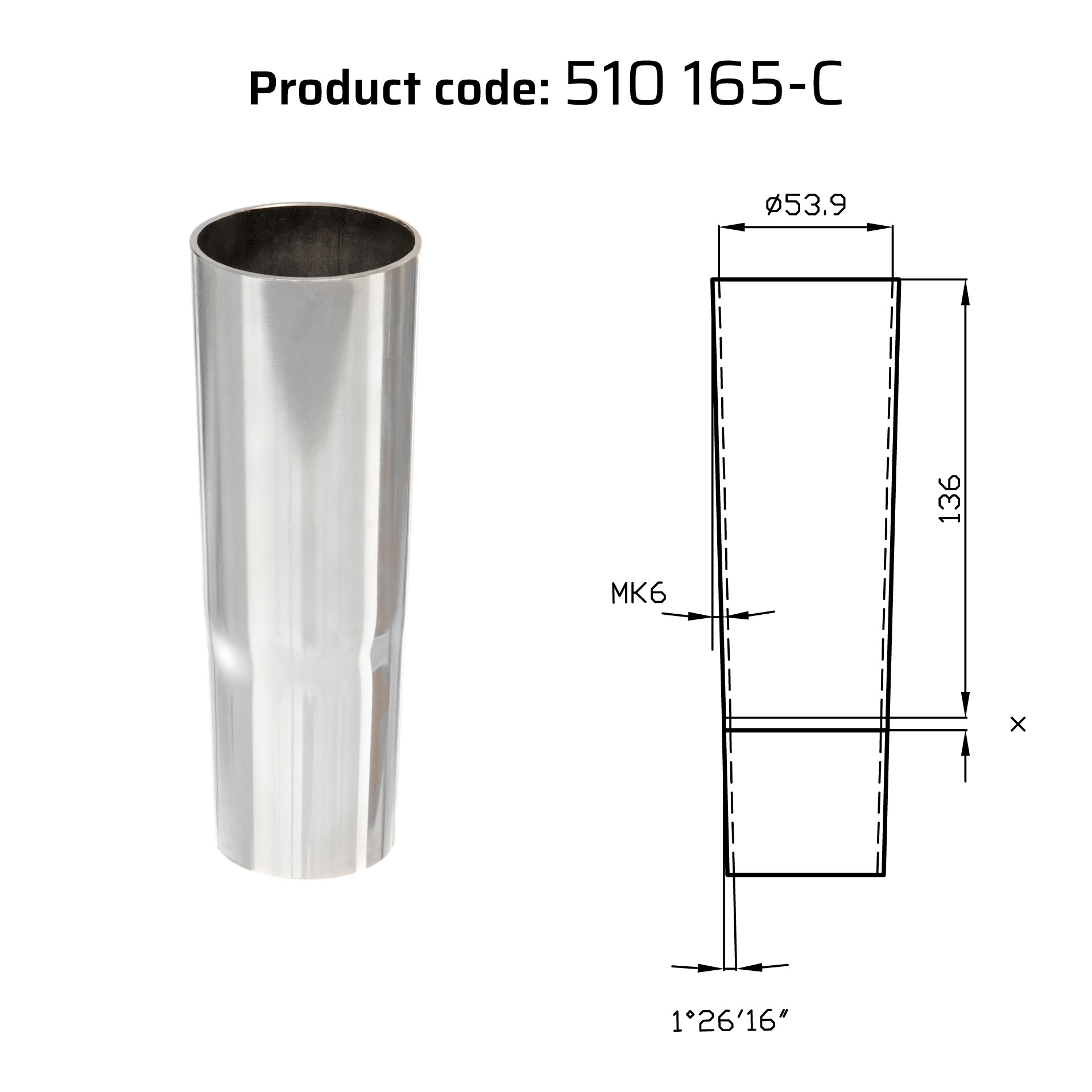

2 * cone
-
510 165-C
-

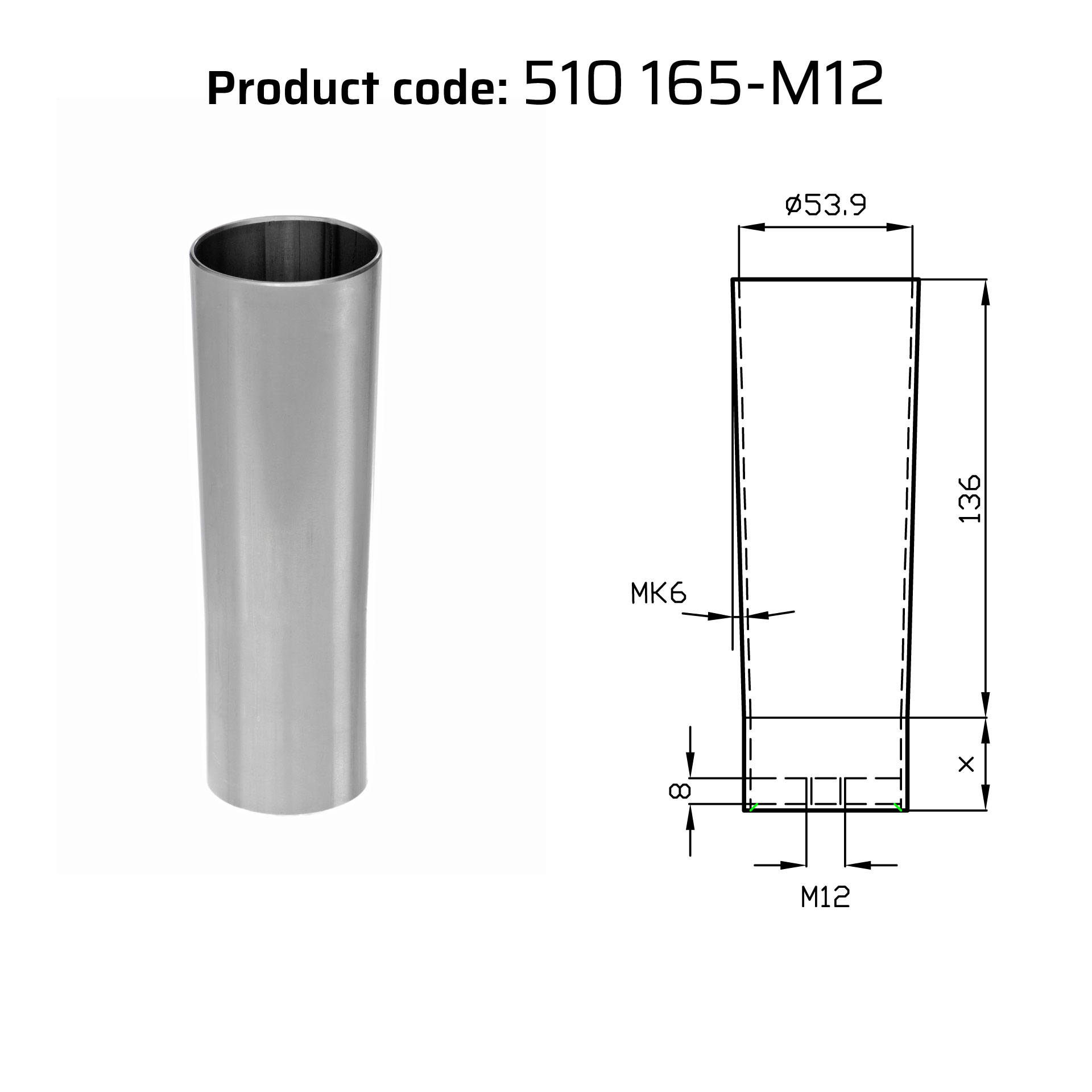

1 * cone M12
-
510 165-M12
If welded, tube can deform and needs to be reshaped.

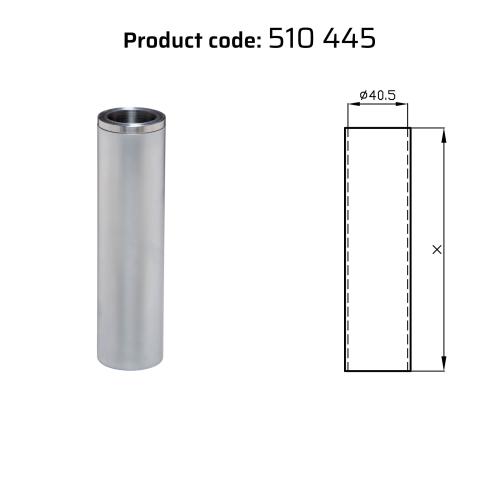

Cylindric Ø44,5mm
510 445 (length on request)
Specifications
MK6 = 1°29’36”
Standard made from metal pipe Ø50,8mm
Wall thickness of standard pipe 2mm
Raw metal surface, II -class for painting
Options
Surface: painted or chrome (matt/shiny). Other surfaces on request
Length
Upper conicity of tube could be made deeper to assemble the swivel at a lower level
Also available in Aluminium or stainless steel K320
-
-
Inspiration and Assembling
Assembling instructions

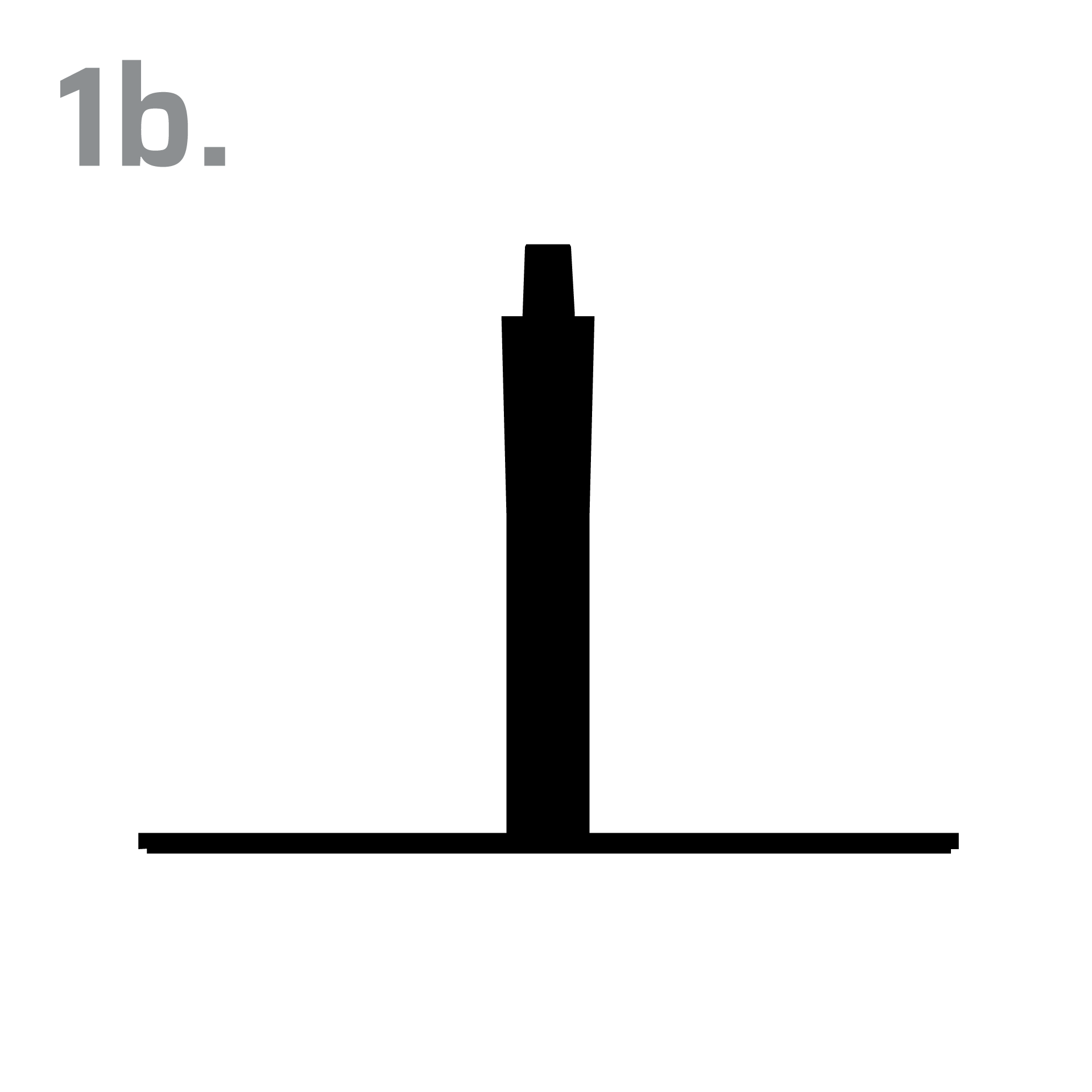

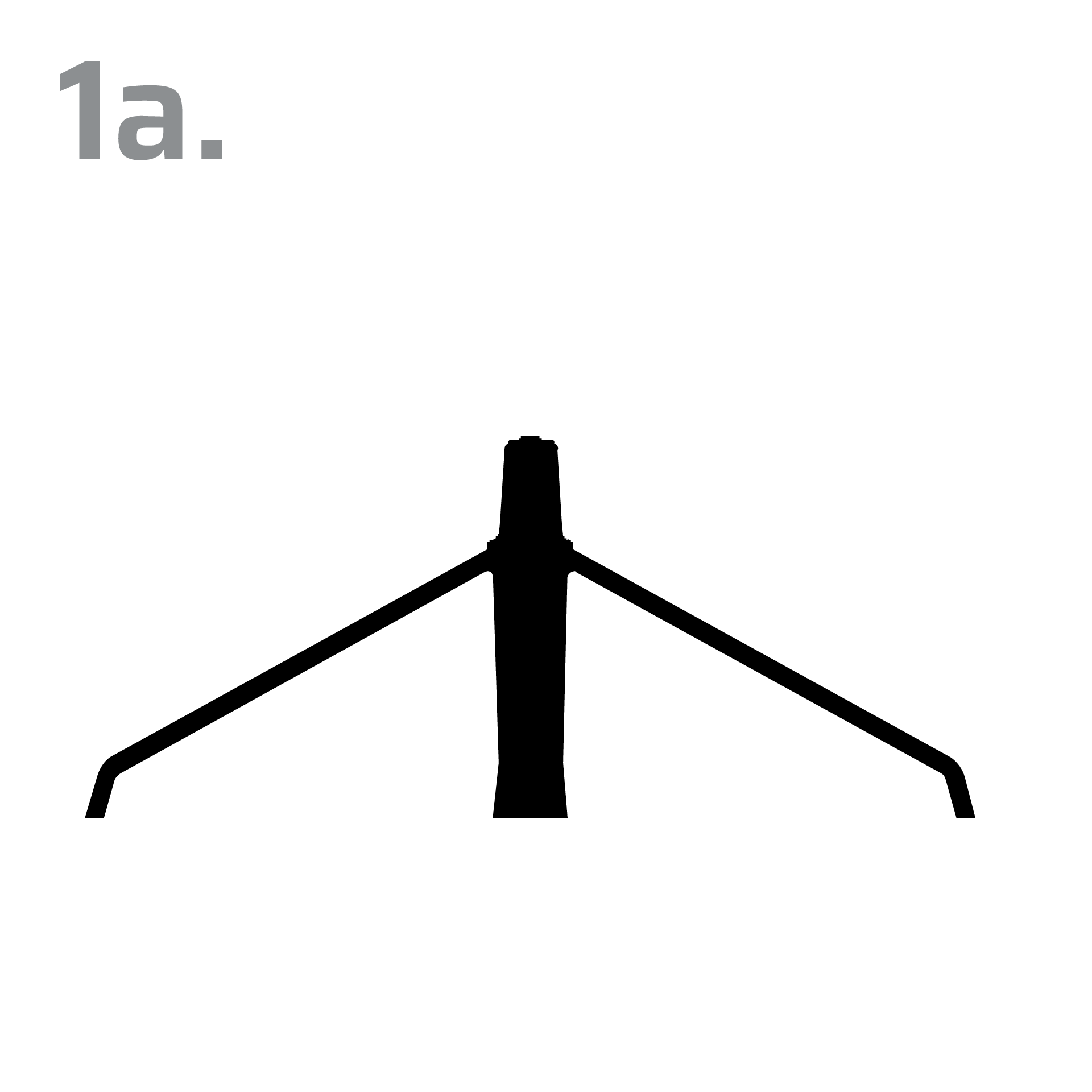

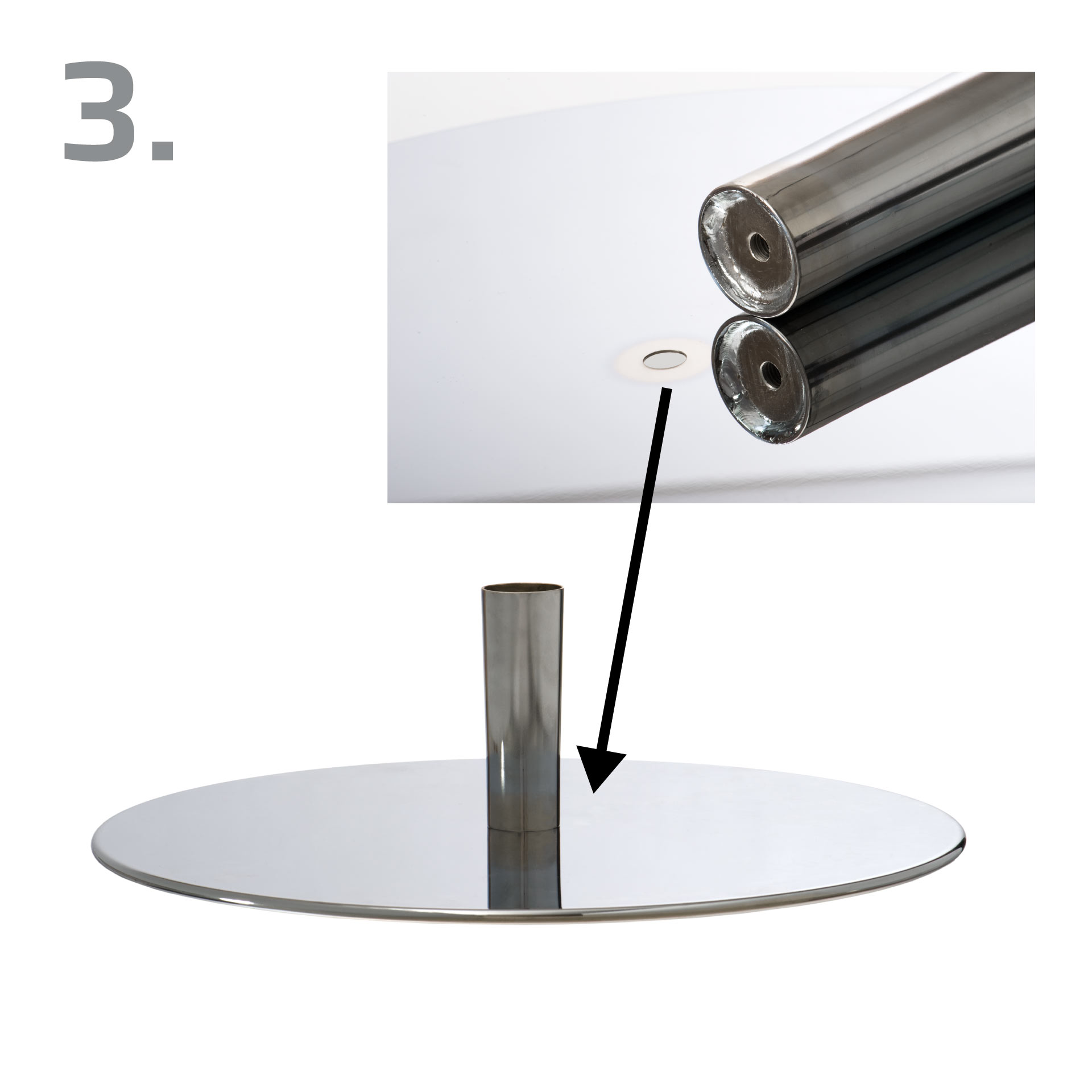

The Piccolo swivel is to be pressed into the tube 1. To be welded to metal legs (1a) / base (1b) 2. To be assembled to a center hole of base Ø50mm Conicity 1°26’16” 3. To be fastened to a base by an M12 screw
Ask for our assembly instructions
Download printer-friendly product sheet
Read here by clicking above or download from the link below.
Piccolo metal tubes - product sheet [pdf] [103.0 kB]
-
