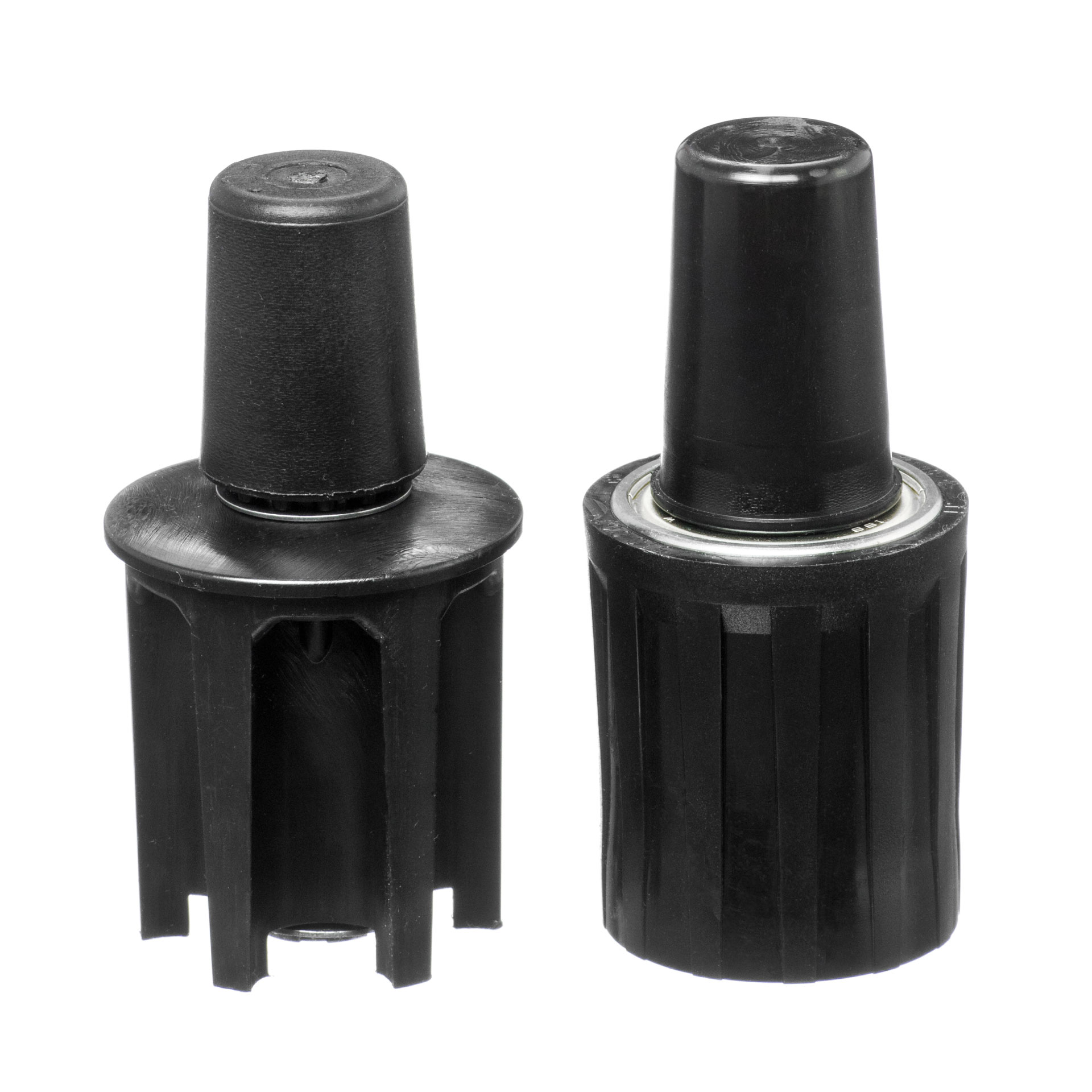

Piccolo swivel
-
Product Information
Swivel available with automatic return mechanism, adaptable for conical metal tubes Ø50.0-50.8mm and Ø44.5mm.
-
Name
Piccolo swivel, Automatic return >360°
-
Product code
510 000
-
with stability washer
-
510 000W
-
Piccolo swivel, rotating >360°
-
555 000
Specifications
Material: POM
Color: black

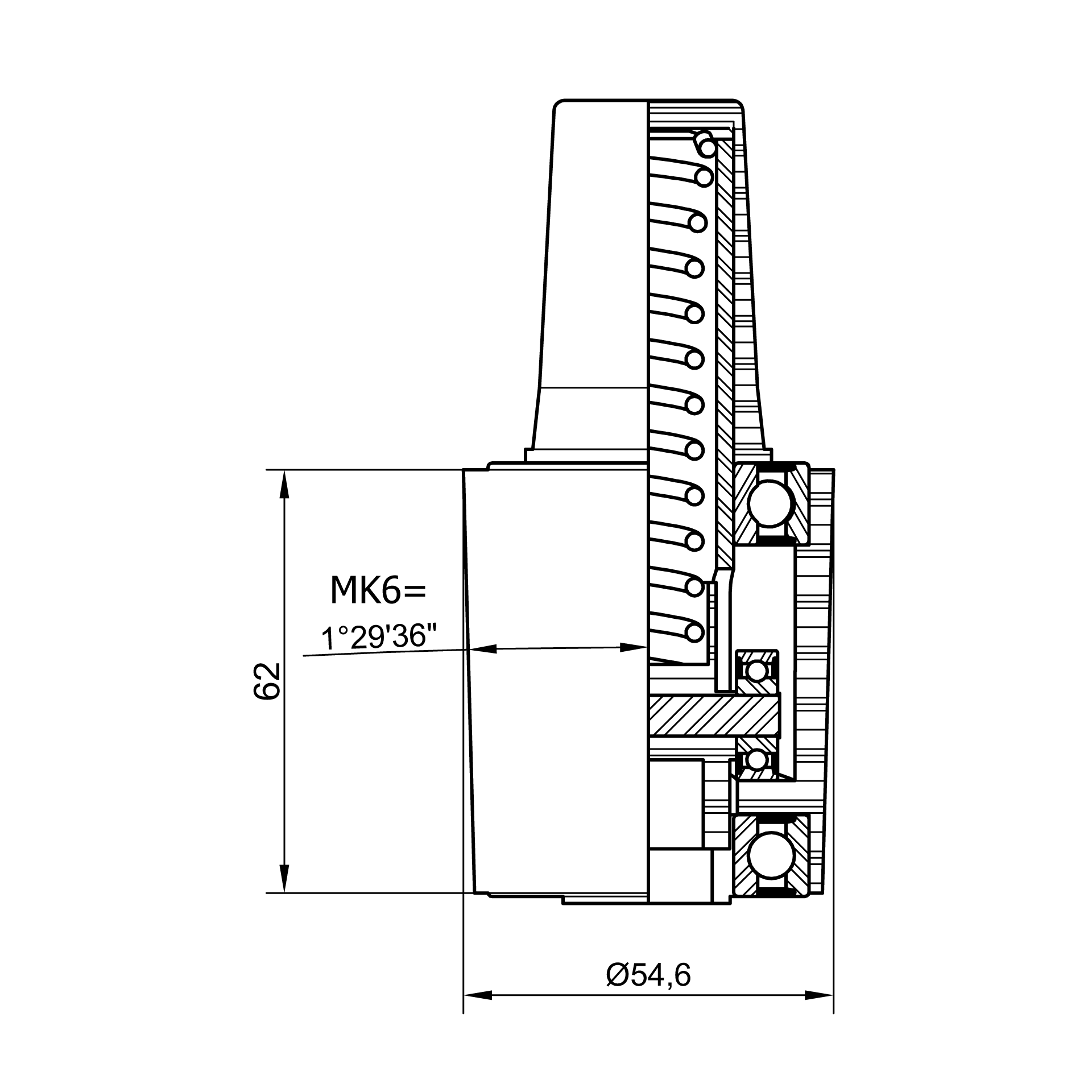

MK6 = 1°29’36”
REACH -compliant
Options
Cone
- Other cones available on request!
Video
-
-
Inspiration and Assembling
Assembling instructions
The whole swivel body requires the support of a conical metal tube (or equal support) with minimum length/height of 70mm

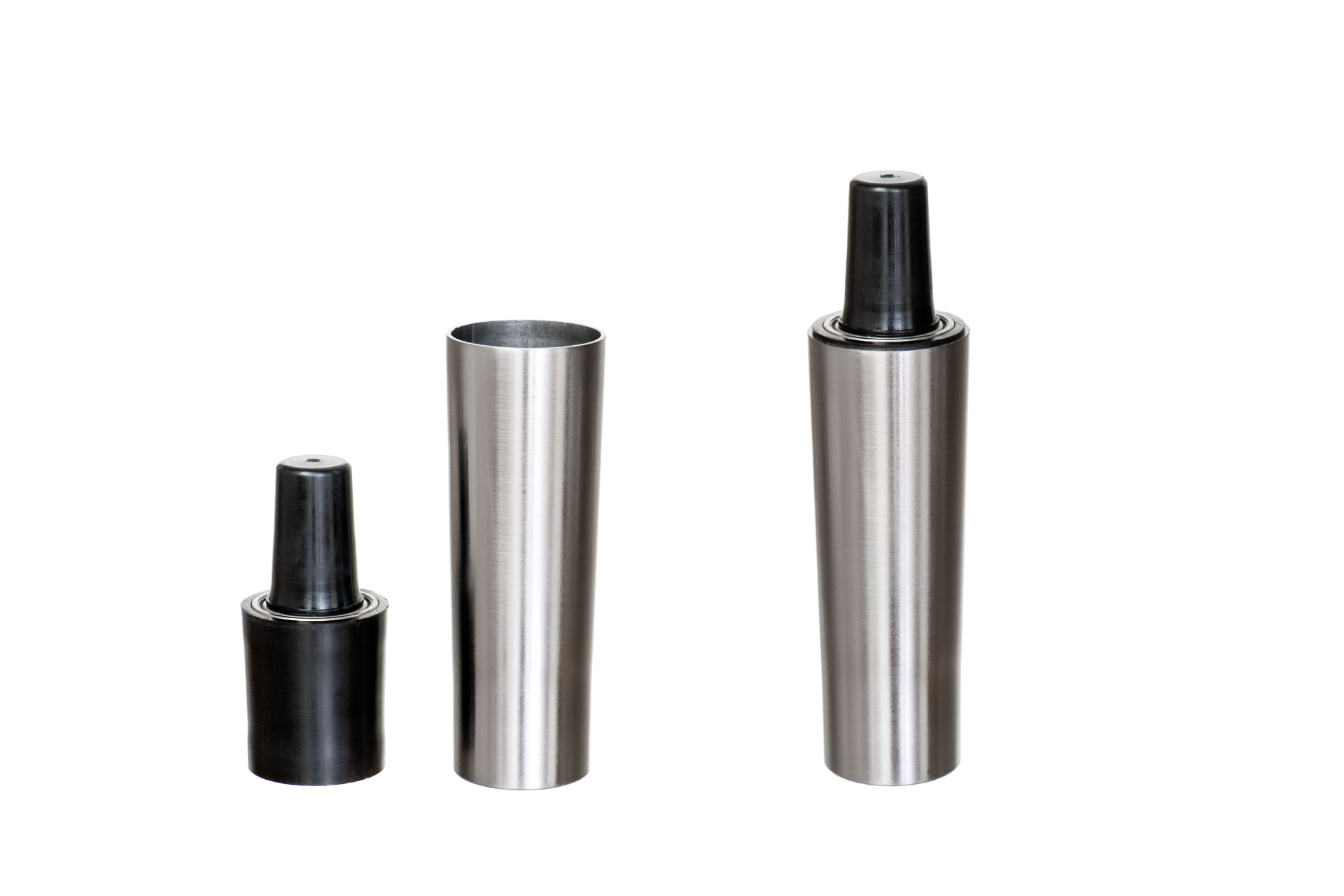

1a: Swivel to be assembled in a conical metal tube of Ø50.8mm (t=2mm)

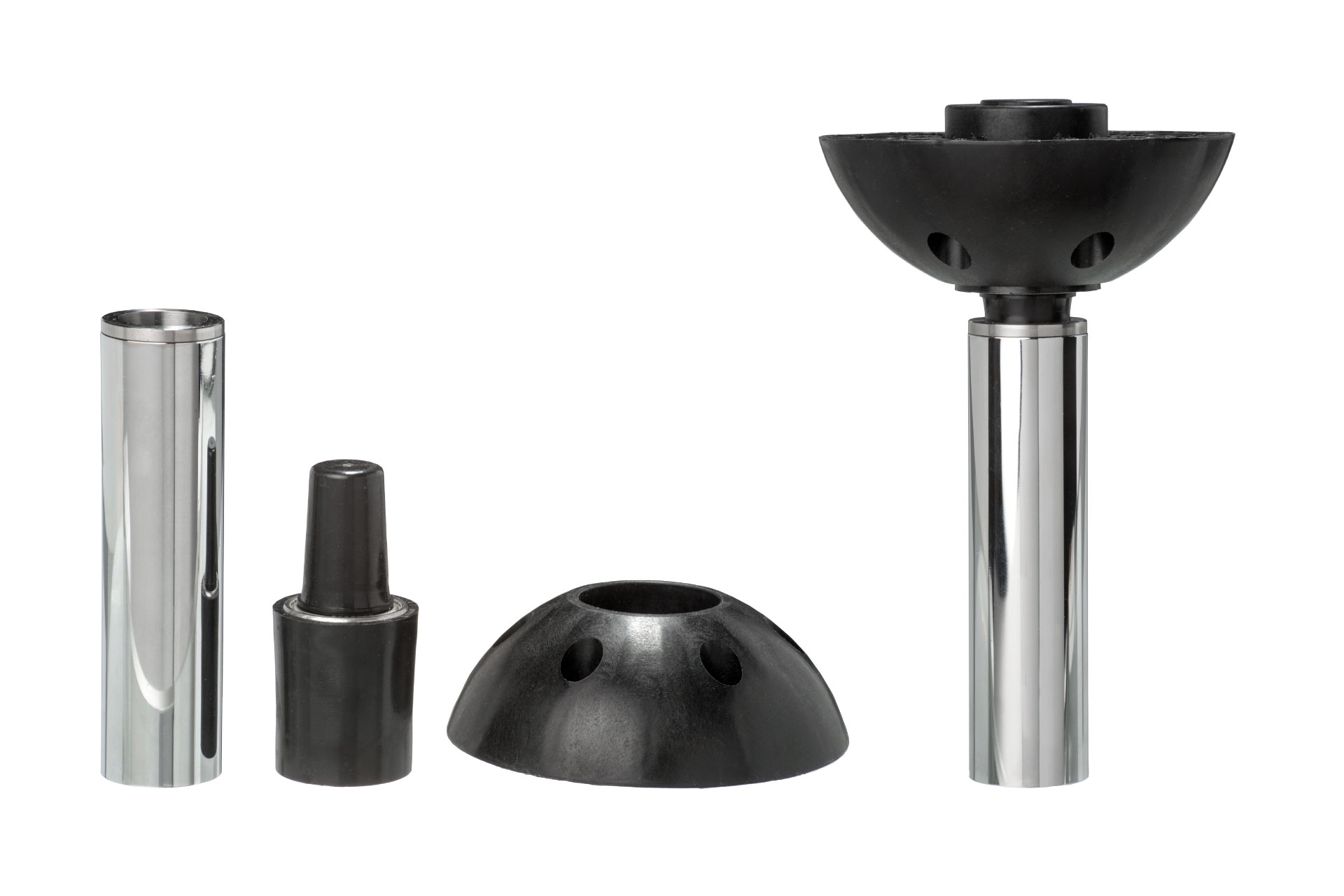

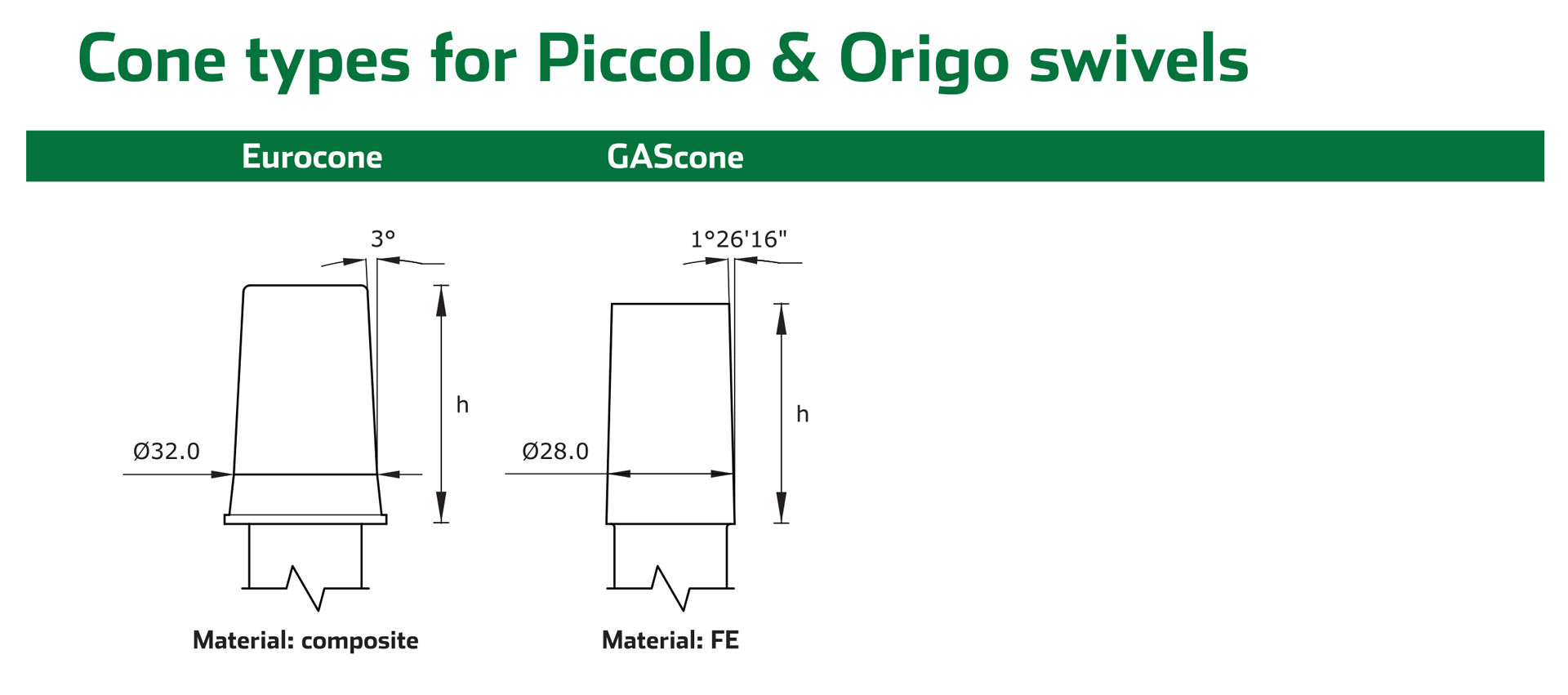

1b: Swivel to be assembled upside down in a metal tube Ø44.5mm (t=2mm). Female Bushing (Eurocone or GAScone) needed
Ask for our assembly instructions
Do not use fastening screw between upper cone and female cone
Download printer-friendly product sheet
Read here by clicking above or download from the link below.
Piccolo swivel - product sheet [pdf] [111.4 kB]
-
