Office Column
Center column for gas lift spring for chair with five veneer/solid wooden foot blades.
-
-
Available as
-
Name
Product Code
Available As
- Office Column 334 000
Specifications

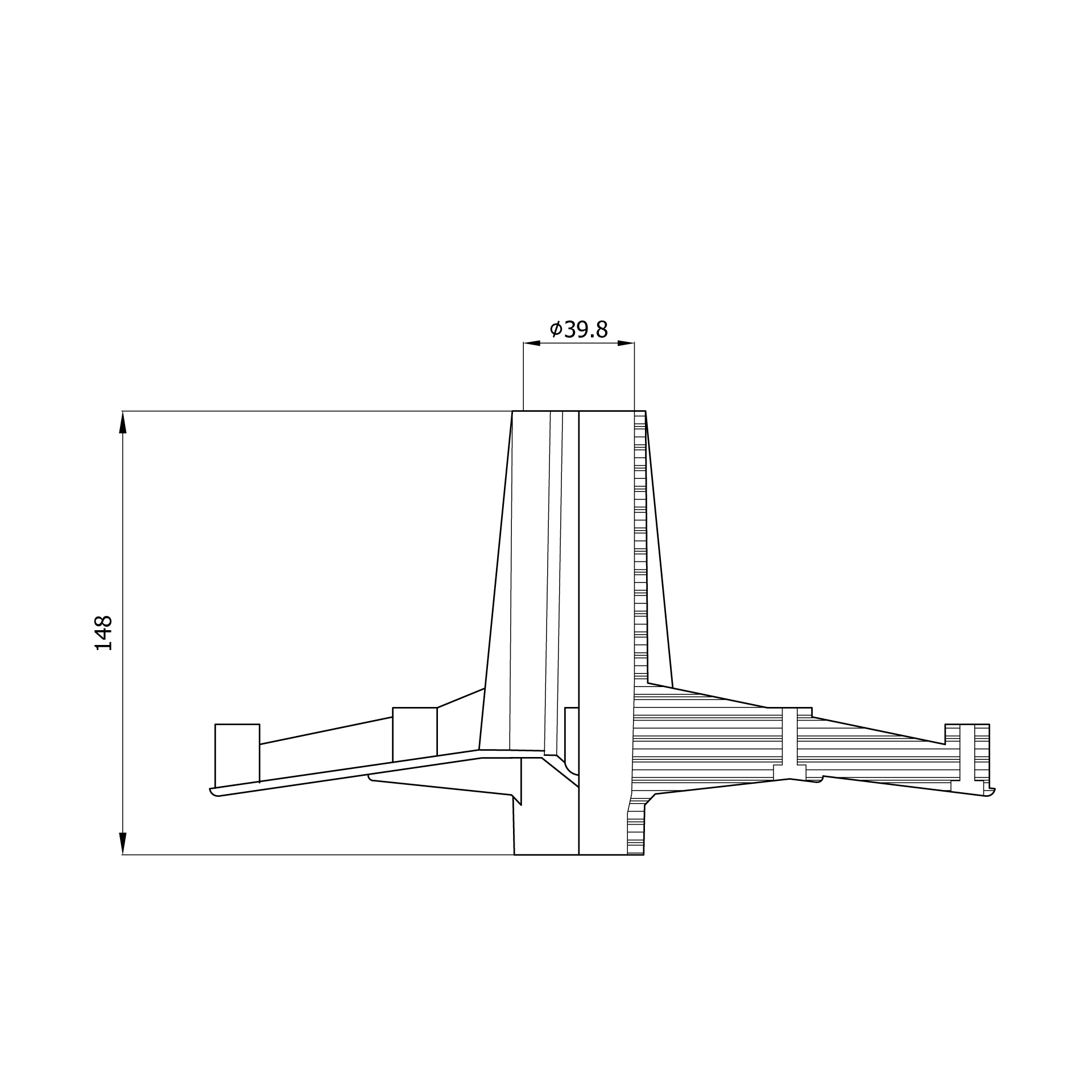

Swivel for office chair base with five pcs solid wooden legs Center hole for e.g. gas lift spring, Ø39.8mm No visible screws Material: composite Color: black Screws included Patented Drawings for solid foot blades available Assembling gallery
Technical Support

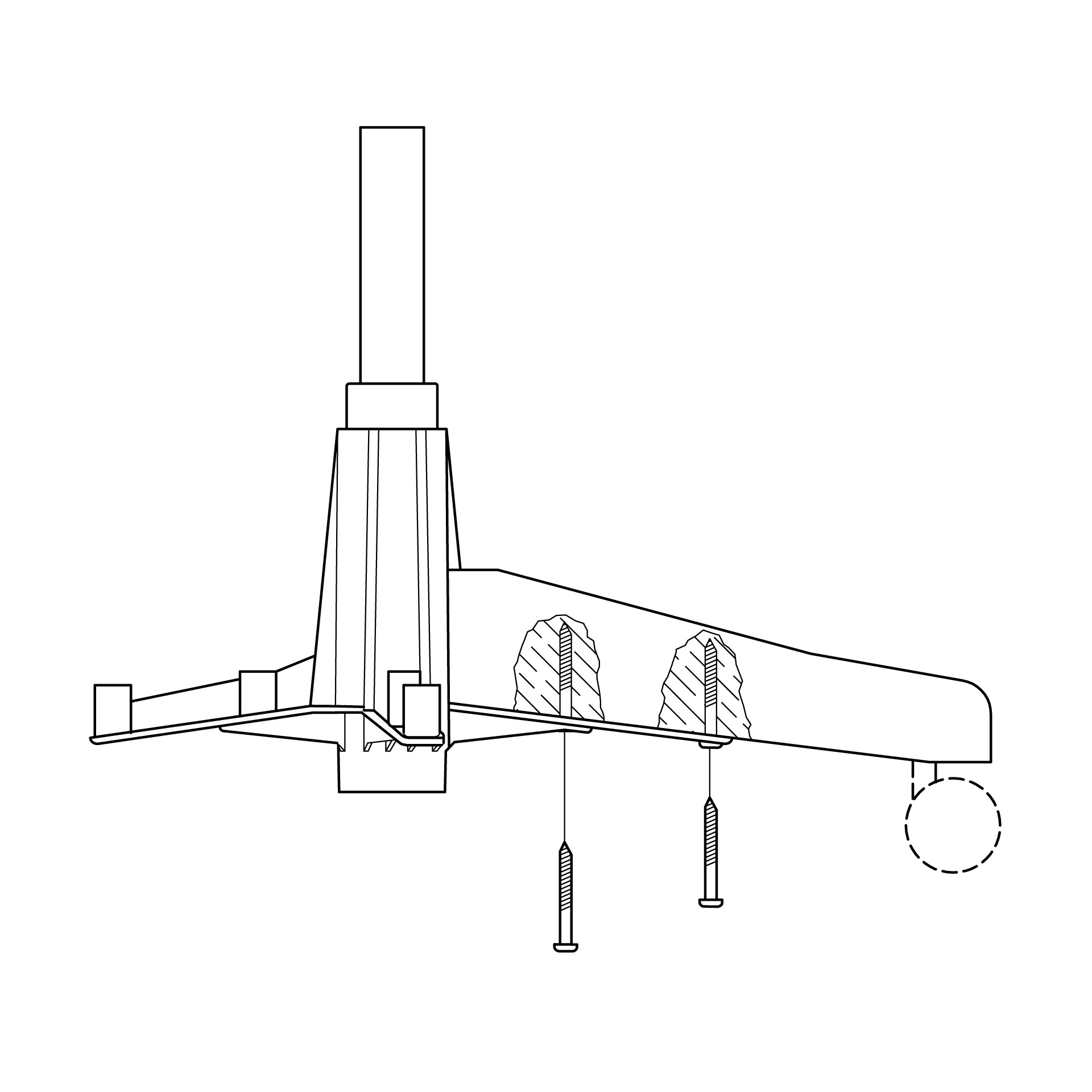

Assembling instructions Swivel to be assembled to foot blades with 10pcs wooden screws: 5pcs 5,0×50/30 + 5pcs 5,0×60/36 Technical Questions?
Do you need technical support related to our products, their assembly or other technical inquiries?Please get in touch with Mekrapid's technical team by the e-mail address below:techsupport(at)mekrapid.fiPrint or Save Product Sheet
Get a optimized brochure to go by printing this page Or you can choose to save the product sheet as a .pdf in the print dialogue. -
-
Gallery
