Patron and Release Metal Tubes
Tapered metal tube models for Patron and Release swivels, made from 50,8 × 2,00 or 50,0 × 2,00mm tubes.
-
-
Available as
-
Name
Length
Product code
Patron and Release Metal Tube 125mm 351 125 Patron and Release Metal Tube

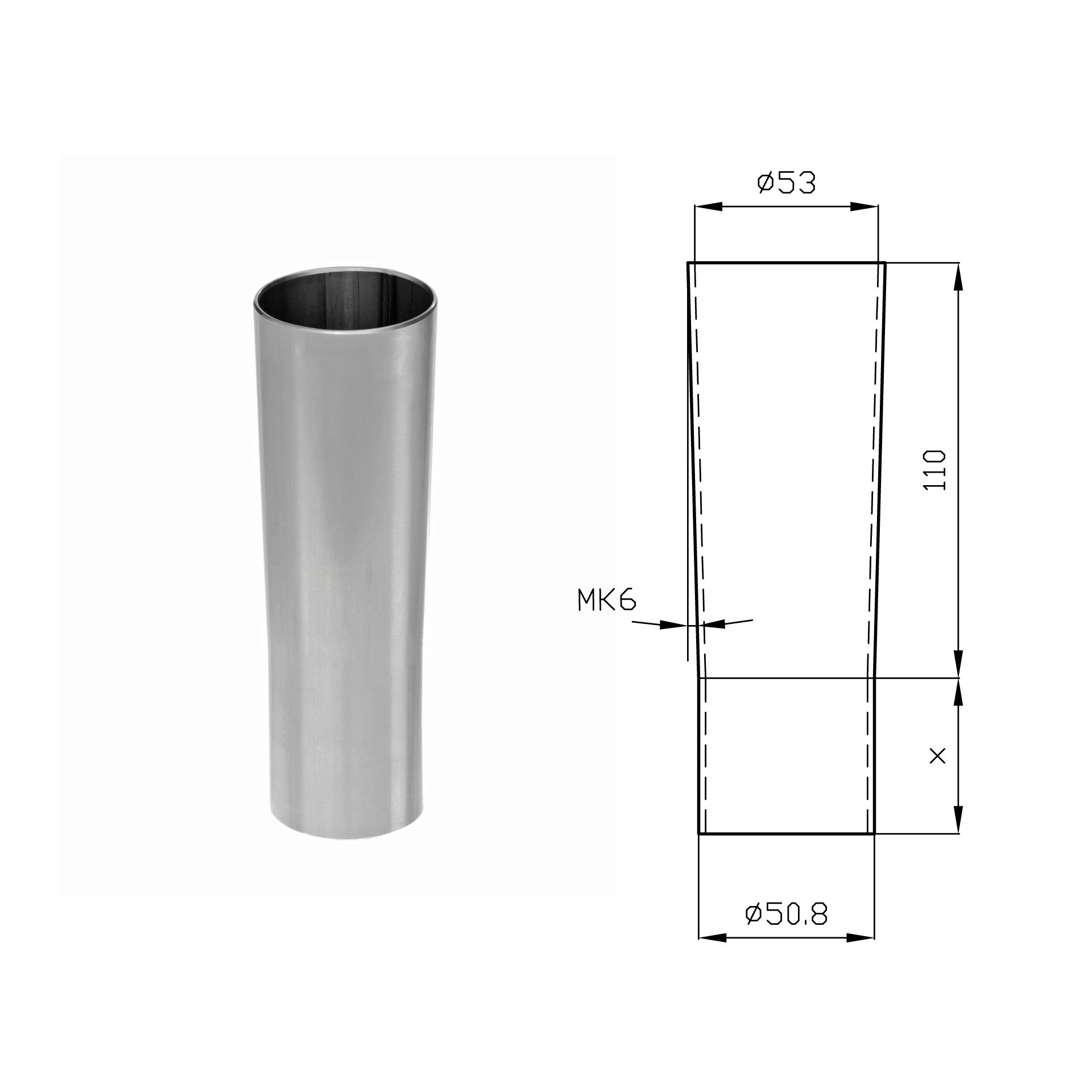

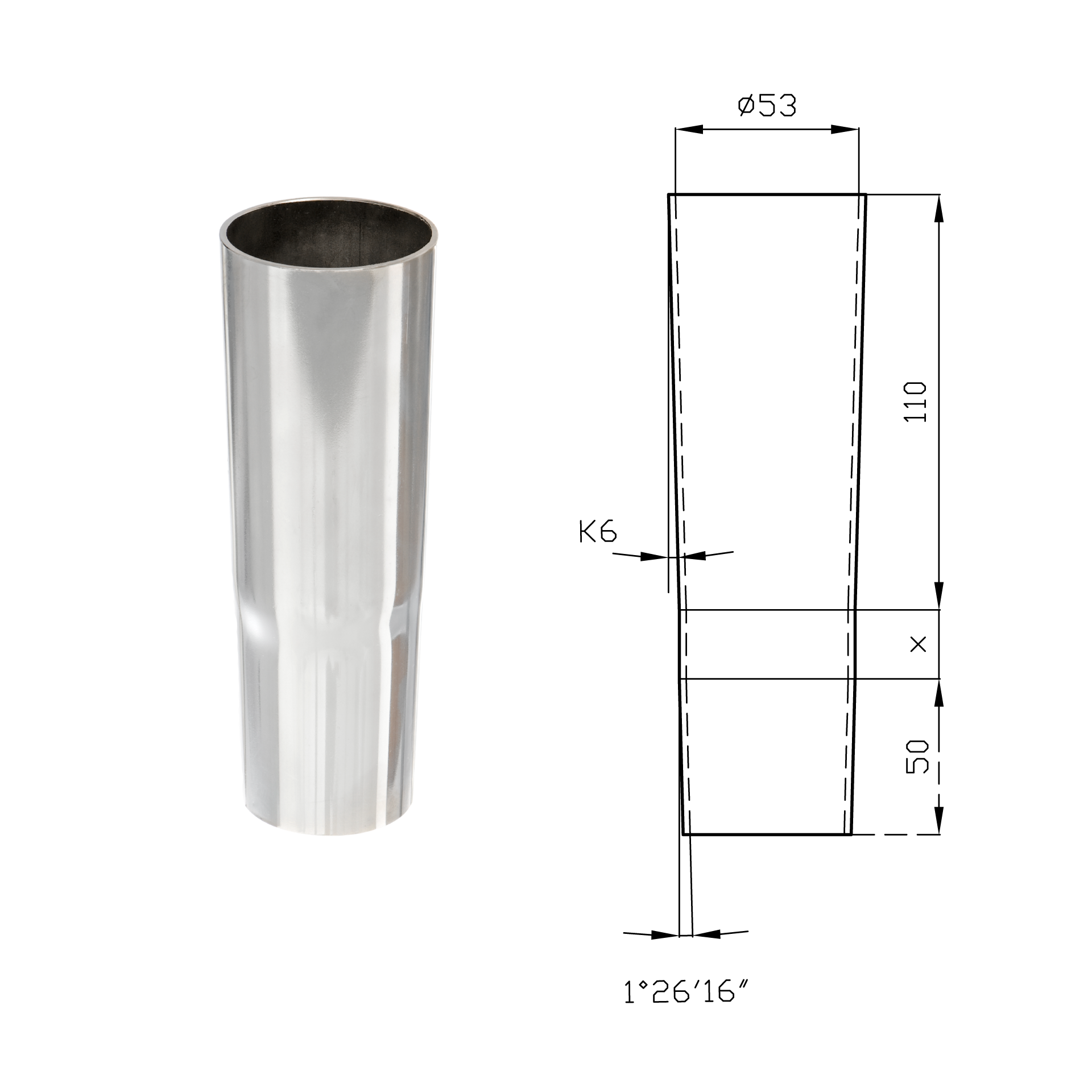

- tapered bottom165mm 351 165-C Patron and Release Metal Tube

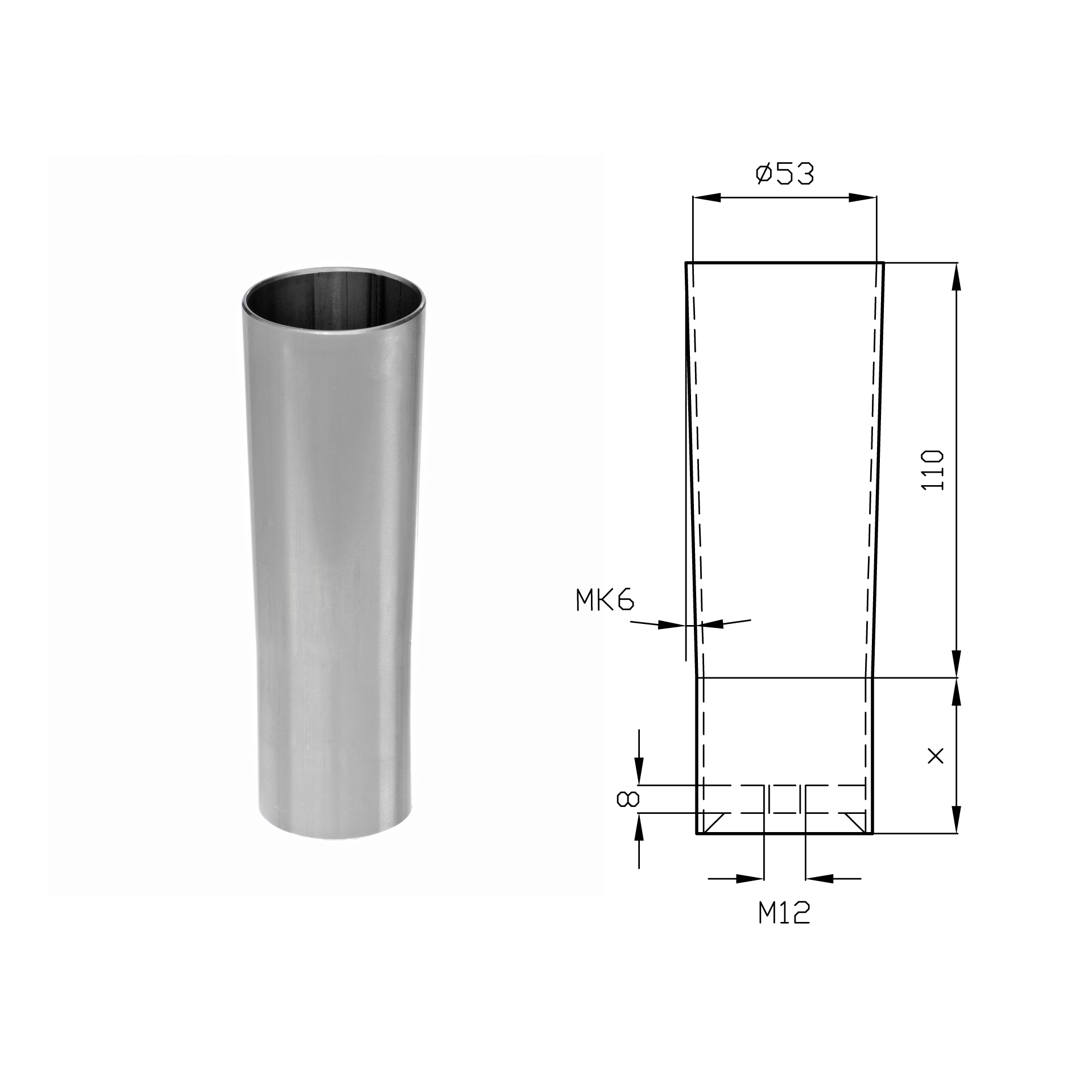

- M12135mm 351 165-M12 If welded tube can deform and needs to be reshaped.
Specifications
MK6 = 1°29’36”.
Standard made from metal pipe Ø50.8mm.
Wall thickness of standard pipe 2mm.
Raw metal surface, II-class for painting
Options
Surface: painted or chrome (matt/shiny). Other surfaces on request
Length
Upper conicity of tube could be made deeper to assemble the swivel at a lower level (counter sunk)
Also available in Aluminium or stainless steel K320
Assembling gallery
Technical Support
Assembling instructions
The Patron swivel is to be pressed into the tube
1. To be welded to metal legs (1a) / base (1b)
2. To be assembled to a center hole of base Ø50mm Conicity 1°26’16”
3. To be fastened to a base by an M12 screwAsk for our assembly instructions
