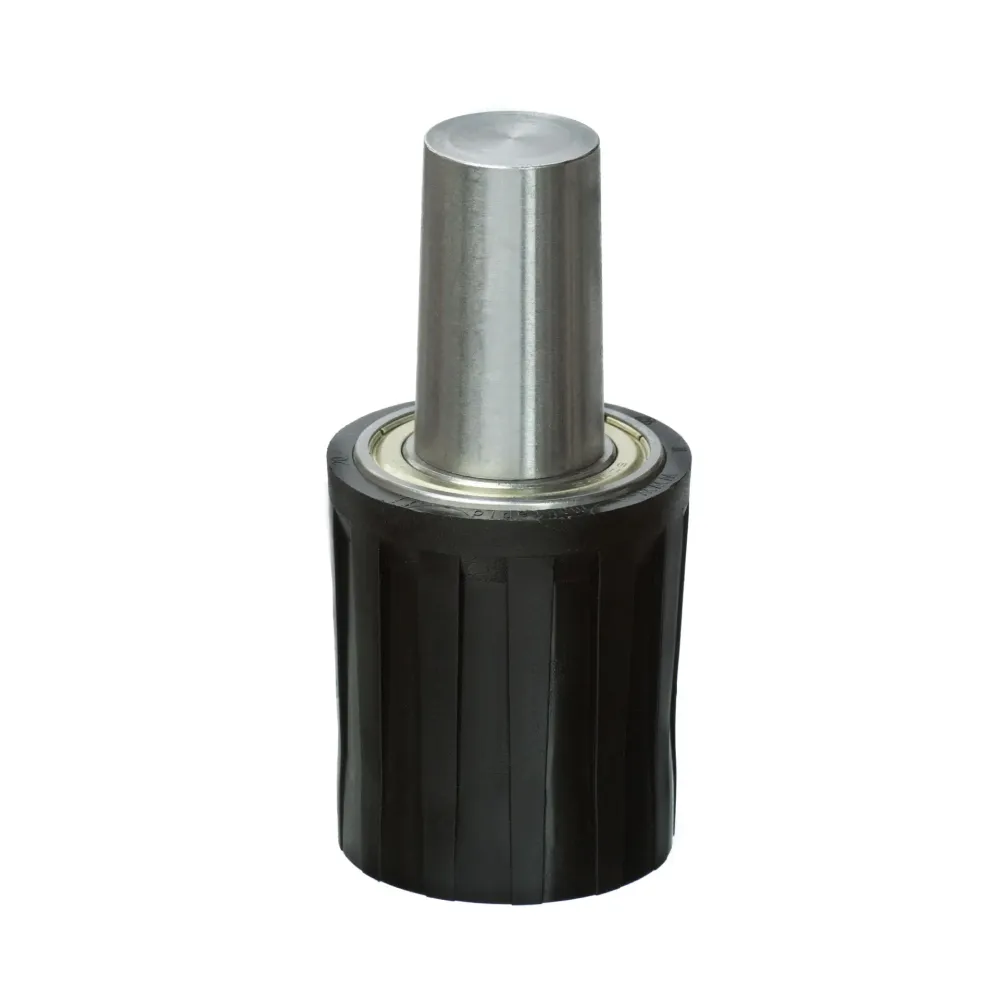

Piccolo Heavy-Duty
-
A swivel for demanding seating applications
The Piccolo Heavy-Duty is a robust auto-return swivel designed for seating subjected to higher loads, frequent use, and demanding environments.
Based on Mekrapid's proven Piccolo swivel platform, the Heavy-Duty version provides enhanced strength, long-term stability, and reliable performance even under intensive use.
Developed for large-occupant seating and public environments, it is an ideal choice when durability, safety, and consistent functionality are essential.
Typical applications
• Public and lounge seating
• Large recliners and tilting chairs
• Large occupant seating
• Hospitality environments
• Other high-use indoor seatingTested for demanding use
The Piccolo Heavy-Duty auto-return swivel has been tested according to ANSI/BIFMA X5.41-600 Large Occupant Public and Lounge Seating for users up to 600 lbs (272 kg). This recognized industry standard verifies suitability for seating designed for higher loads and intensive use.
-
Available as
Swivel available with automatic return mechanism, adaptable for conical tubes Ø50,0-50,8 and Ø44,5.
-
Name
Product Code
Available As
-
Automatic return >360°
510000-GASHD
Smart Swivel
Specifications
Material: POM
Color: black
MK6 = 1°29’36”
REACH -compliant
Auto return spring torque: 2,1 Nm.
Technical Support
The whole swivel body requires the support of a conical metal tube (or equal support) with minimum length/height of 70mm
Swivel can be used traditionally as a column, or upside-down under a chair seat
Ask for our assembly instructions
Technical Questions?
Do you need technical support related to our products, their assembly or other technical inquiries?
Please get in touch with Mekrapid's technical team by the e-mail address below:
techsupport(at)mekrapid.fi
Print or Save Product Sheet
Get a optimized brochure to go by printing this page
Or you can choose to save the product sheet as a .pdf in the print dialogue.
-
-
