Patron swivel

Product Information

Swivel available with automatic return mechanism, adaptable for conical metal tube Ø50-Ø50.8mm.
- Name

  Patron swivel, automatic return > 360°
- Product code

  351 000
- Patron swivel, rotation > 360°
- 355 000
Specifications

Material: metal and composite
Color: black
Patented function
REACH-compliant and part of Svanen-labelled furniture piece

Options

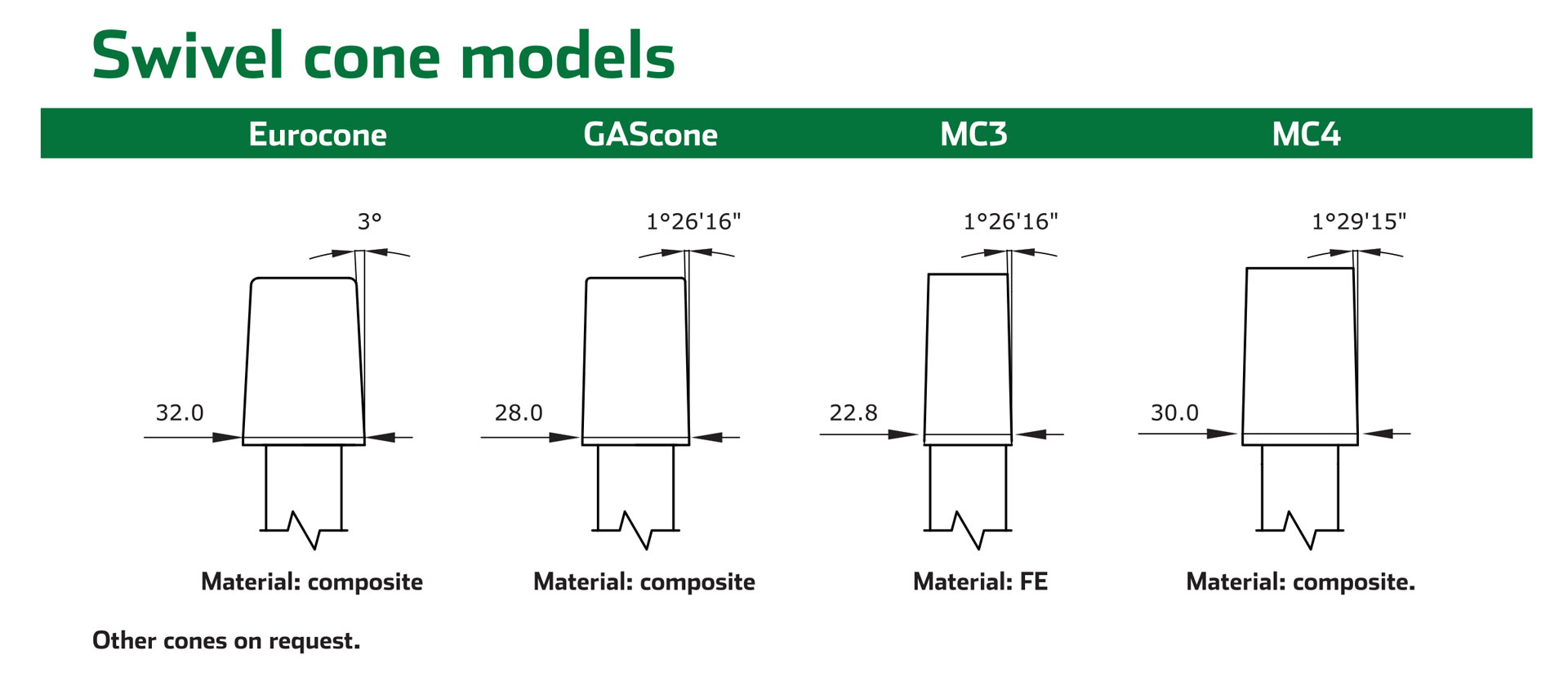

Cone
- Other cones available on request!
Automatic return function: light, medium or heavy
High precision cam

Video
Inspiration and Assembling

Assembling instructions

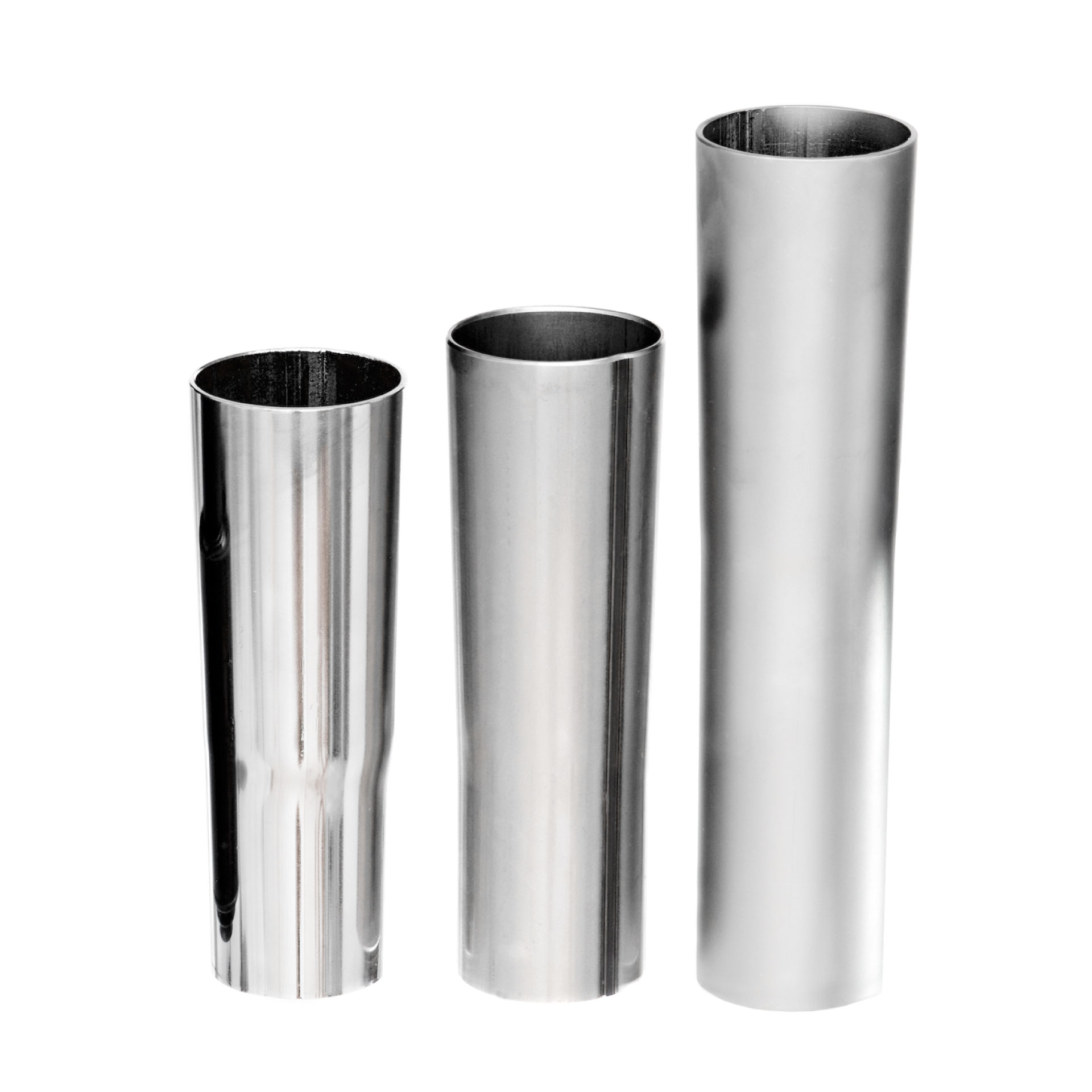

swivel is to be assembled in a conical metal tube.

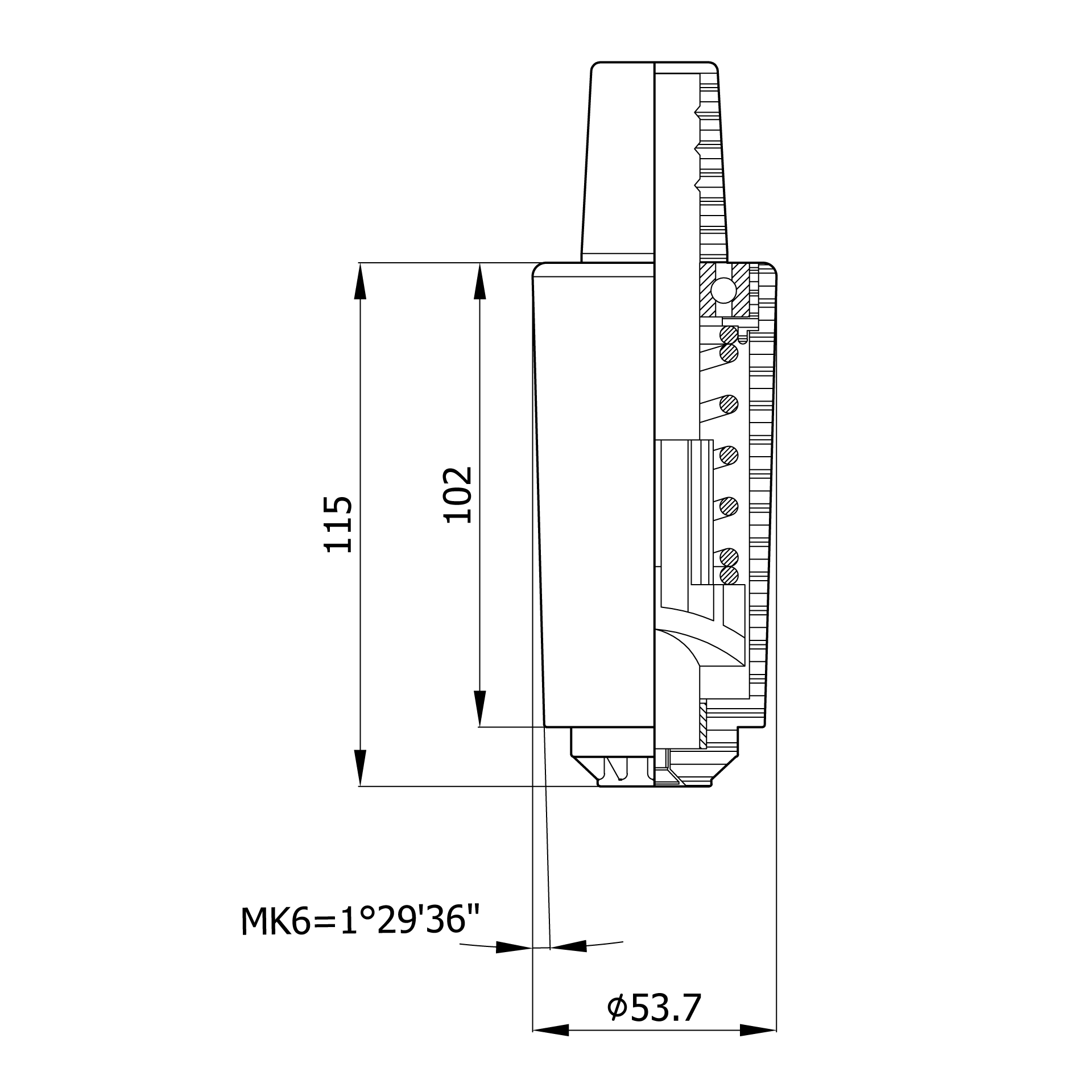

the whole swivel body (102mm) needs the support of a metal tube (or equal support)
Ask for our assembly instructions

Download printer-friendly product sheet

Read here by clicking above or download from the link below.
Patron swivel - product sheet [pdf] [87.7 kB]
