Easy swivel
-
Product Information

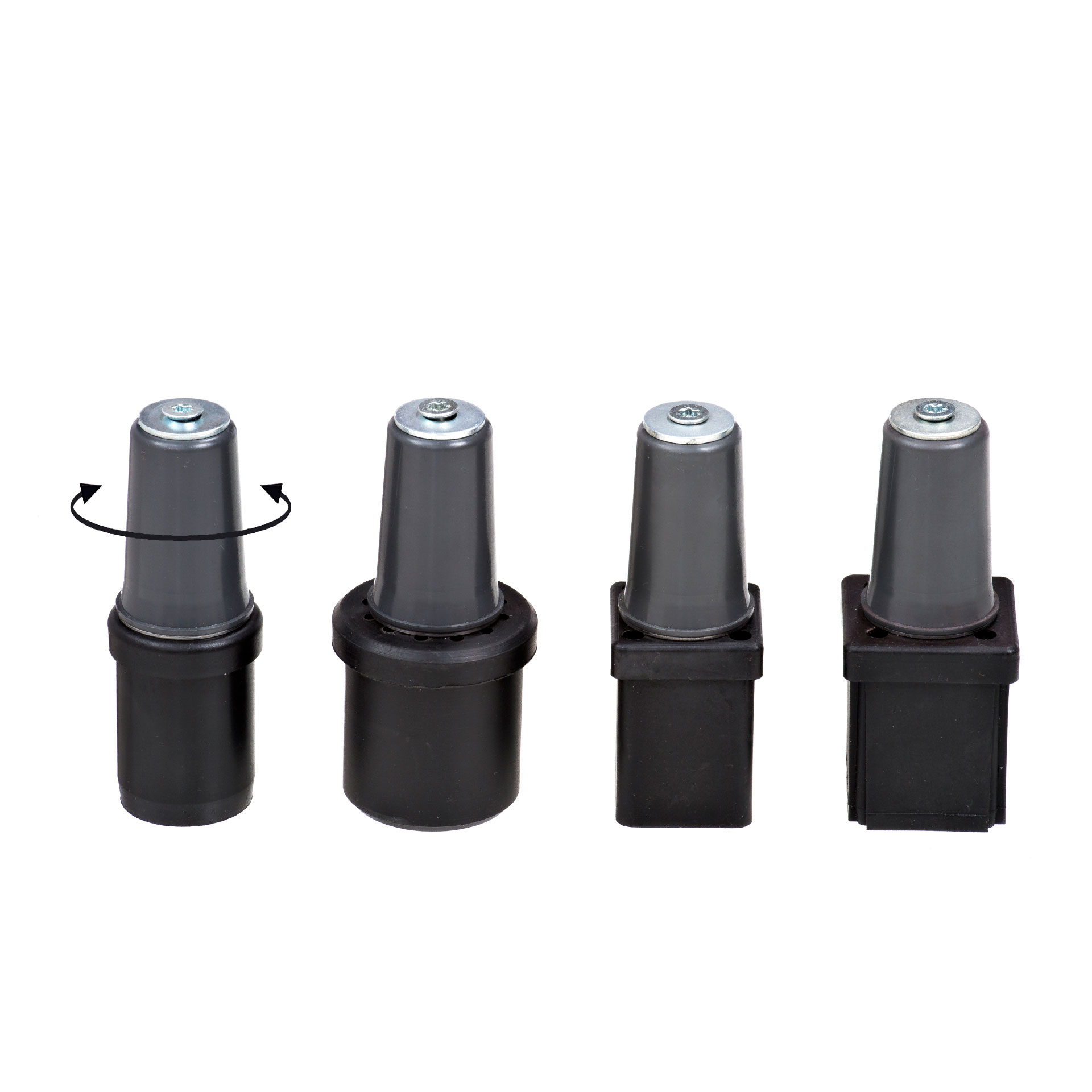

Swivel with function (rotation) inside the Eurocone.
-
Name
Easy swivel, rotation ˃360°

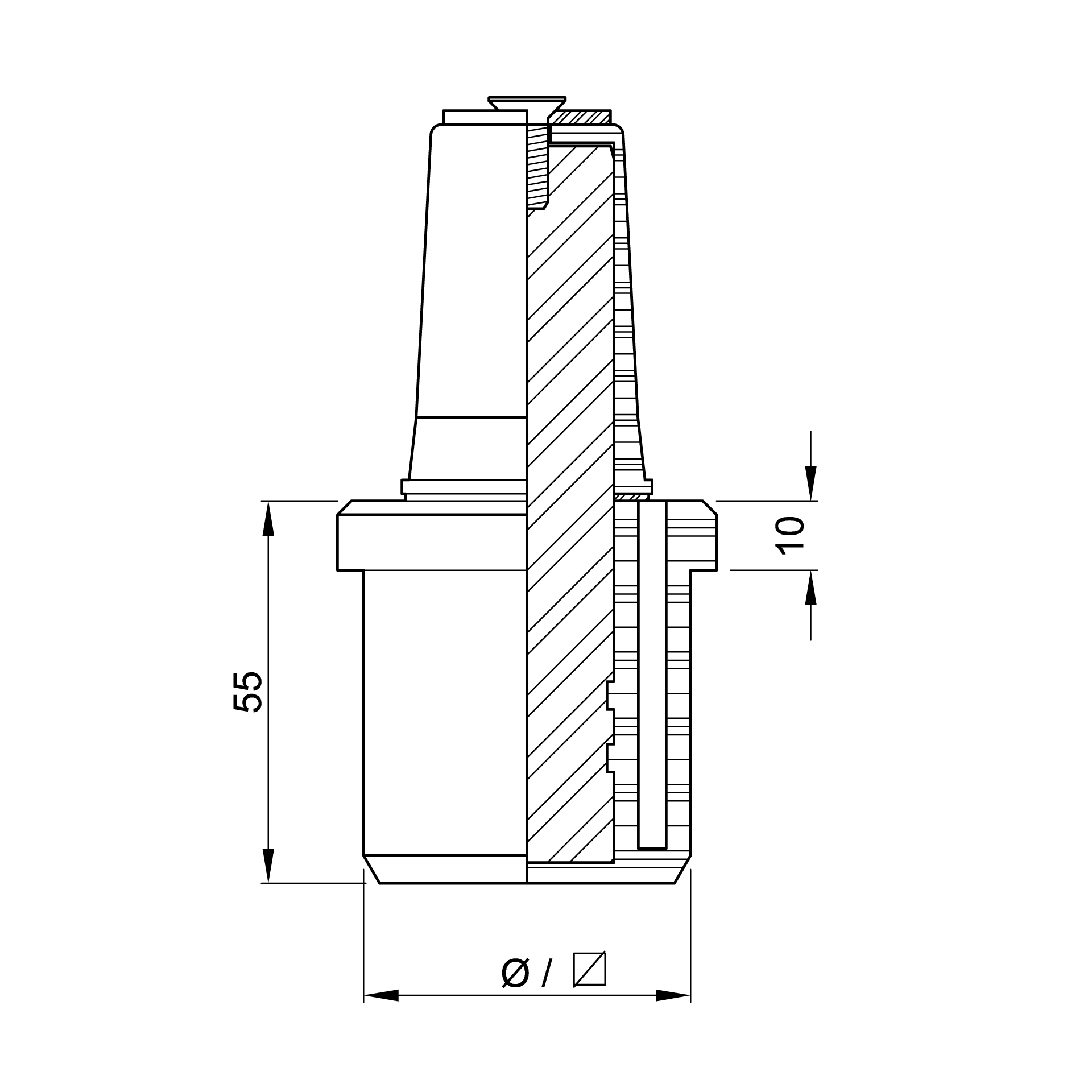

Model [mm] Pipe dim. [mm] Product code Round Ø47,4 50,8*1,5/2,0 411 508-EC Square □40*40*1,5/2,0 414 400-EC Square □45*45*1,5/2,0 414 450-EC Round Ø 40.0*2,0 411 400-EC Height for all swivel bodies is 55mm.
Specifications
Material: metal and composite
Color: black
Surface: no structure
Cone: Eurocone
Patented
Options
Swivel can be delivered with Eurocone unassembled, and/or also with whole swivel ready assembled in a metal tube.
Also available with Piccolo body 550 000-EC
Also available for outdoor use
-
-
Inspiration and Assembling
Assembling instructions

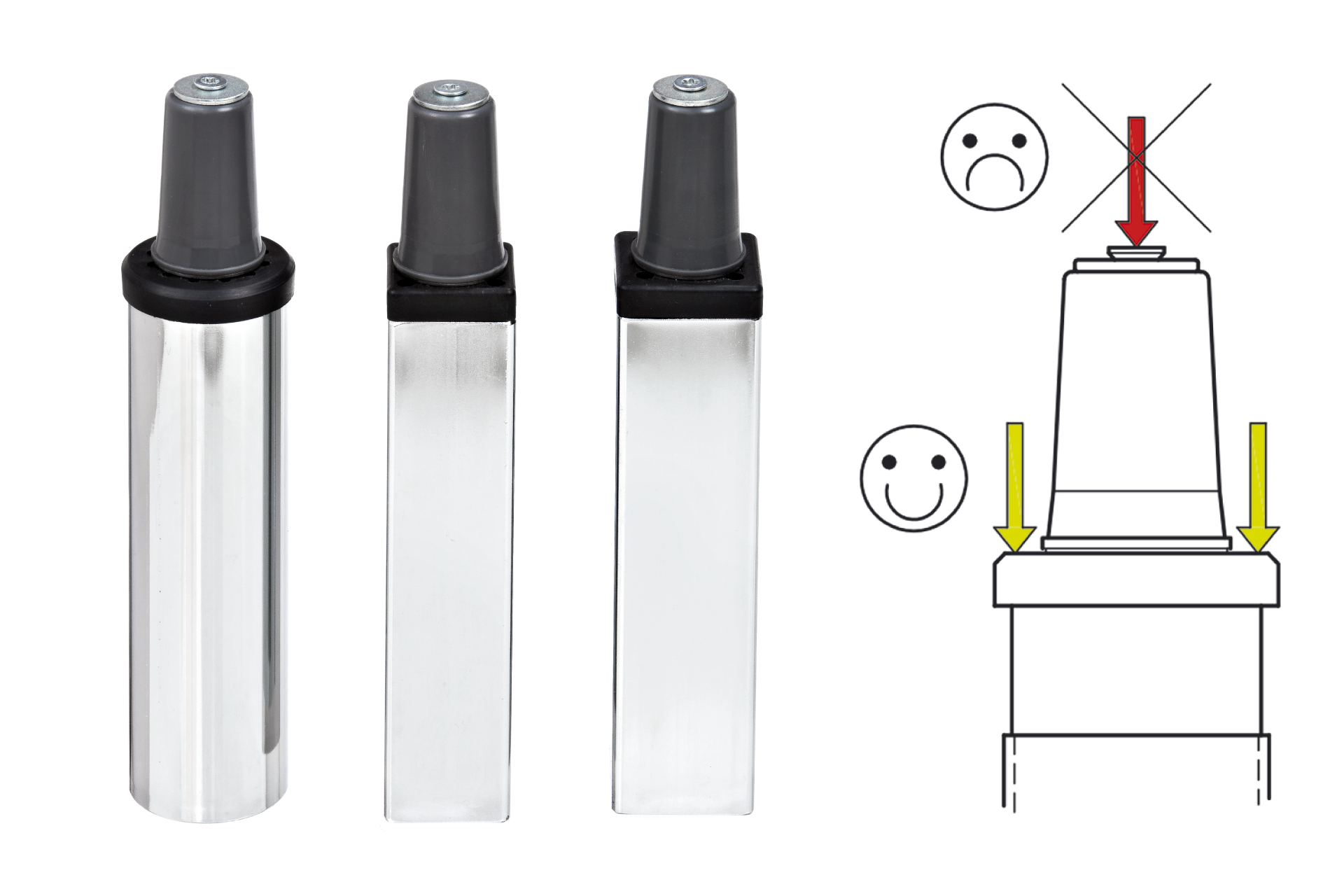

Swivel body is to be pressed into a cylindrical- or square metal tube. Please see sketch above. Please do not press on the Eurocone!
Minimum tube length for tapered bottom is 82mm
Download printable document (.pdf)
Read here by clicking above or download from the link below.
Easy swivel - product sheet [pdf] [86.1 kB]Easy swivel - product sheet [pdf] [88.7 kB]
-

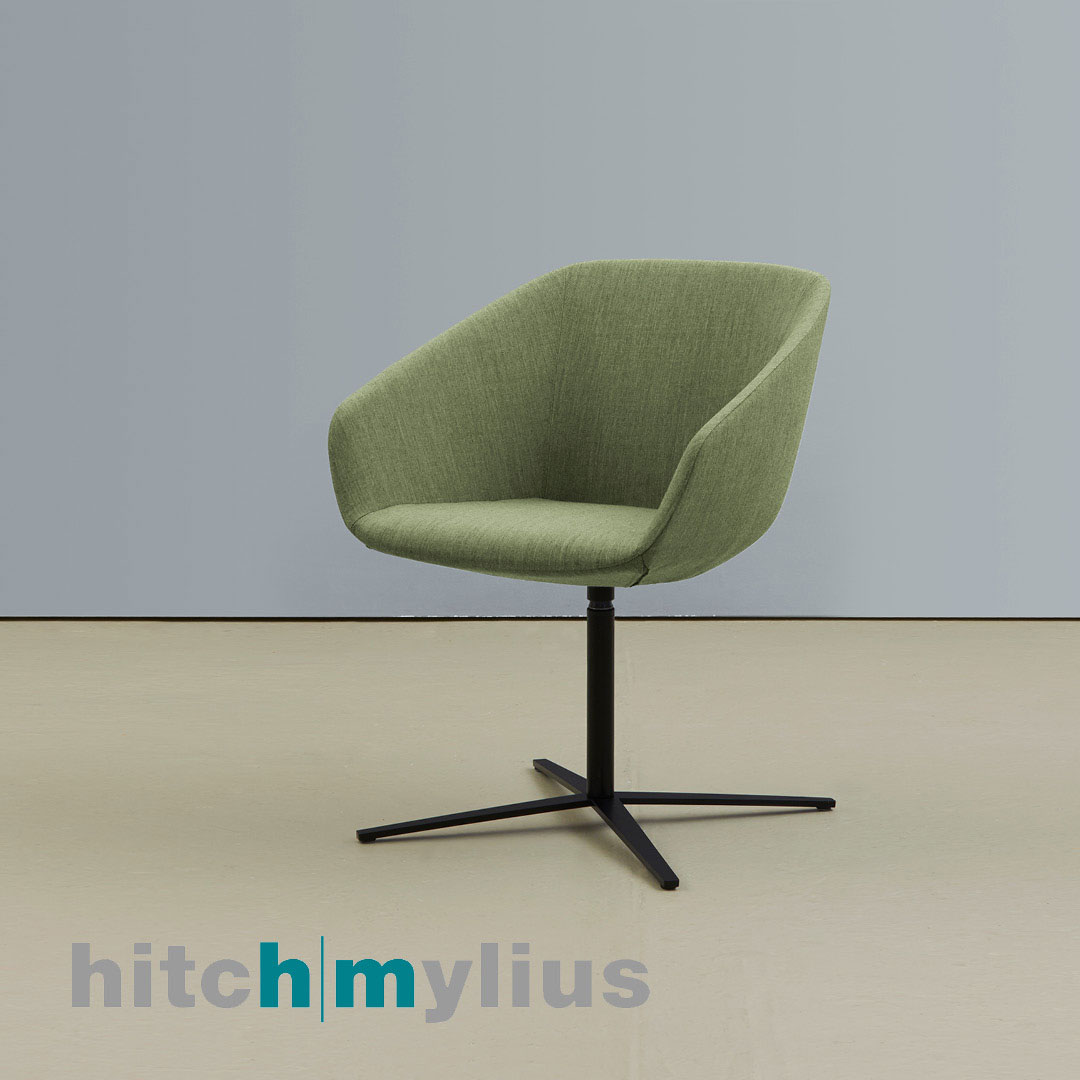

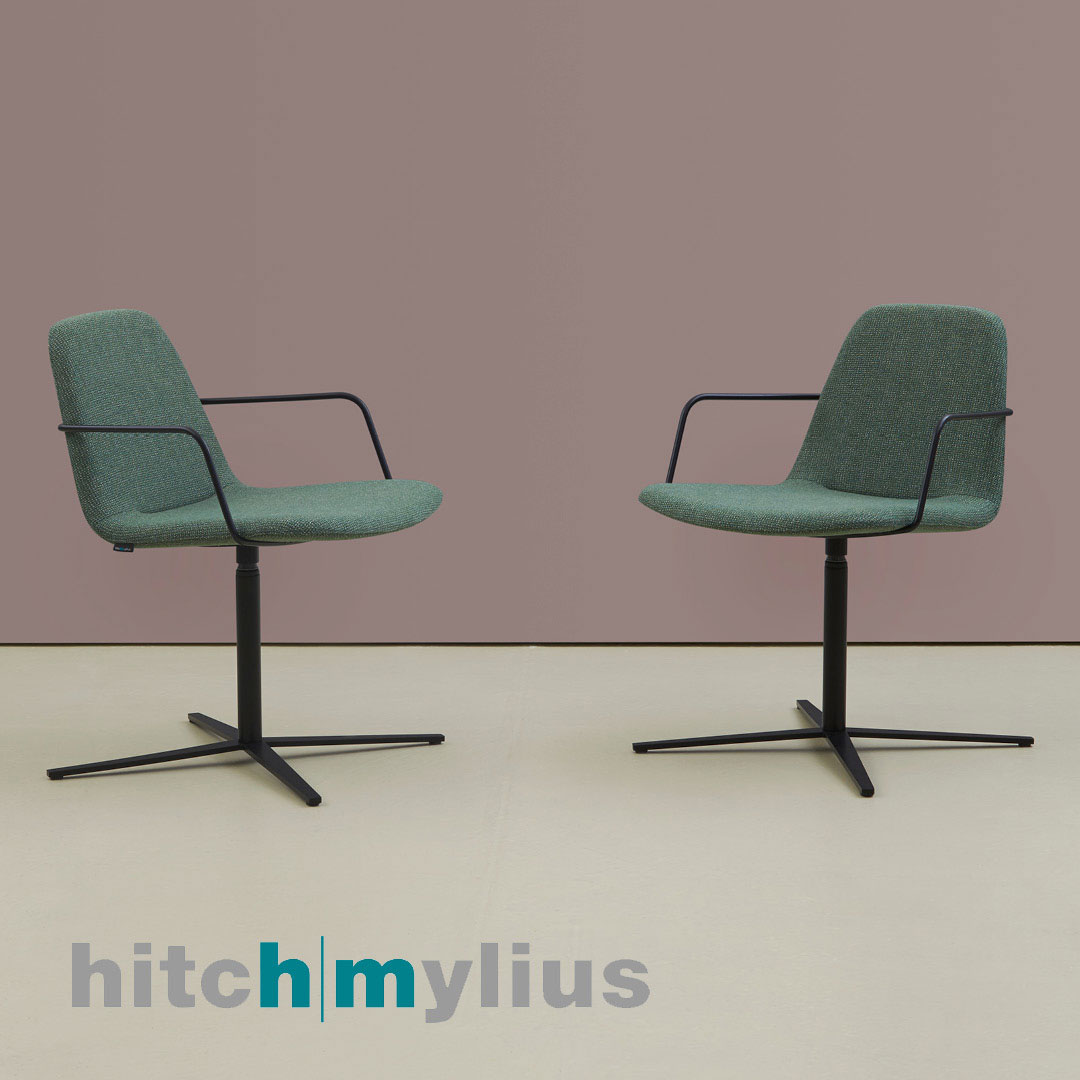

Gallery
