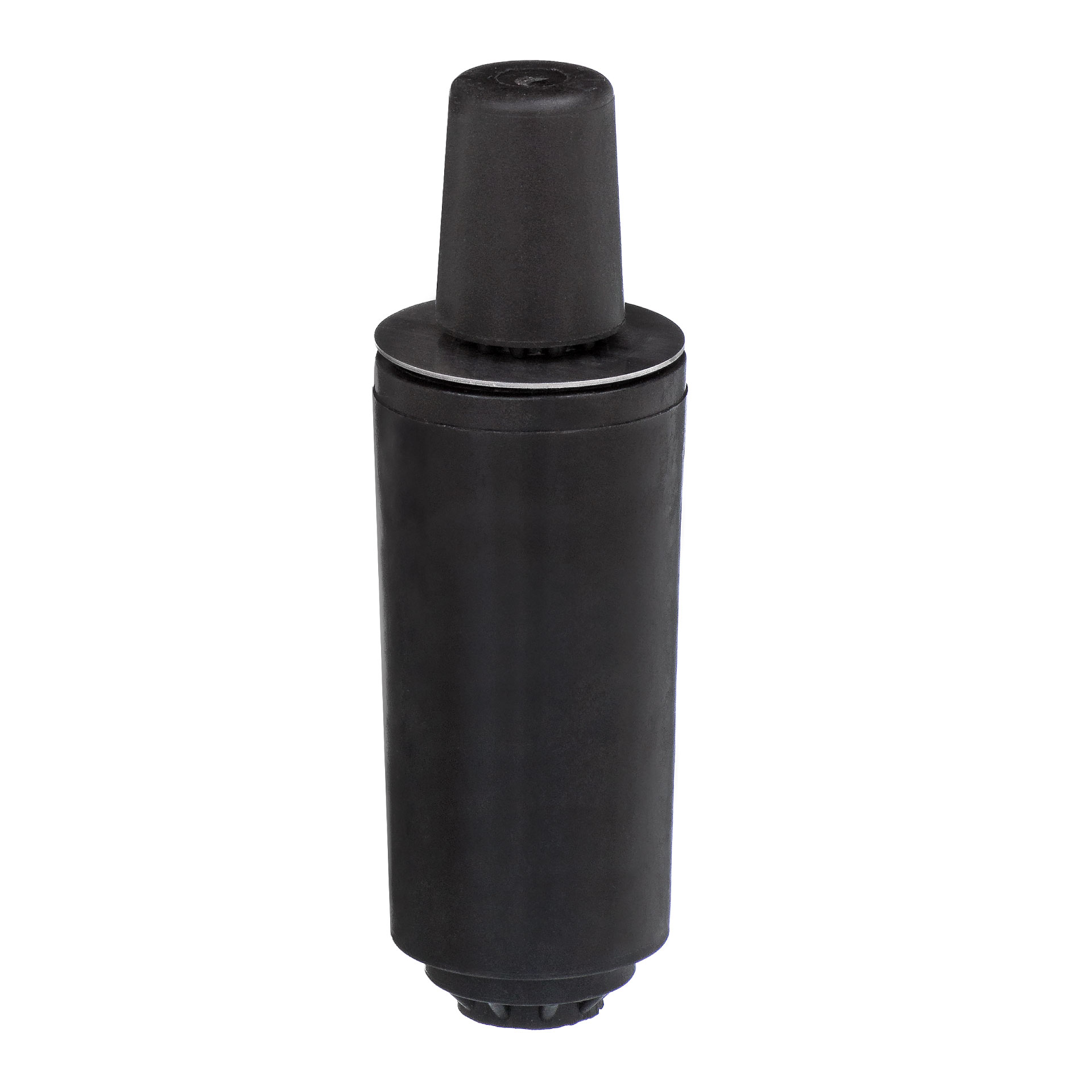

Patron Release swivel

Product Information

Automatic return swivel with release fuction.
Swivel with automatic return mechanism, adaptable for conical metal tube Ø50-Ø50.8mm.
- Name

  Patron Release swivel automatic return ˃360°
- Product code

  351 000R
Specifications

Material: metal and composite
Color: black
Patented function
REACH-compliant and part of Svanen-labelled furniture pieces
Release of auto-return function at approx. 35kg weight

Options

Cone
- Other cones available on request!
High precision cam

Video

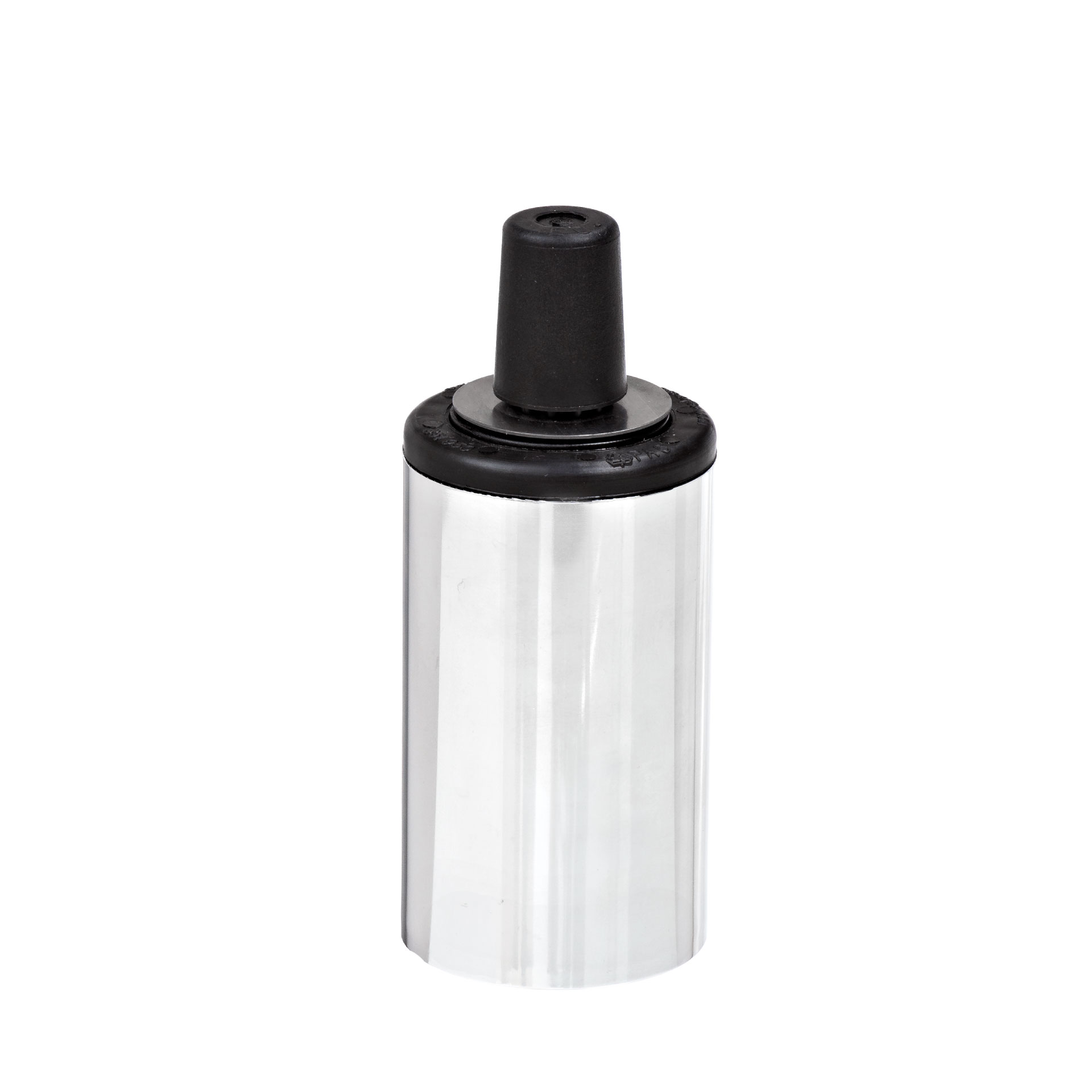

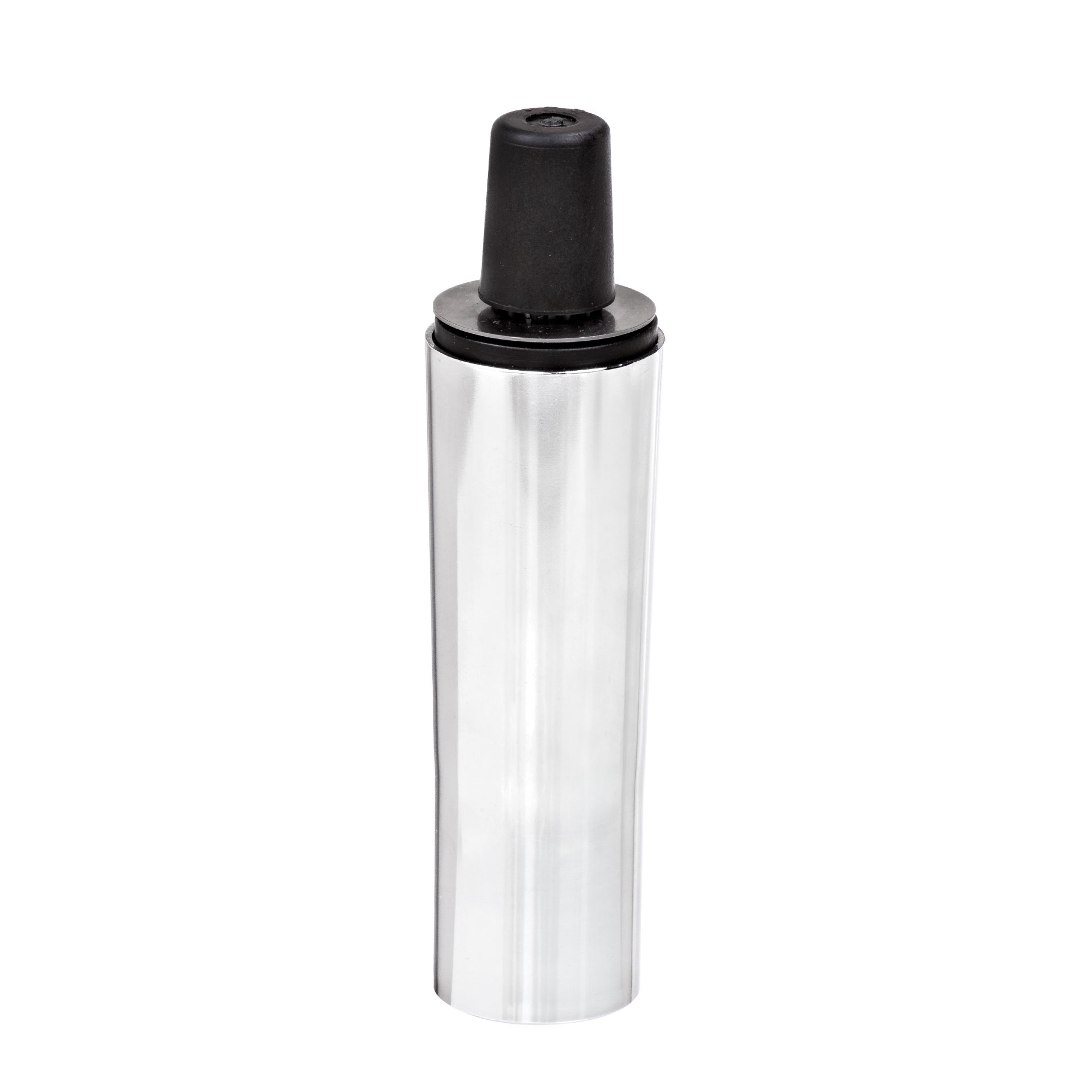

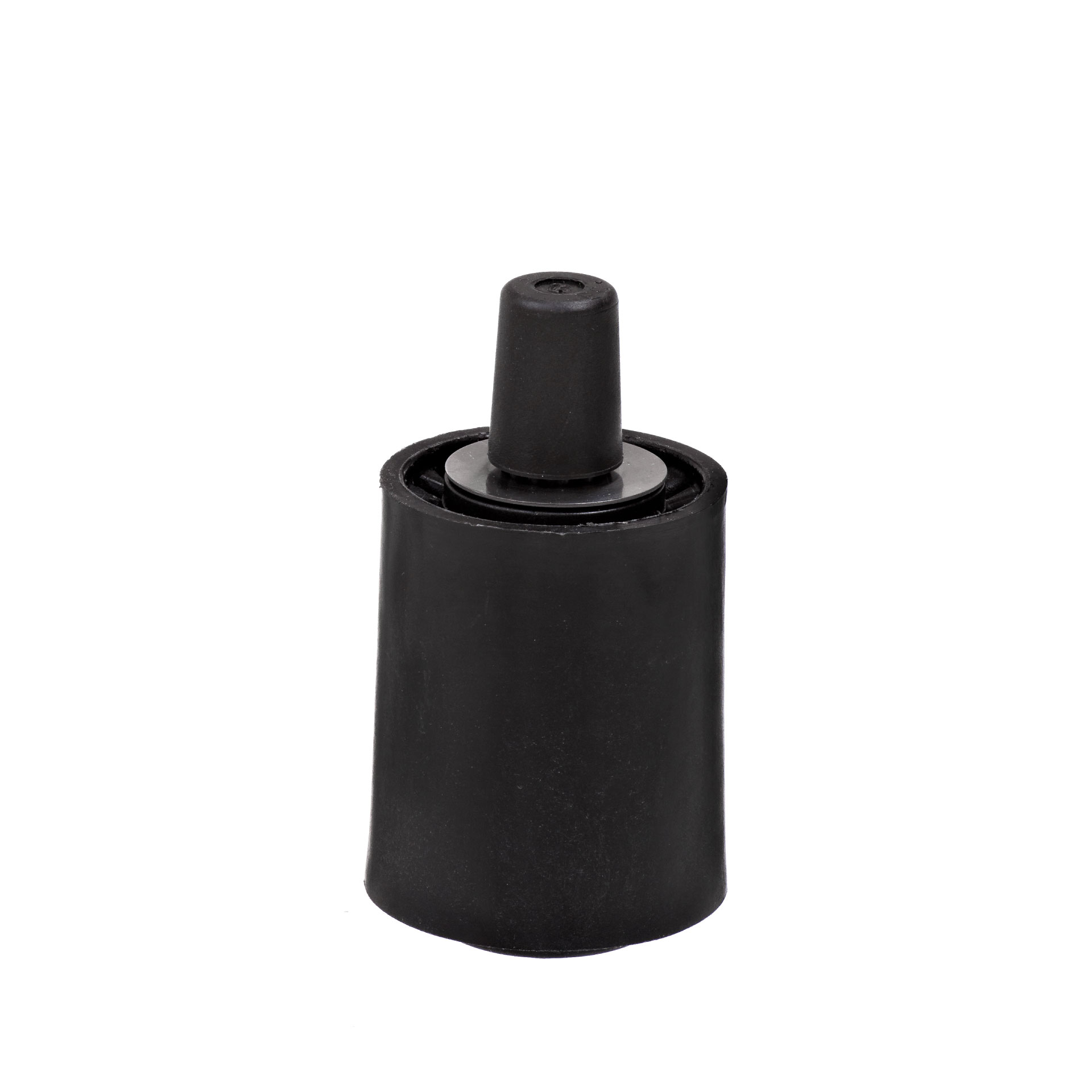

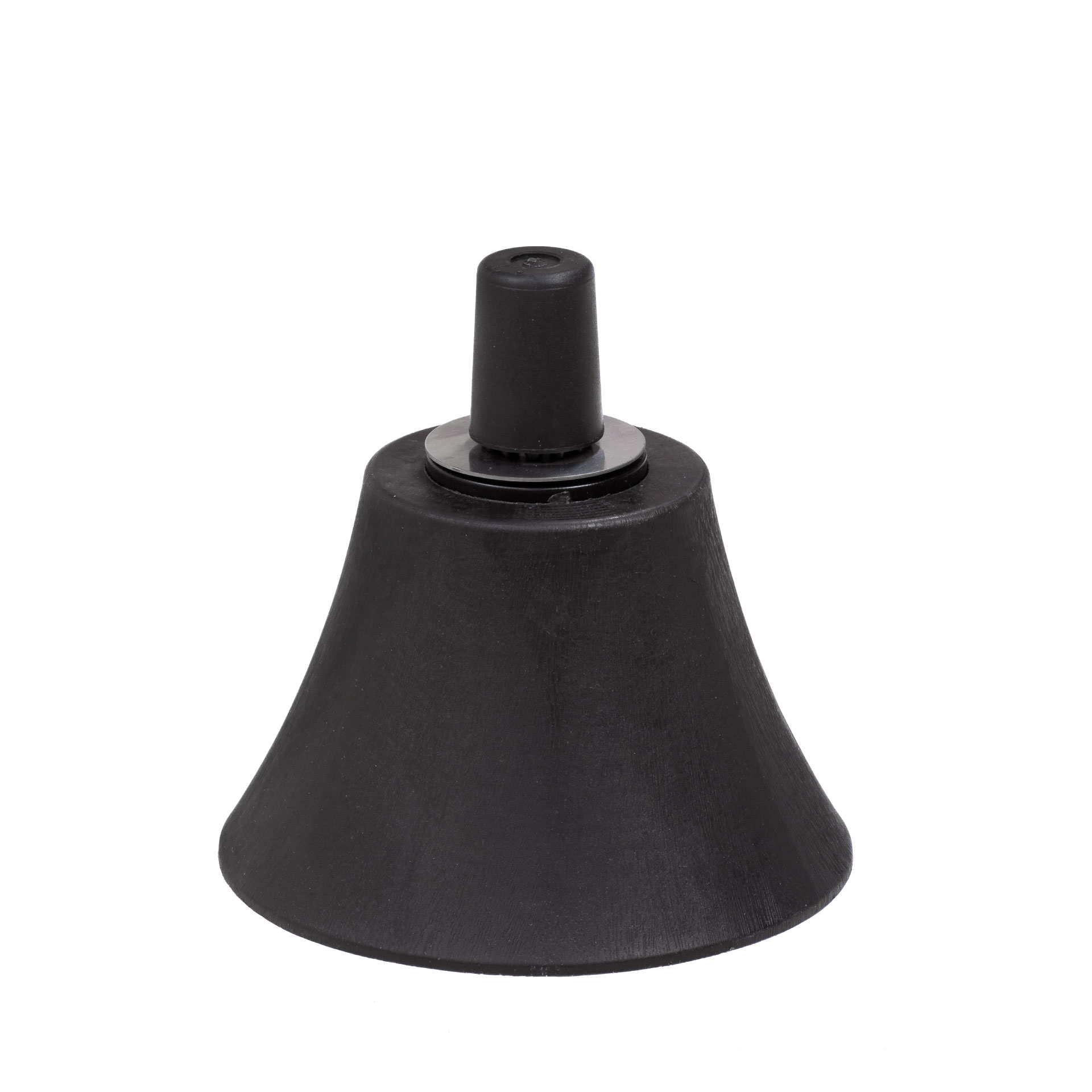

Inspiration and Assembling

Assembling instructions

swivel is to be assembled in a conical metal tube

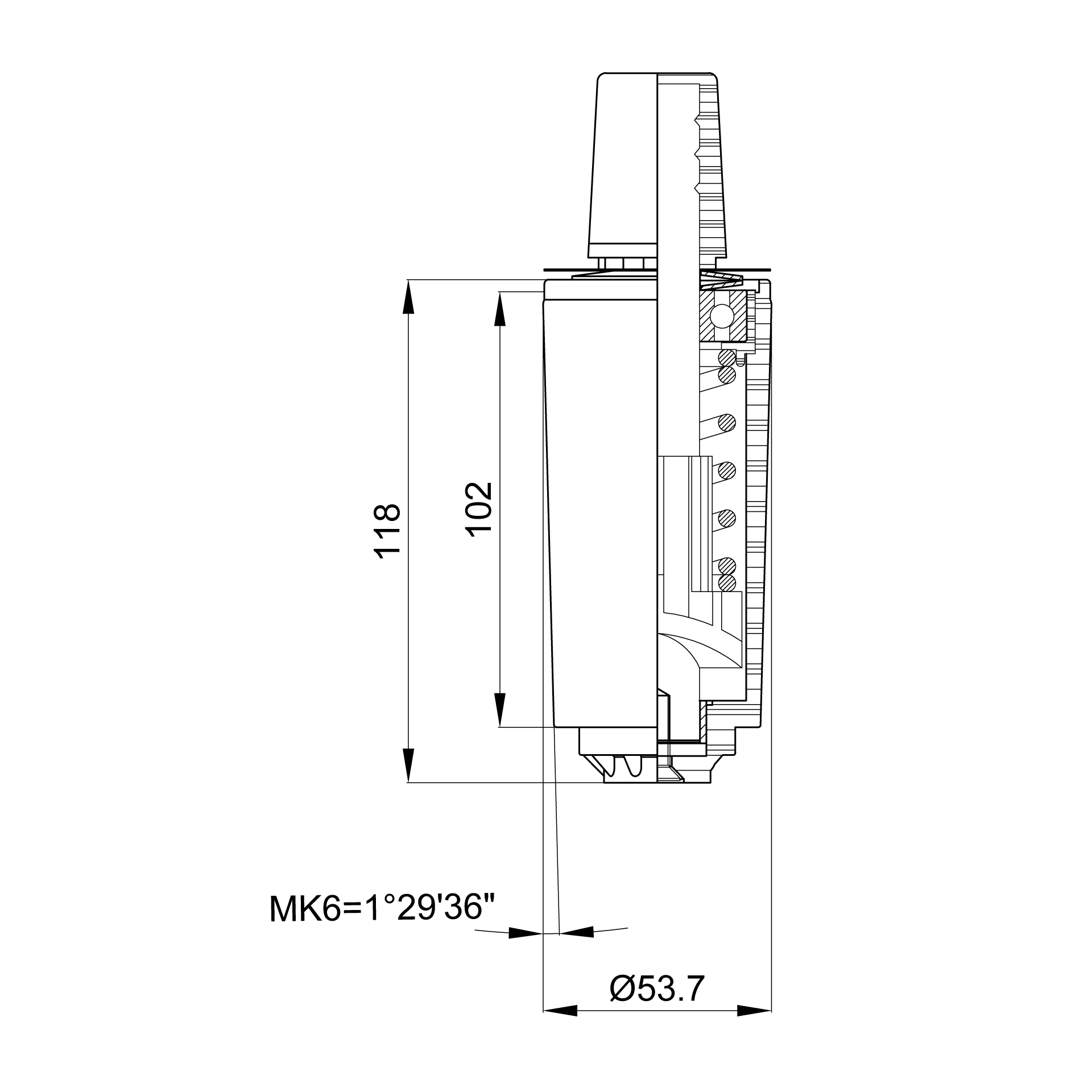

the whole swivel body (102mm) needs the support of a metal tube (or equal support)
Patron Release could be combined with Patron column, Cylindo column and Cornet column
Ask for our assembly instructions

Download printer-friendly product sheet

Read here by clicking above or download from the link below.
Patron Release swivel - product sheet [pdf] [81.8 kB]
