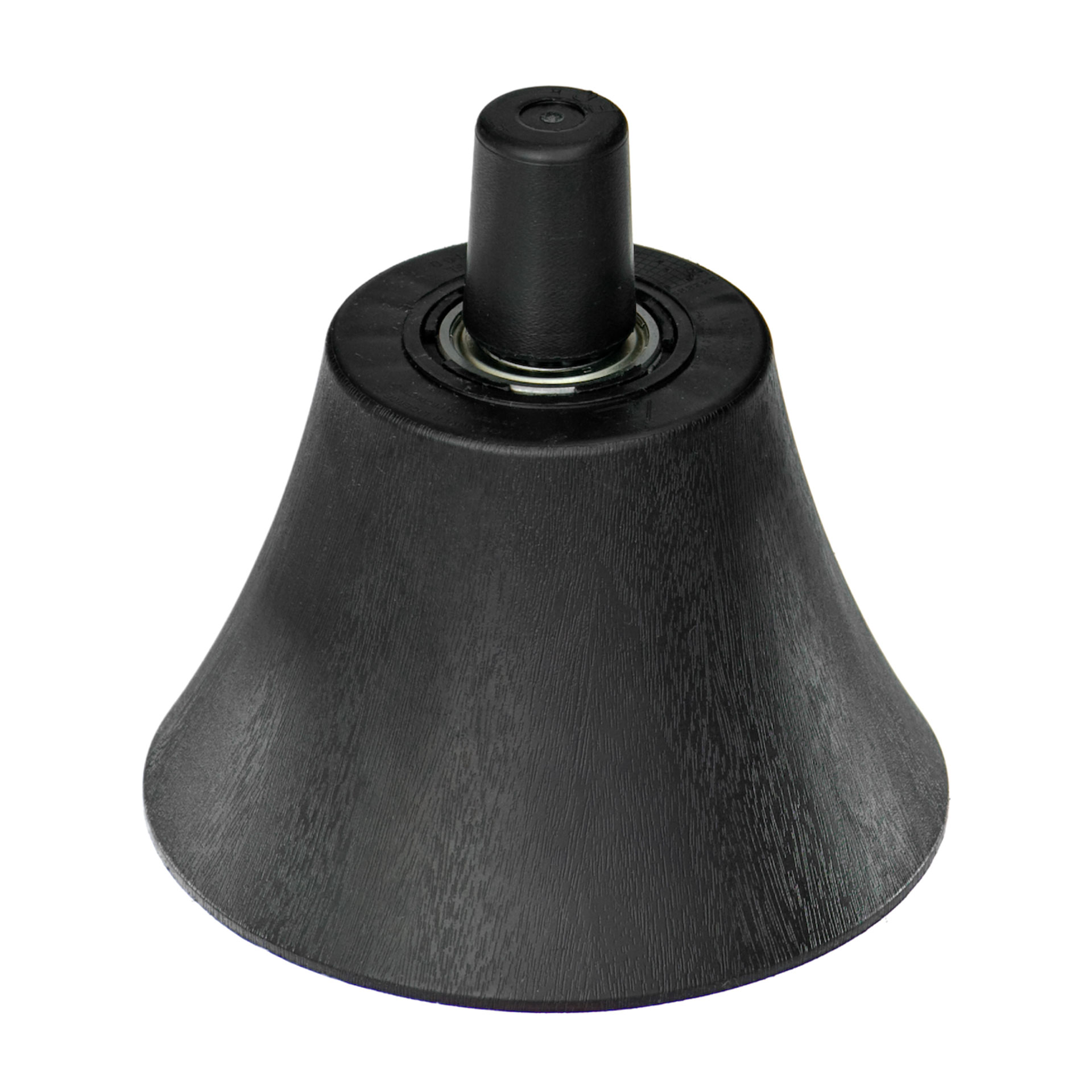

Cornet swivel
-
Product Information
Swivel available with automatic return mechanism.
-
Cornet swivel, with automatic return 360°

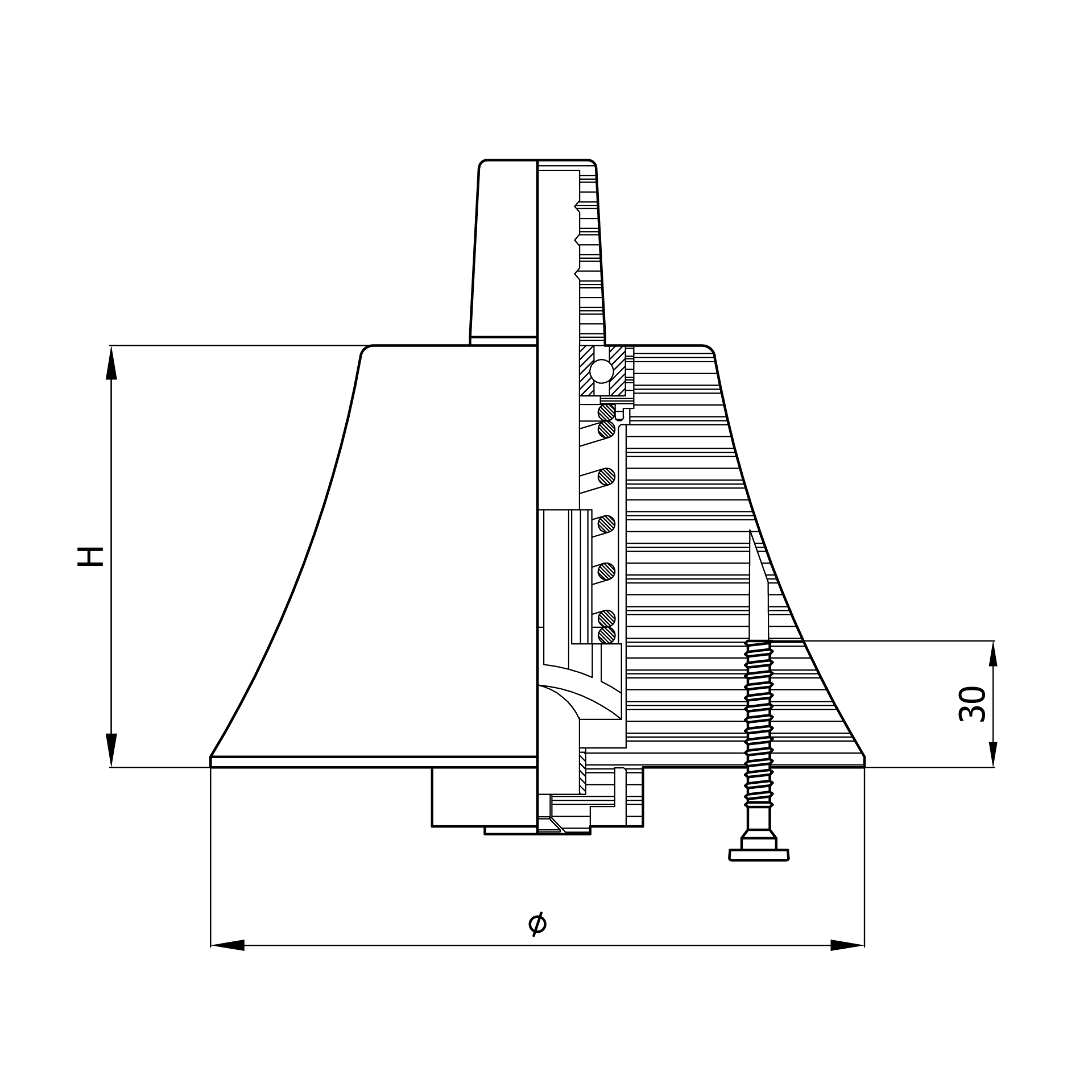

Height [mm] Ø [mm] Product code 75 154 440 075 * 100 154 440 100 125 172 440 125 -
Cornet swivel, rotation 360°
Height [mm] Ø [mm] Product code 75 154 450 075 * 100 154 450 100 125 172 450 125 Note! Center of base for this swivel model must be min. 45mm high.
Specifications
Material: metal and composite
Color: black
Surface: wooden structure (imitation)
Screws: included
Patented
Options
Cone
- Other cones available on request!
Automatic return function: light, medium or heavy
Also available with release function on auto-return mechanism
High precision cam
Video
-
-

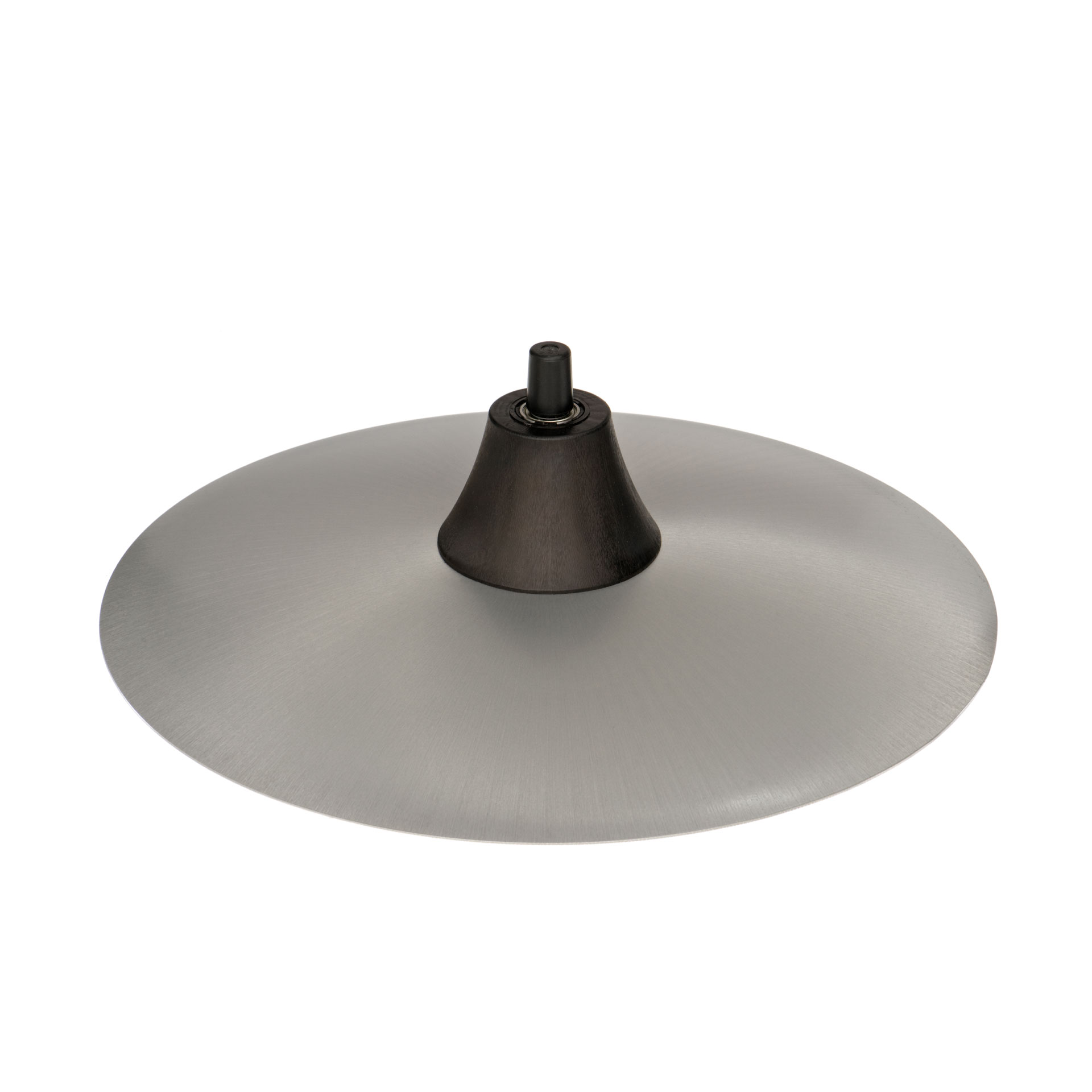

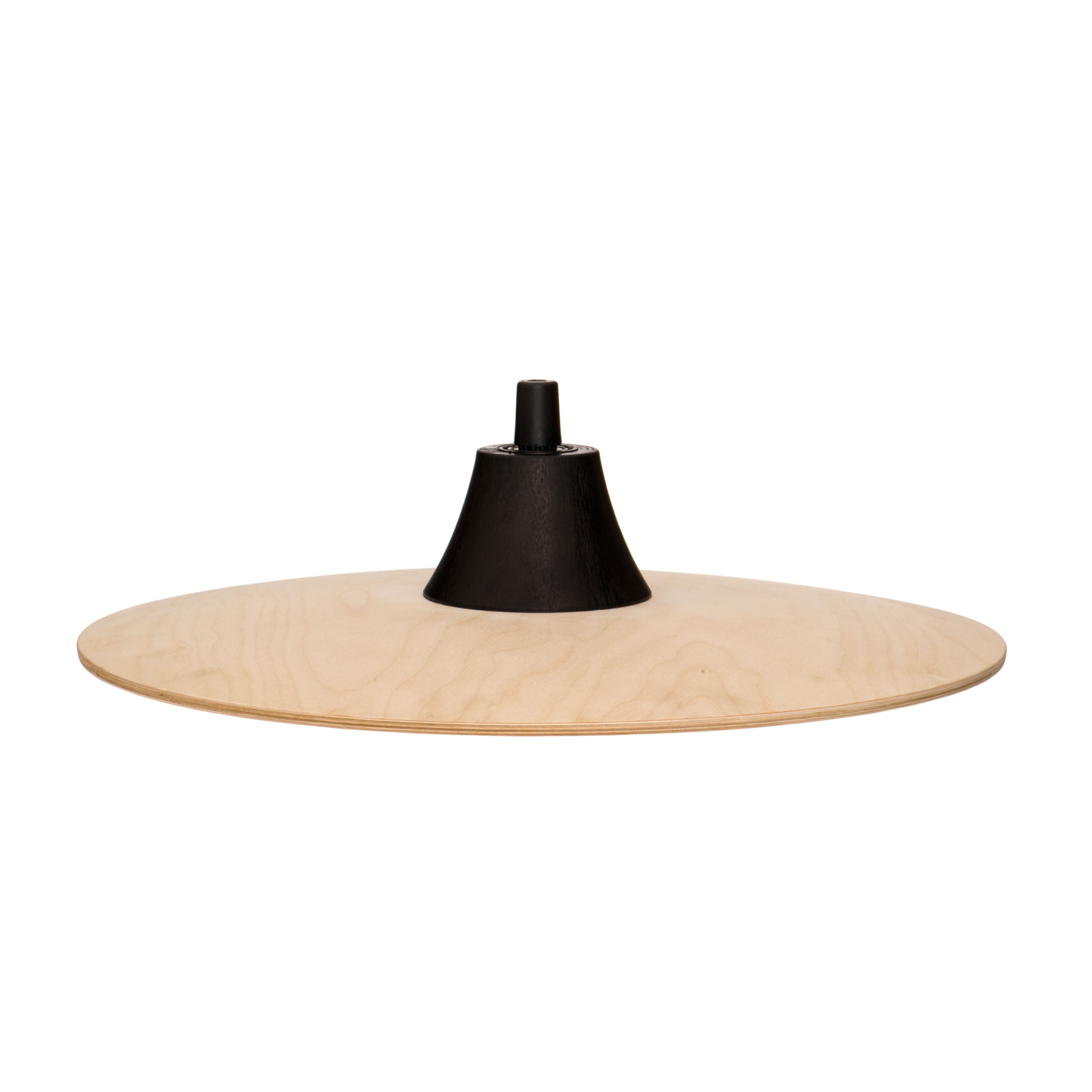

Inspiration and Assembling
Assembling instructions
Swivel to be assembled to chair base with 6pcs Mekrapid screws 6,5*50, insex 5mm (exception: 75mm high Cornet requires normal wooden screws 6.0*50mm)
Hole pattern for swivel, Ø 104,0, 6pcs
Download printer-friendly product sheet
Read here by clicking above or download from the link below.
Cornet swivel - product sheet [pdf] [106.9 kB]
-
