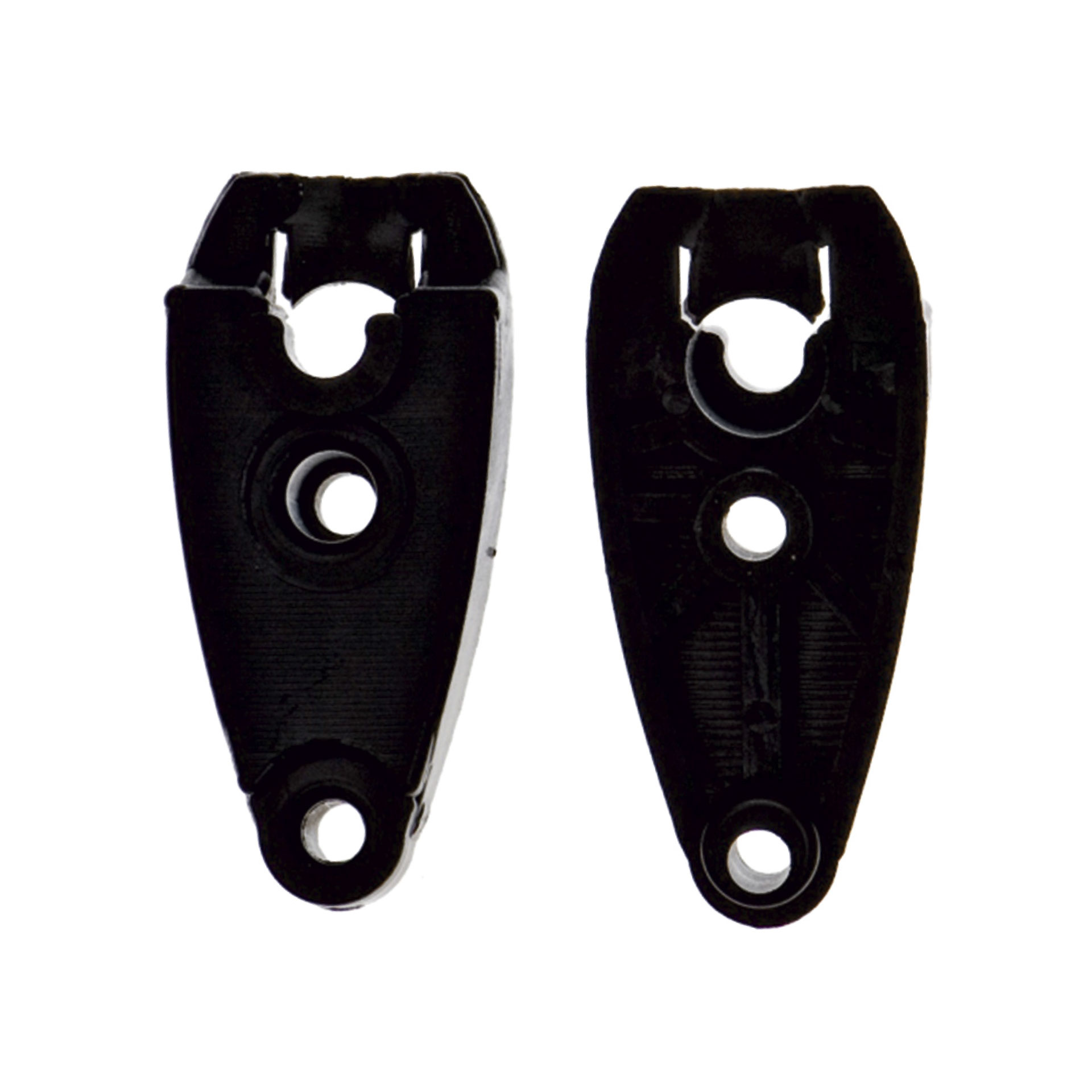

Formula hinge
Formula hinge, for assembling to vertical frame component
-
-
Available as
-
Name
Product Code
Available As
-
hinge set
368 100
-
hinge set incl. screws
368 100-5
Specifications
Material: composite
Color: black
Technical Support
Assembling instructions

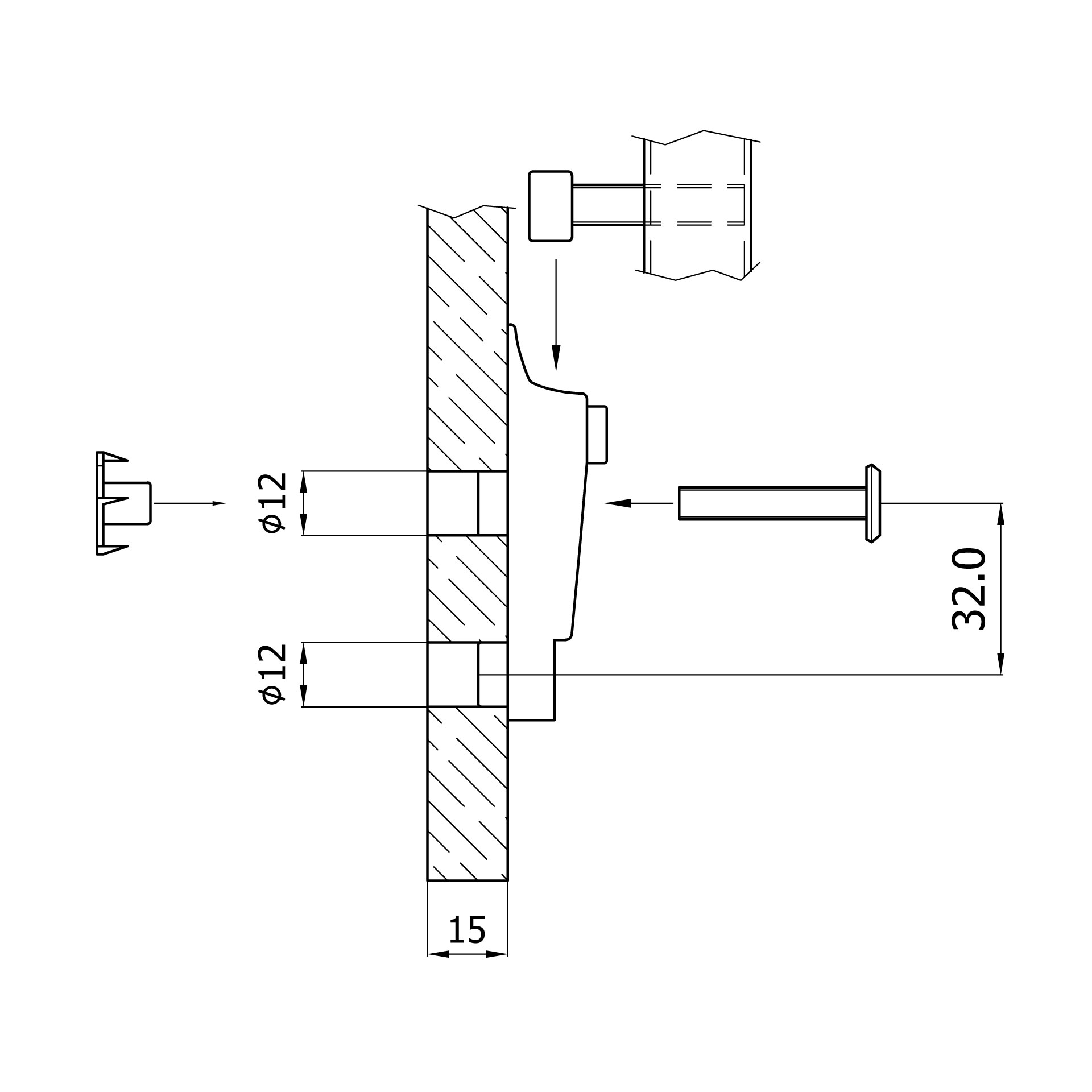

To be fastened to chair veneer frame with 1pc M6*35 and 1pc M6 Tee nut with pronges, and to metal frame with 1pc M8*35-60 DIN912.
