Rondo Swivel
-
Rondo

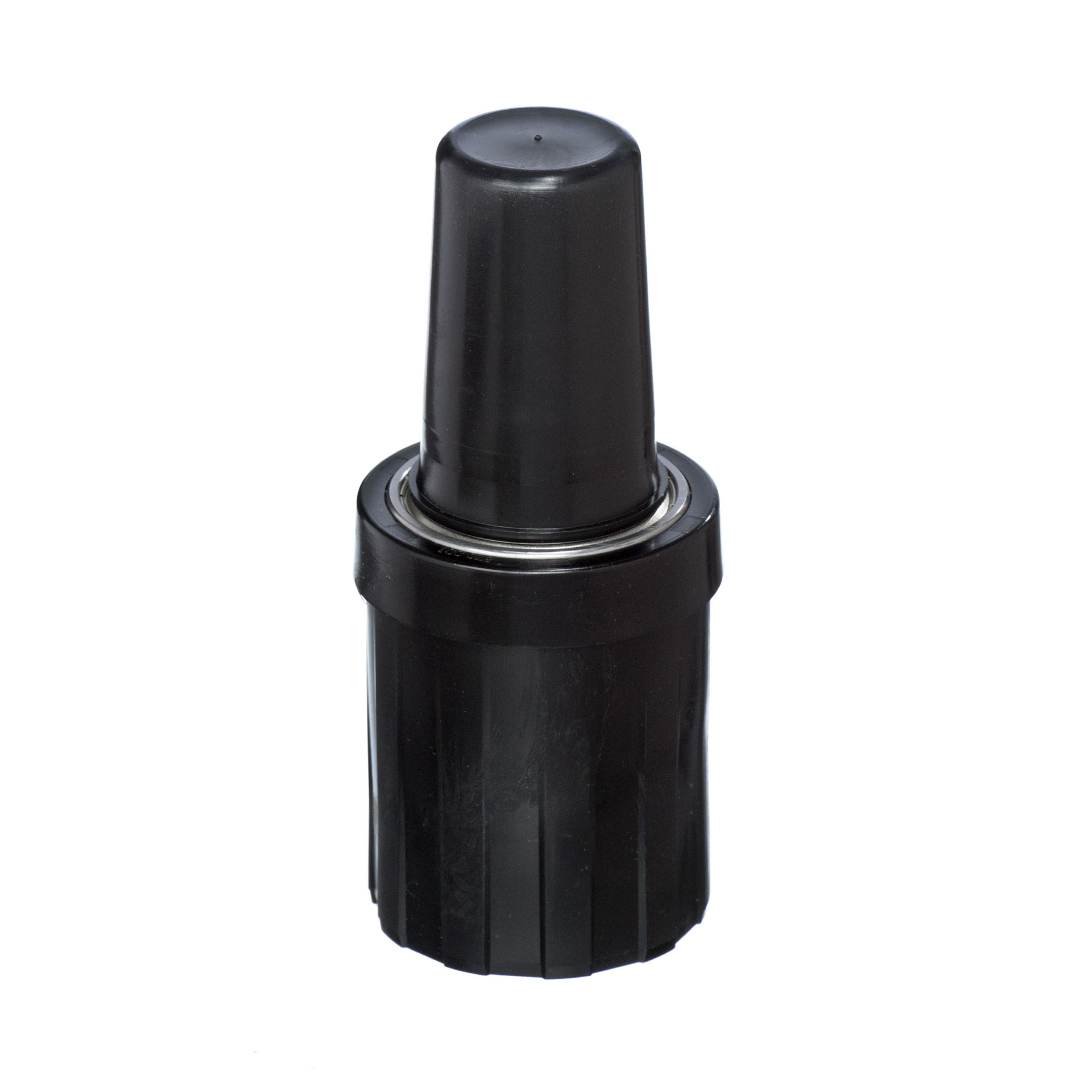

Rondo smart swivel provides durability and reliability easily integrated and pressed directly into a standard cylindrical metal tube of D50mm.
-
Available as
-
Name
Product Code
Available As
-
Rondo automatic return mechanism
870 001
Smart Swivel
Specifications
Material: metal, composite, POM.
Color: black
REACH-compliant
Auto return spring torque: 2,4 Nm
Options

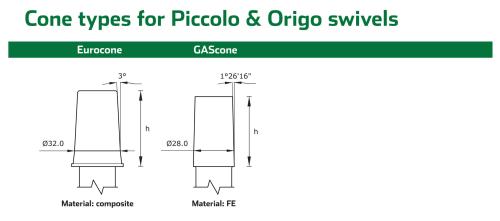

Cone
Other cones available on request
Technical Support

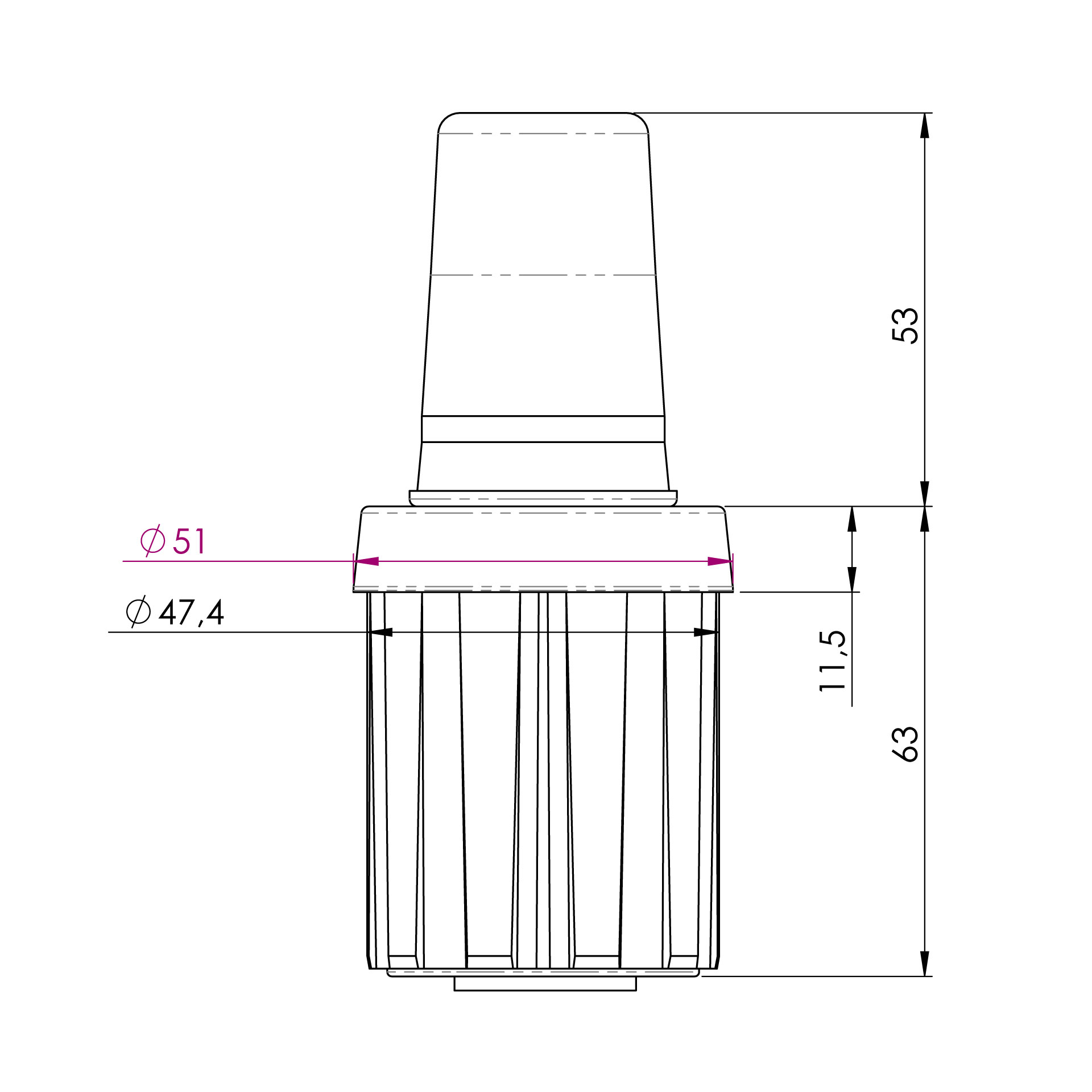

Swivel is to be pressed into cylindrical Ø50,8x2,00 or Ø50,0x1,50 tube.
Tube inner diameter maximum: 47,4 mm and minimum 46,9 mm.
Ask for assembly instructions.
