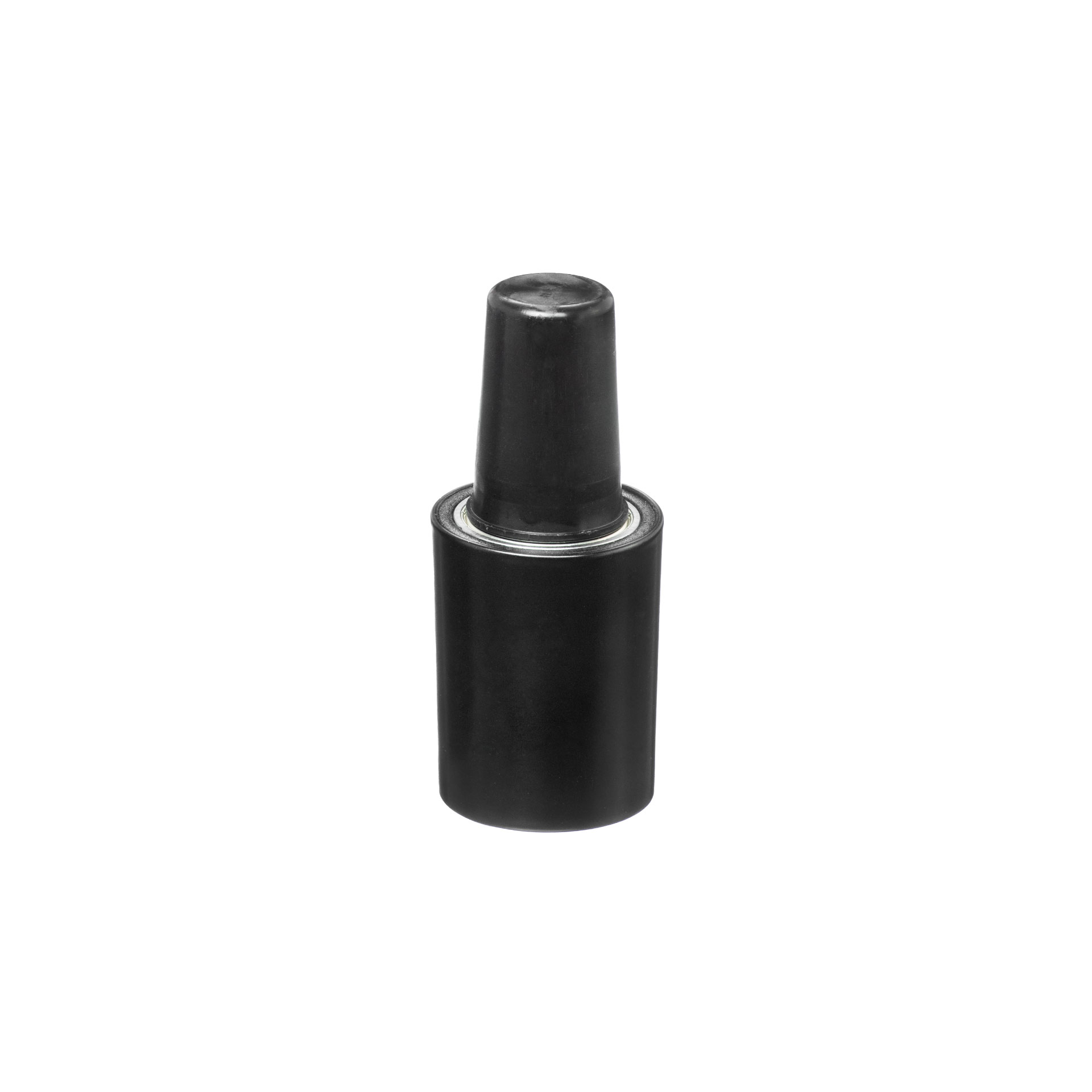

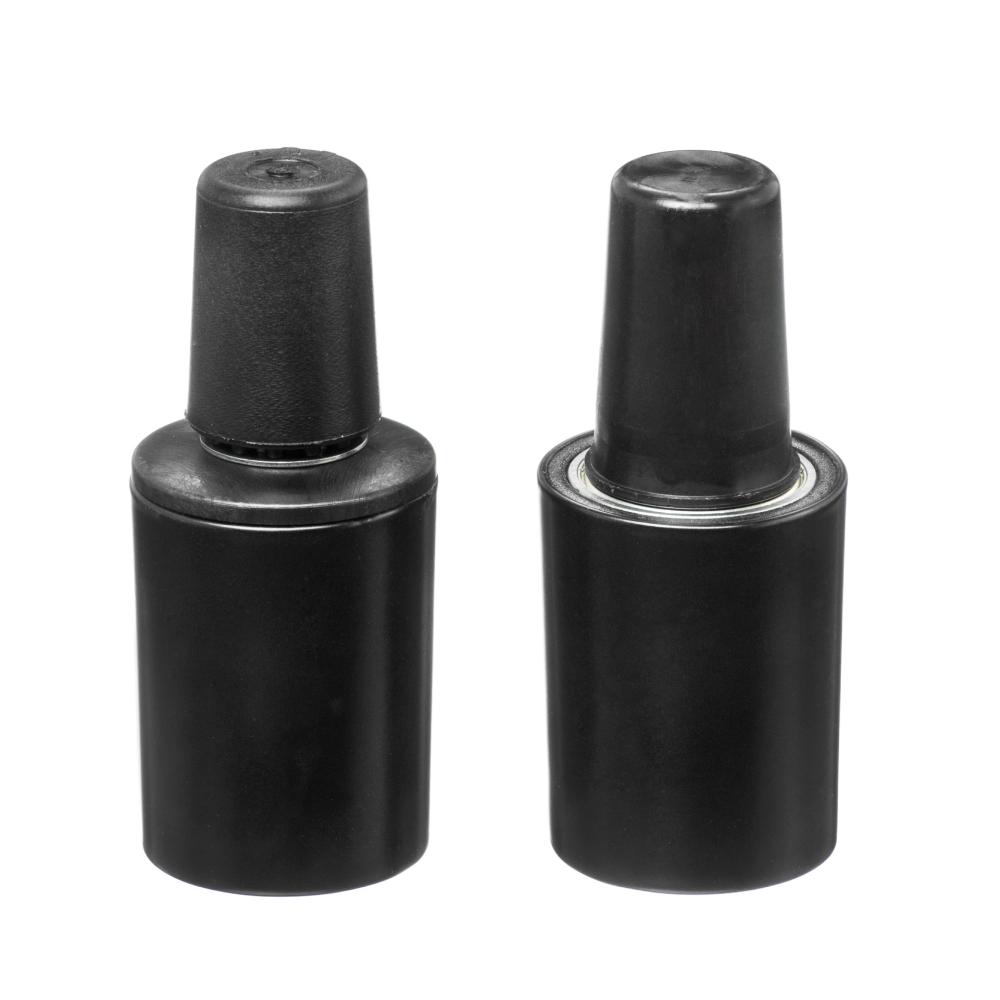

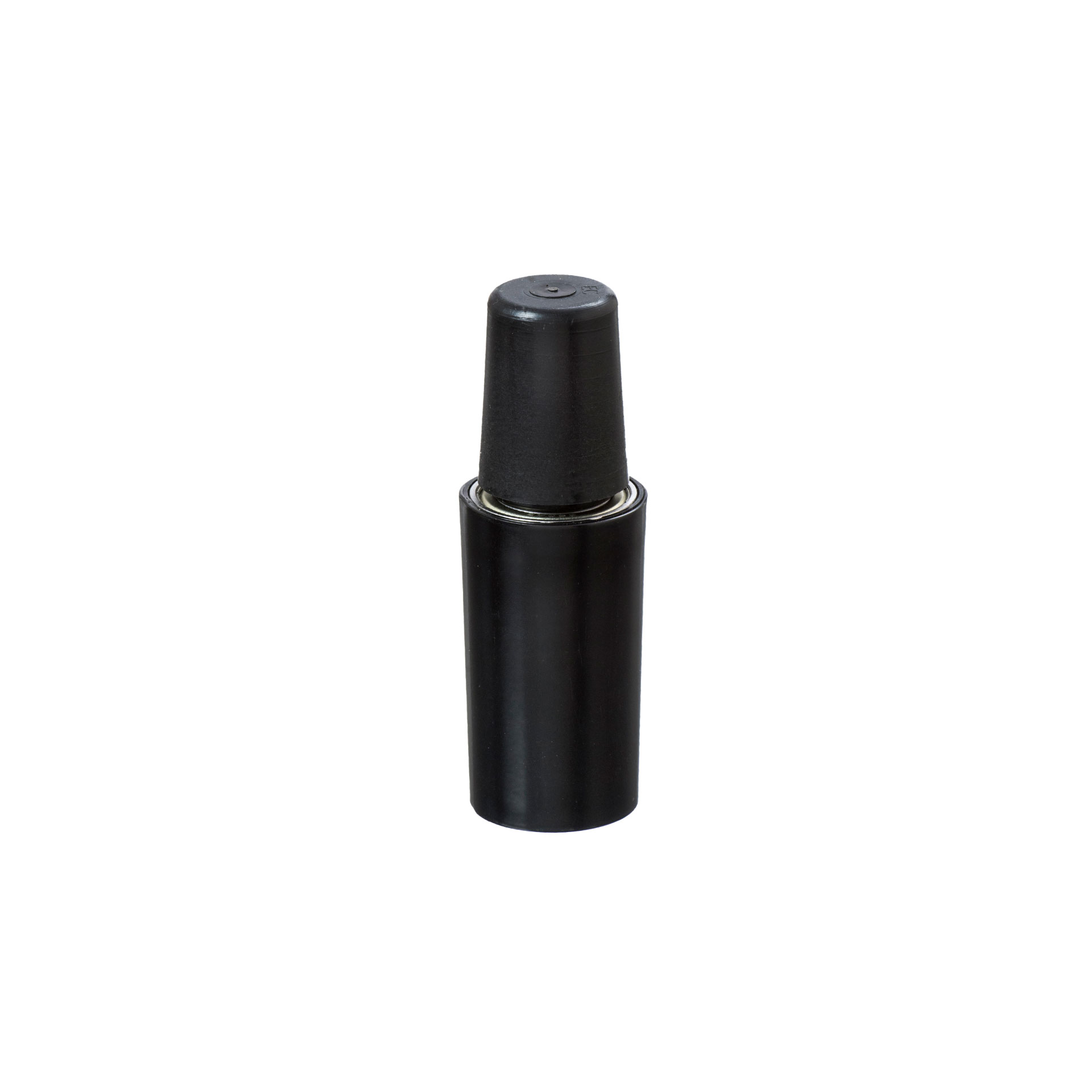

Origo swivel
-
Presenting New Members in the Origo Swivel Family

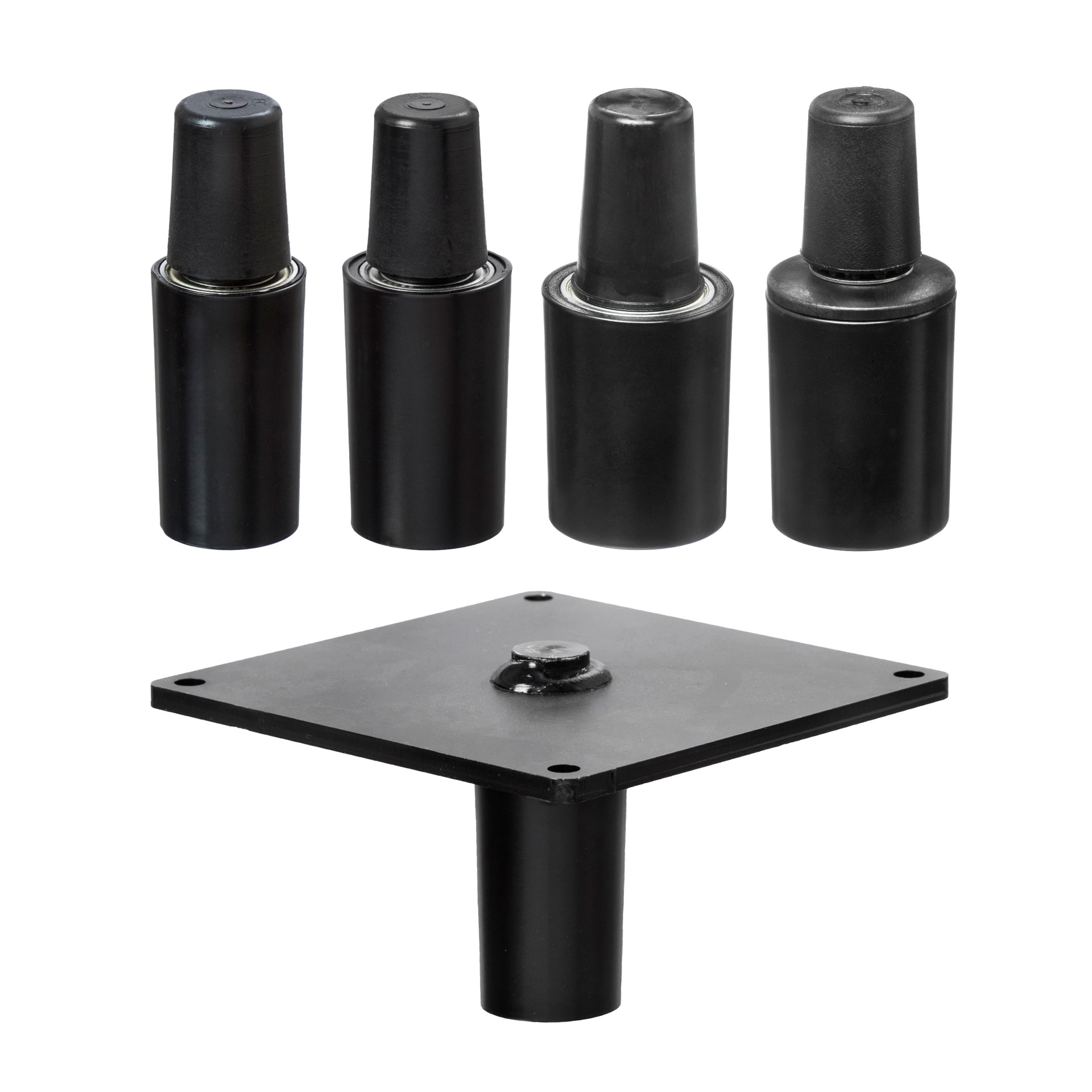

Our Smallest Chair Swivels with New Connection Option

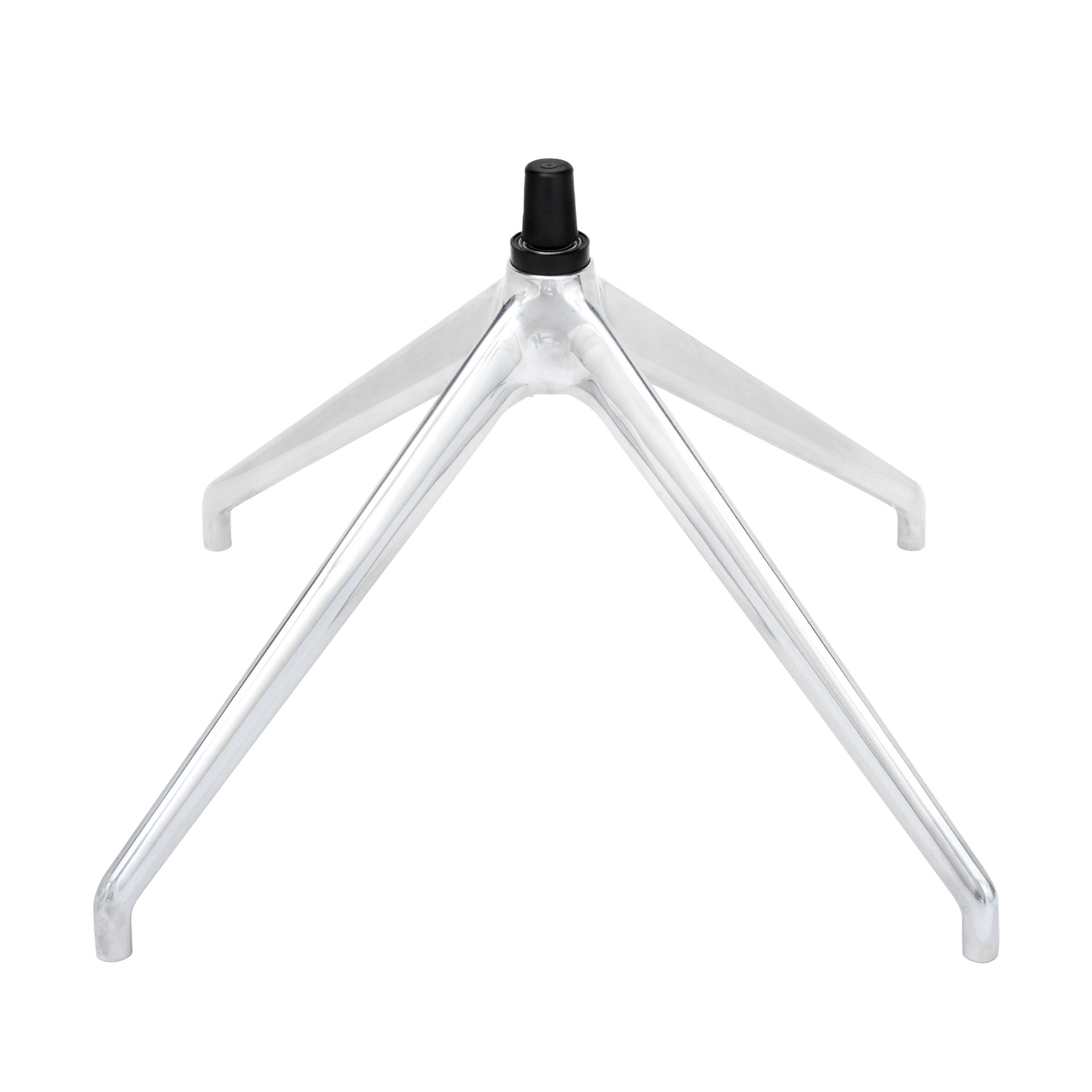

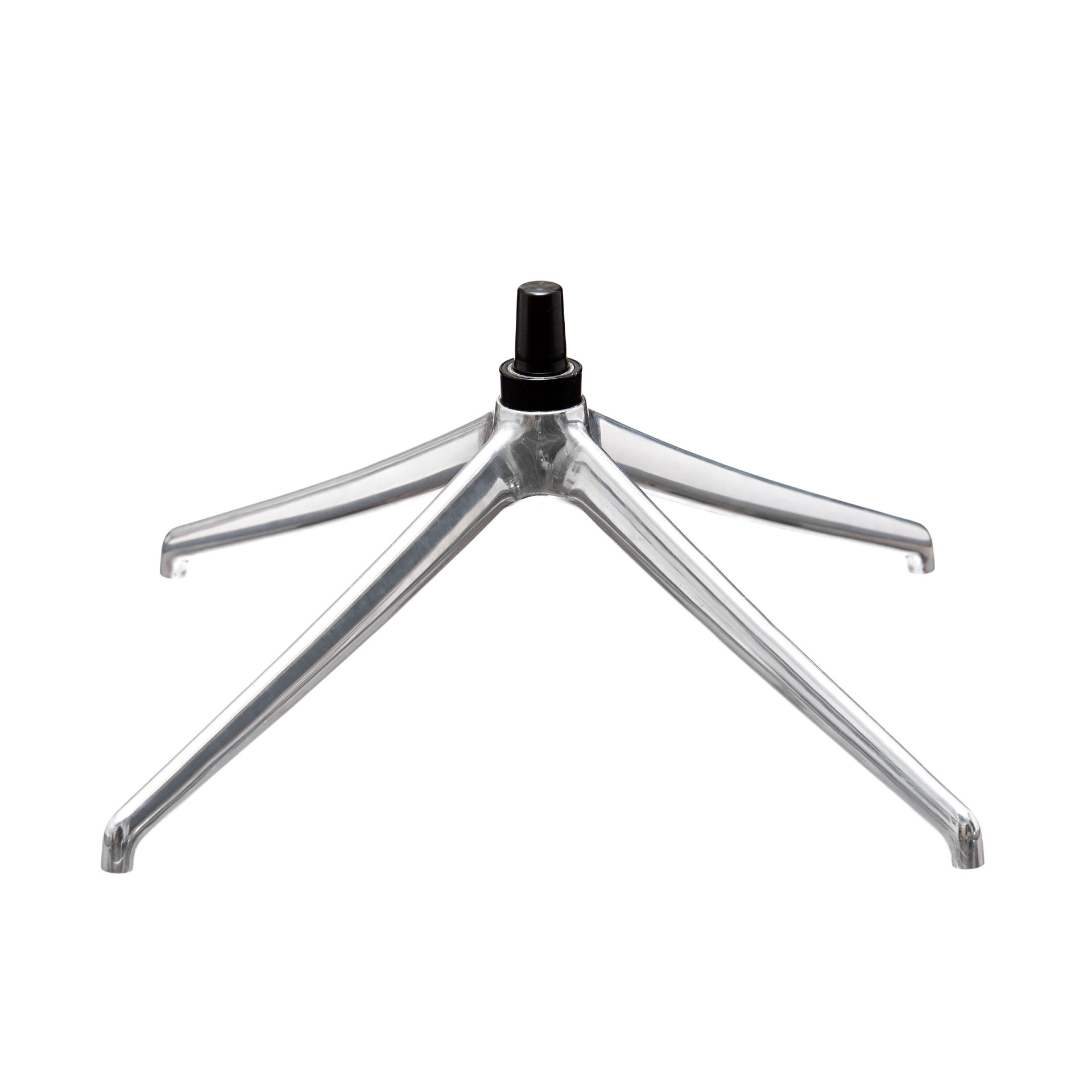

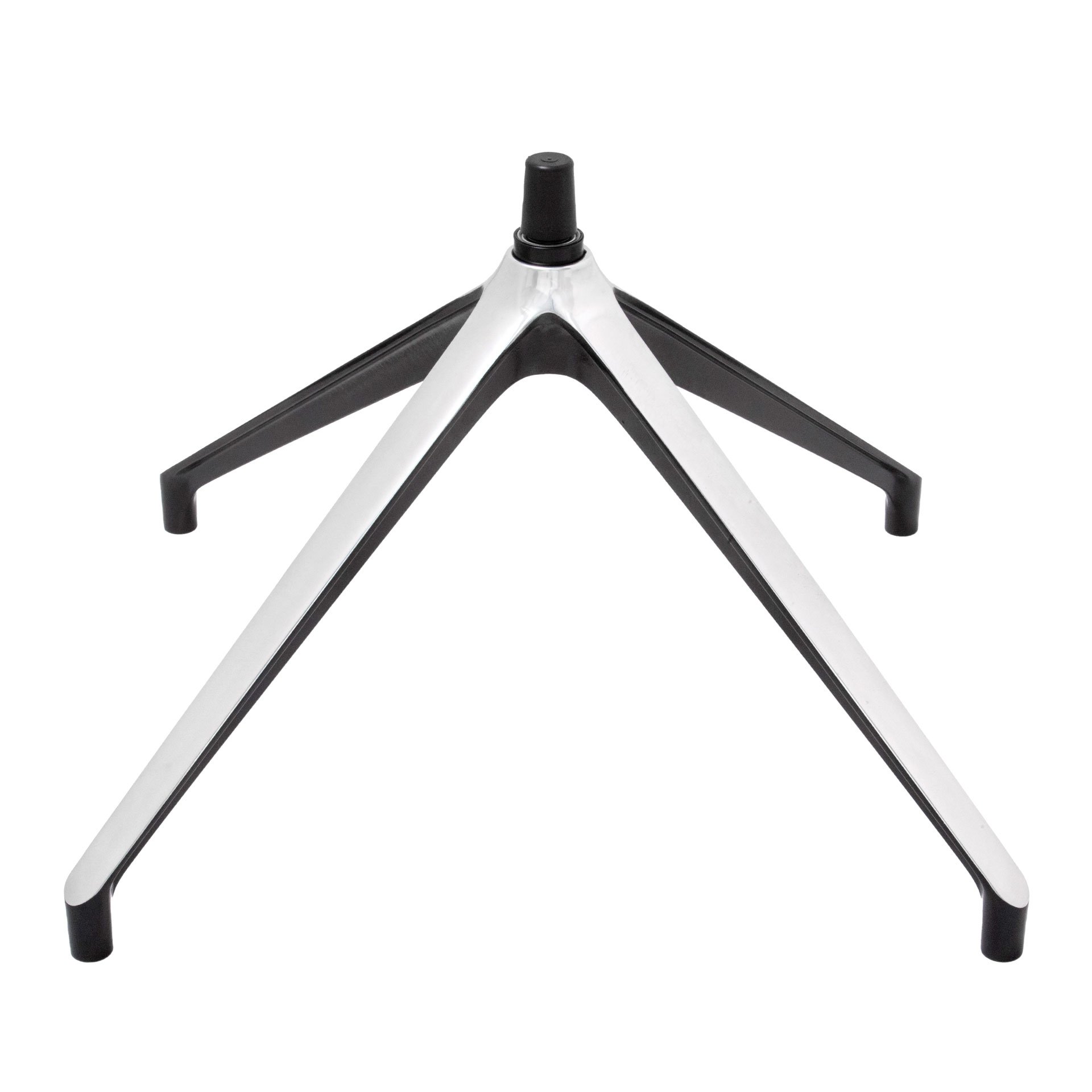

The Origo swivel allows assembly directly into a higher chair base with a 40mm or 45mm taper and is suitable for dining chairs.
The 50mm version is suitable for most chair types.Origo swivel, you will save space in your design, assembly time, and effort in your production.
-
Product Information

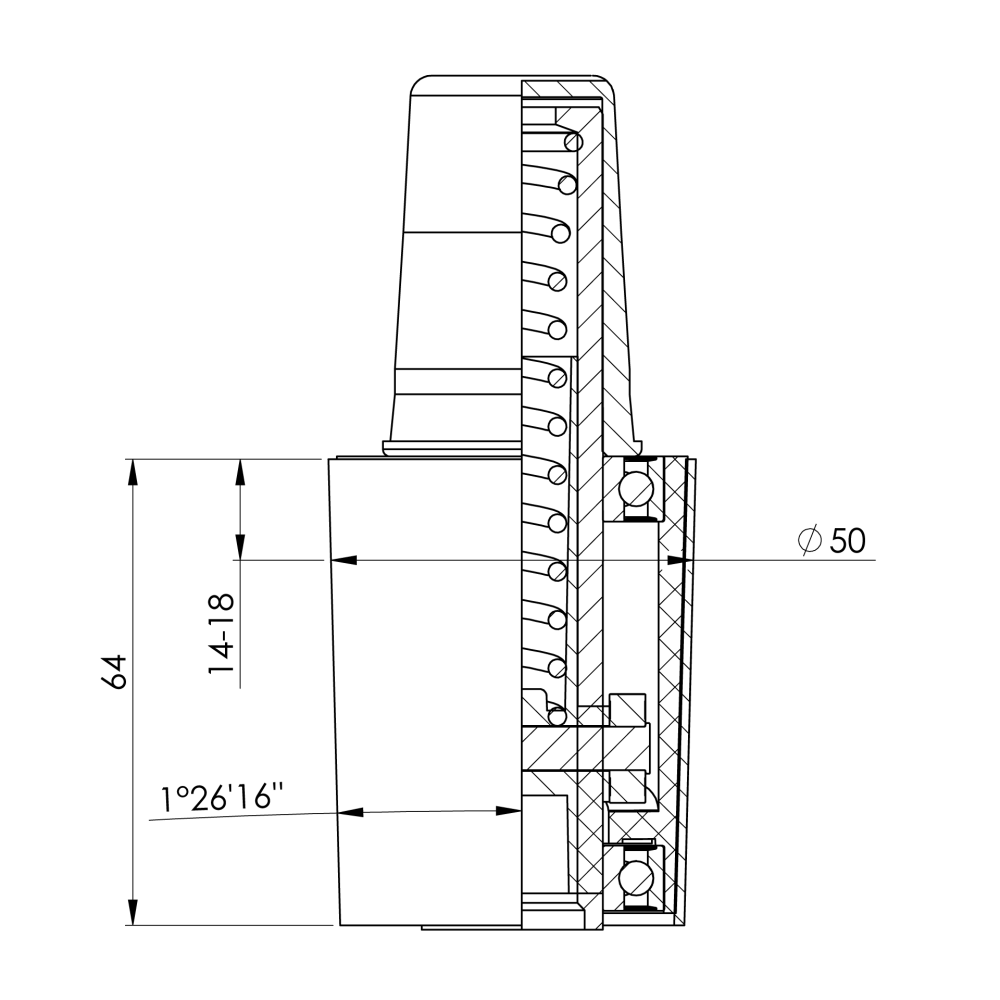

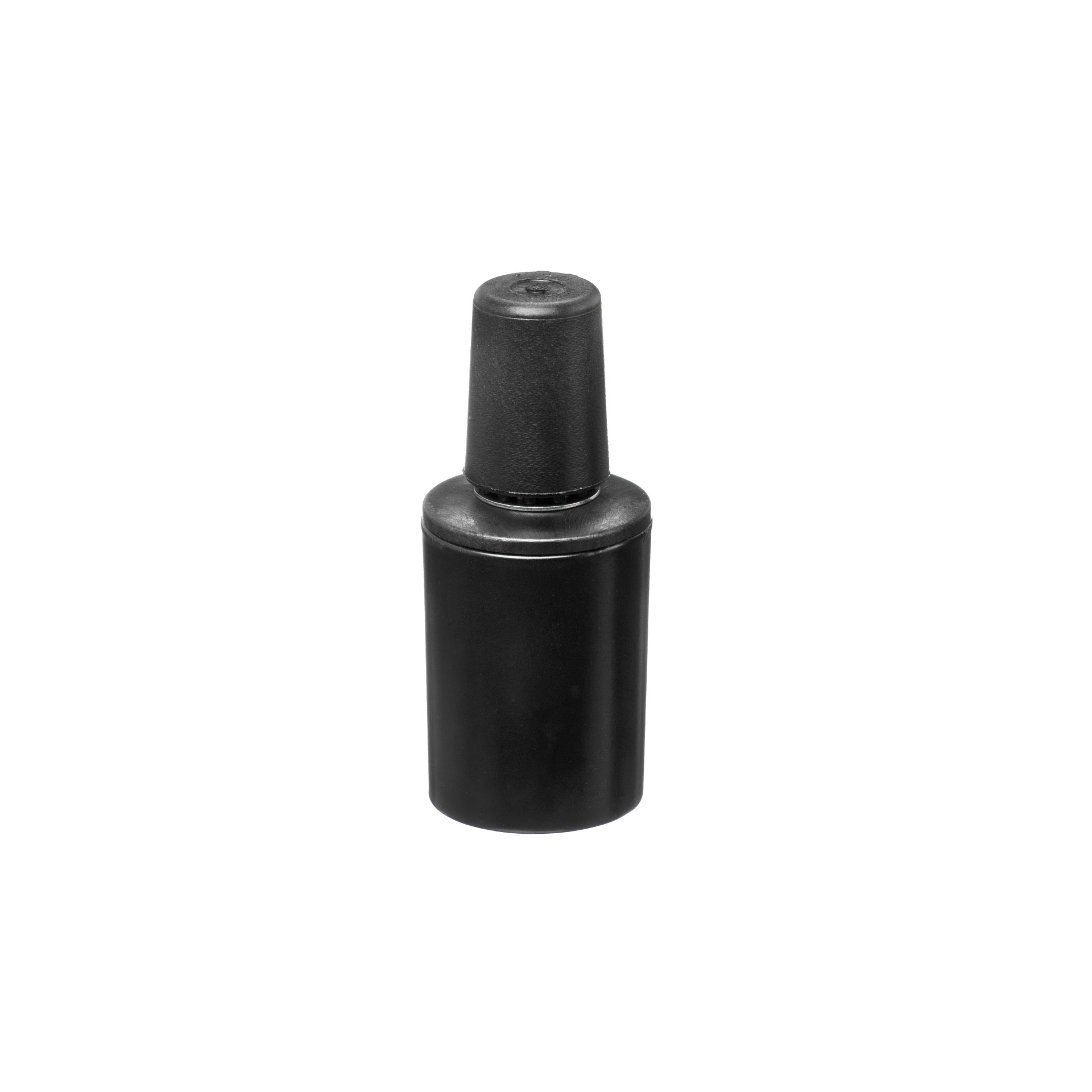

Swivel available with automatic return mechanism, adaptable for a high base with center hole Ø40mm, Ø45mm and Ø50mm with taper 1°26’16”.
-
Name

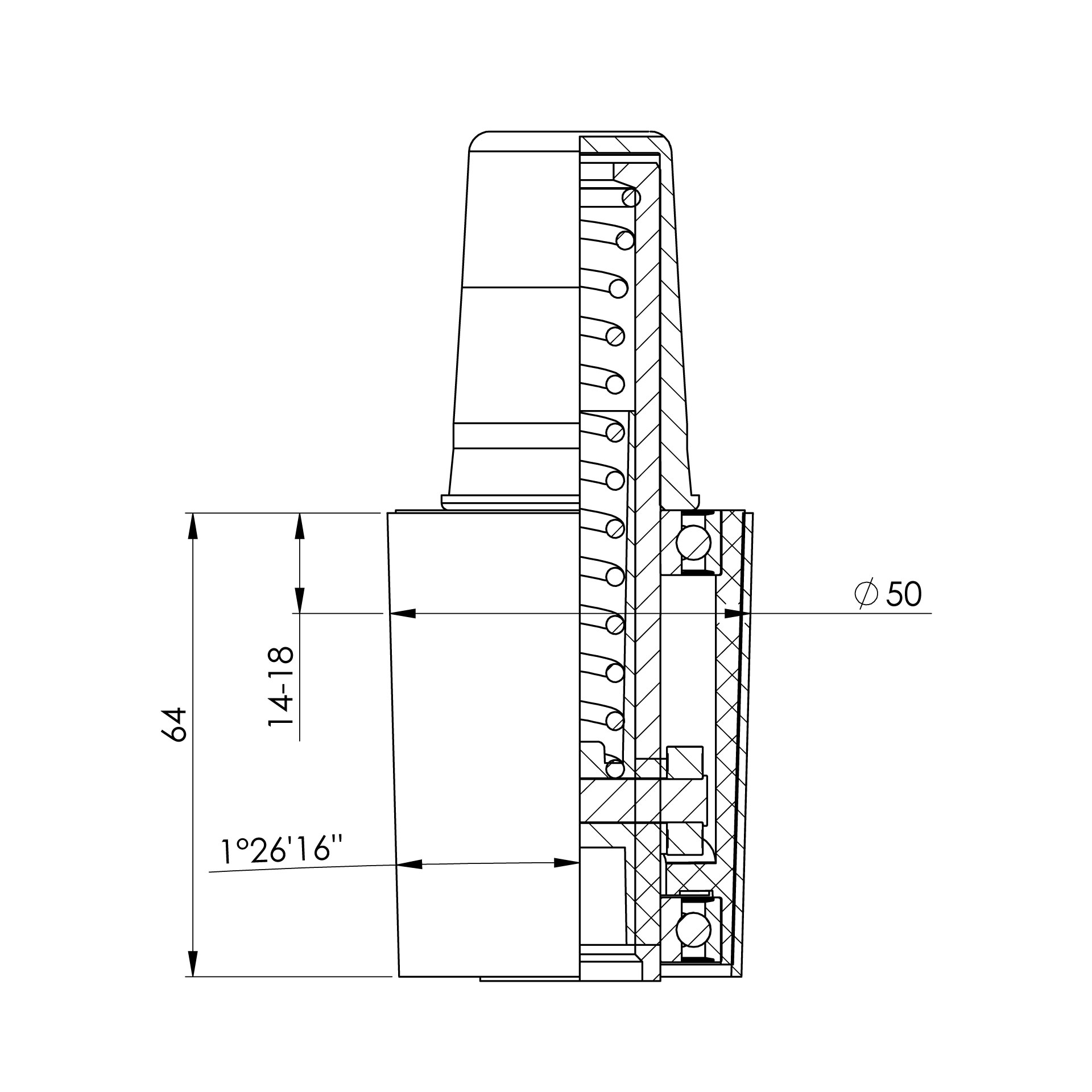

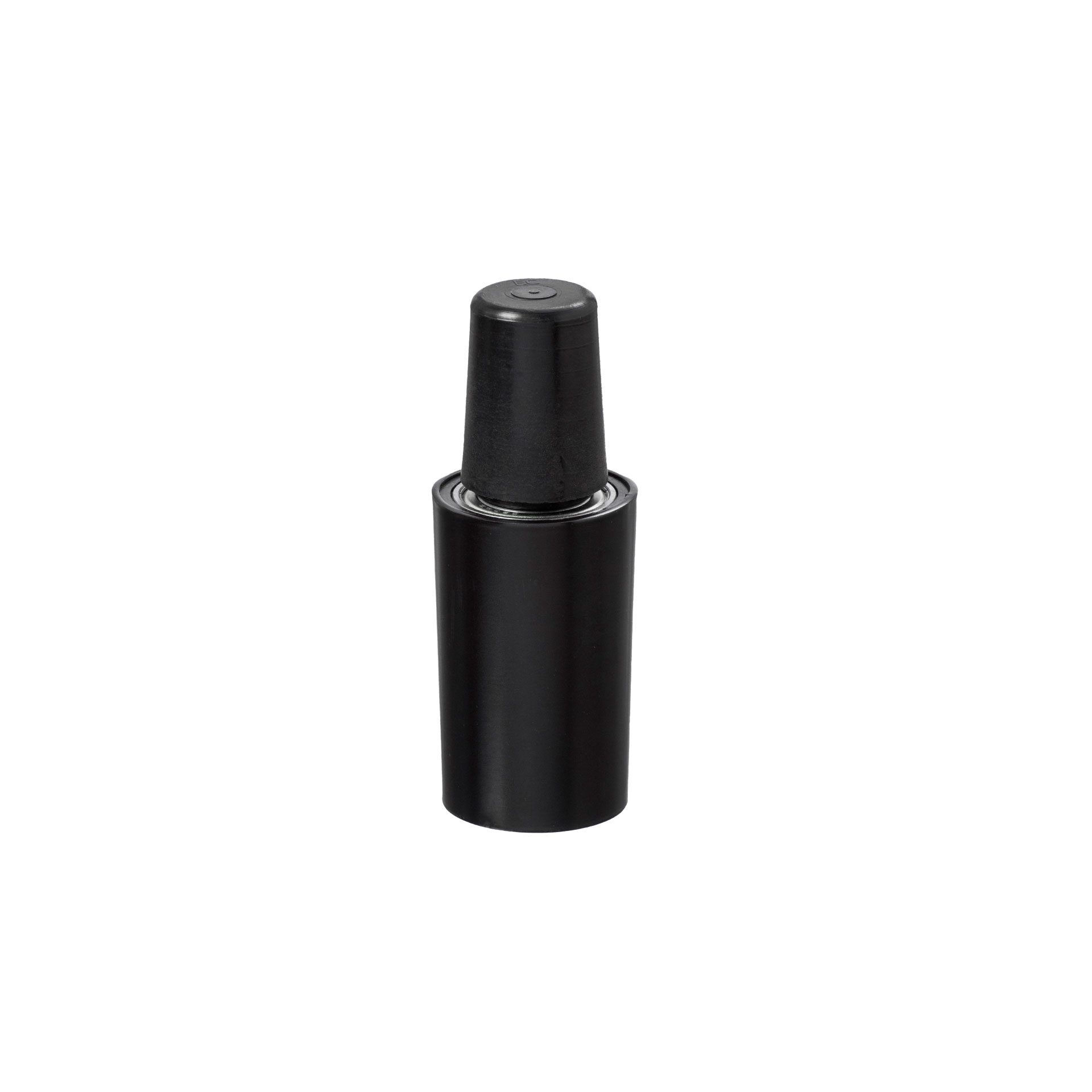

Origo swivel D50
Automatic return mechanism >360° -
Product code
850 000 -
Origo swivel D50
Swivel-only, rotating >360° -
855 000 -

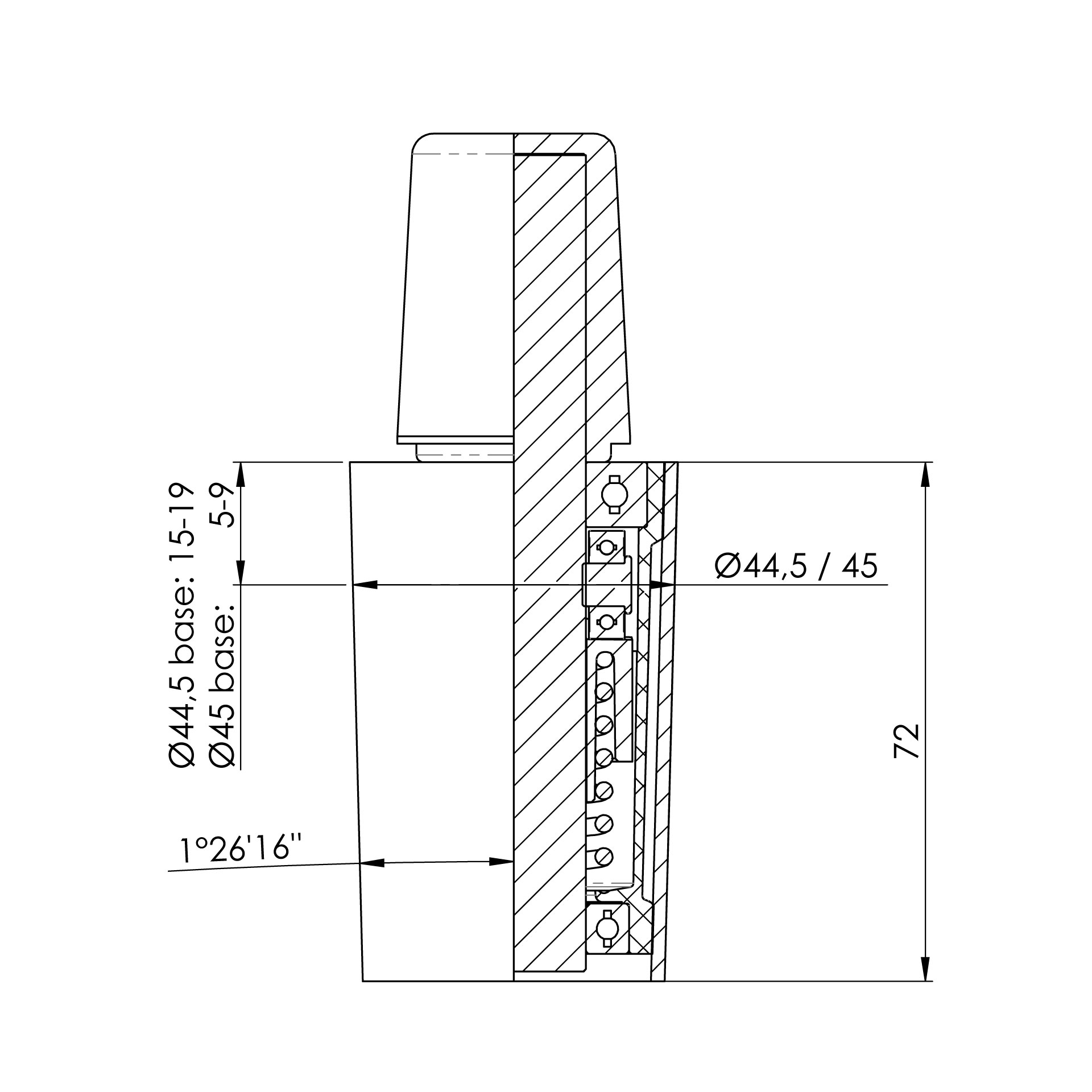

Origo swivel D45 (44.5mm)
Automatic return mechanism >360° -
880 000 -

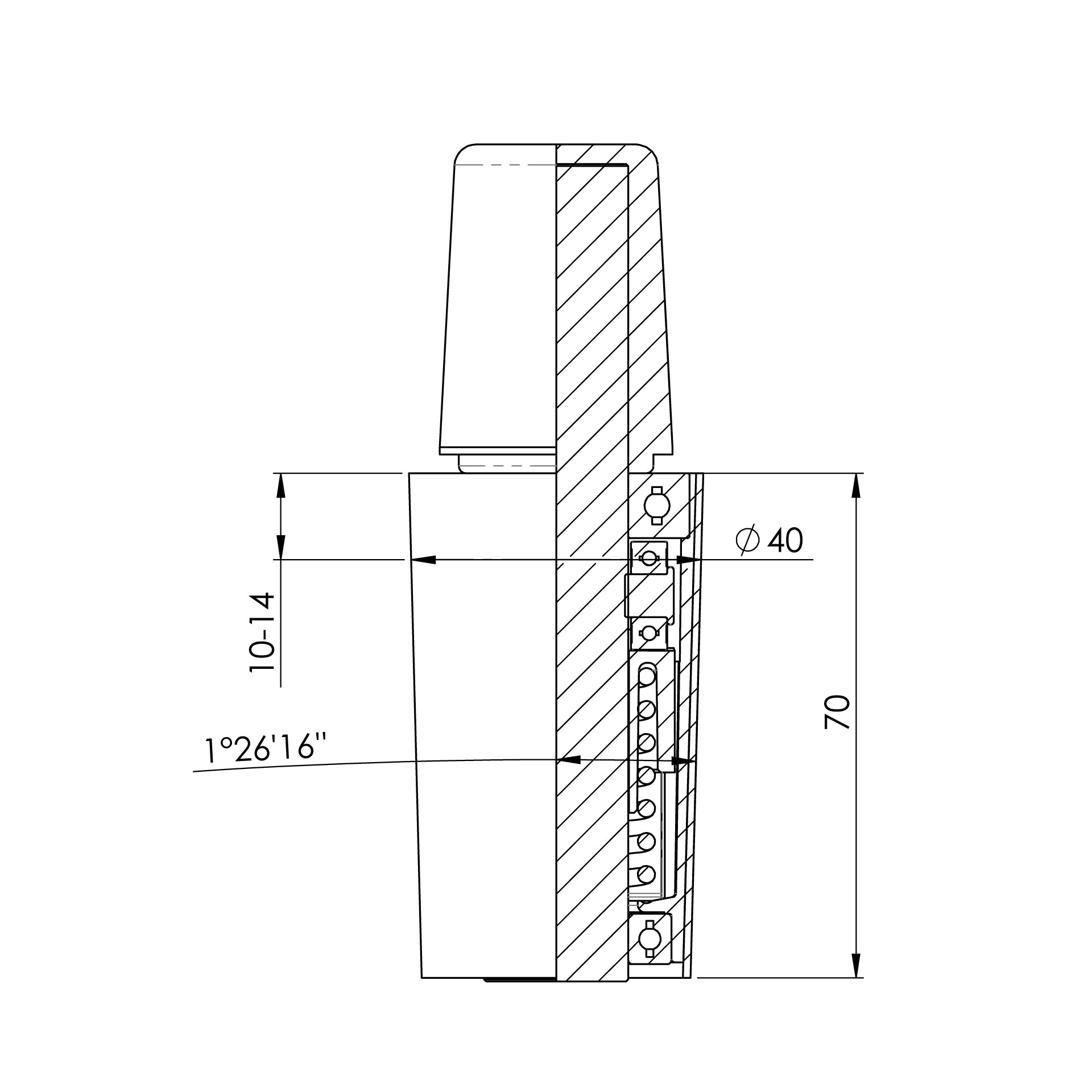

Origo swivel D40
Automatic return mechanism >360° -
840 000
Specifications
Material: metal, composite, POM.
Color: black
1°26’16”
REACH-compliant
Outer metal tube with black painted surface
Swivel height over base surface approx. 15mm.
Options
Upper cone

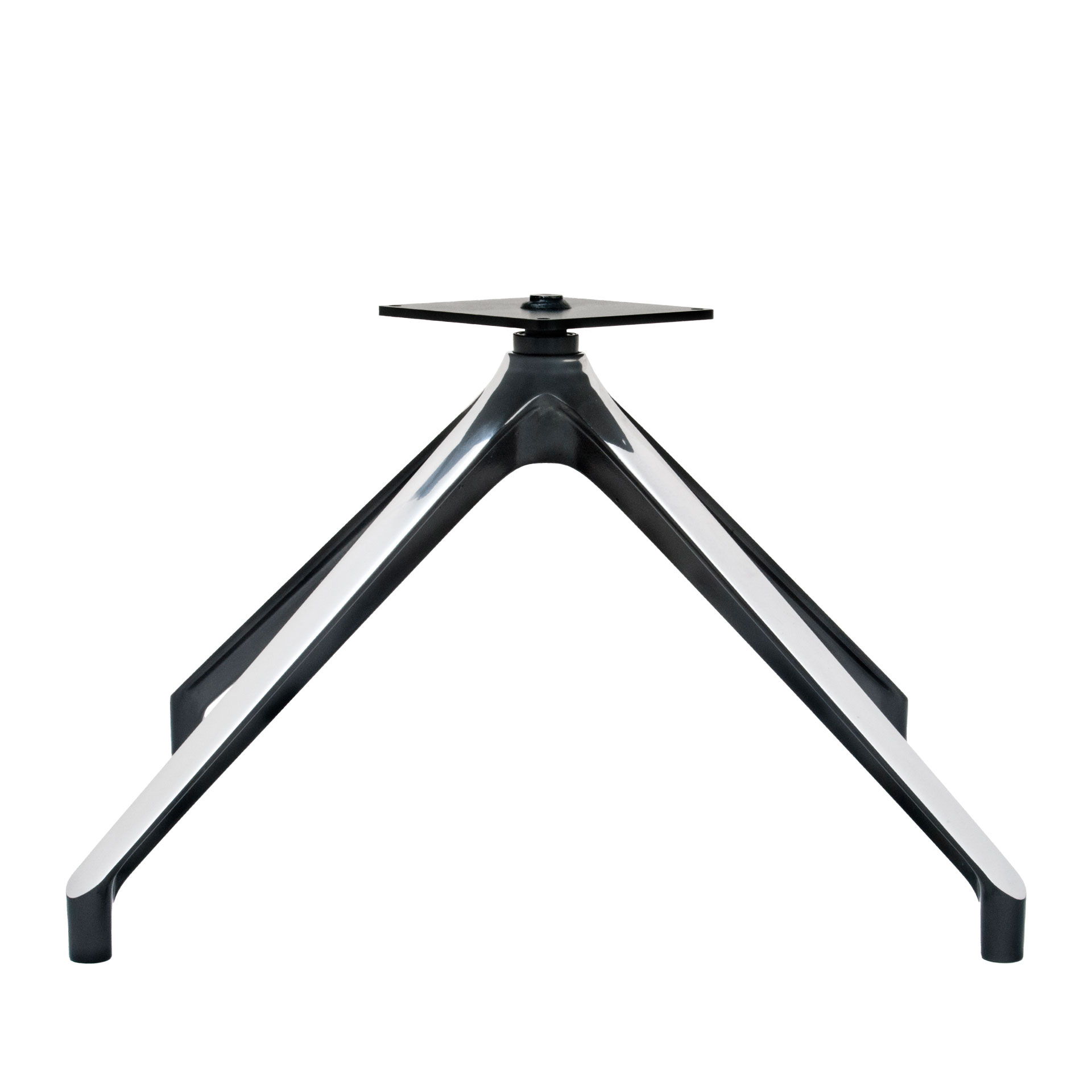

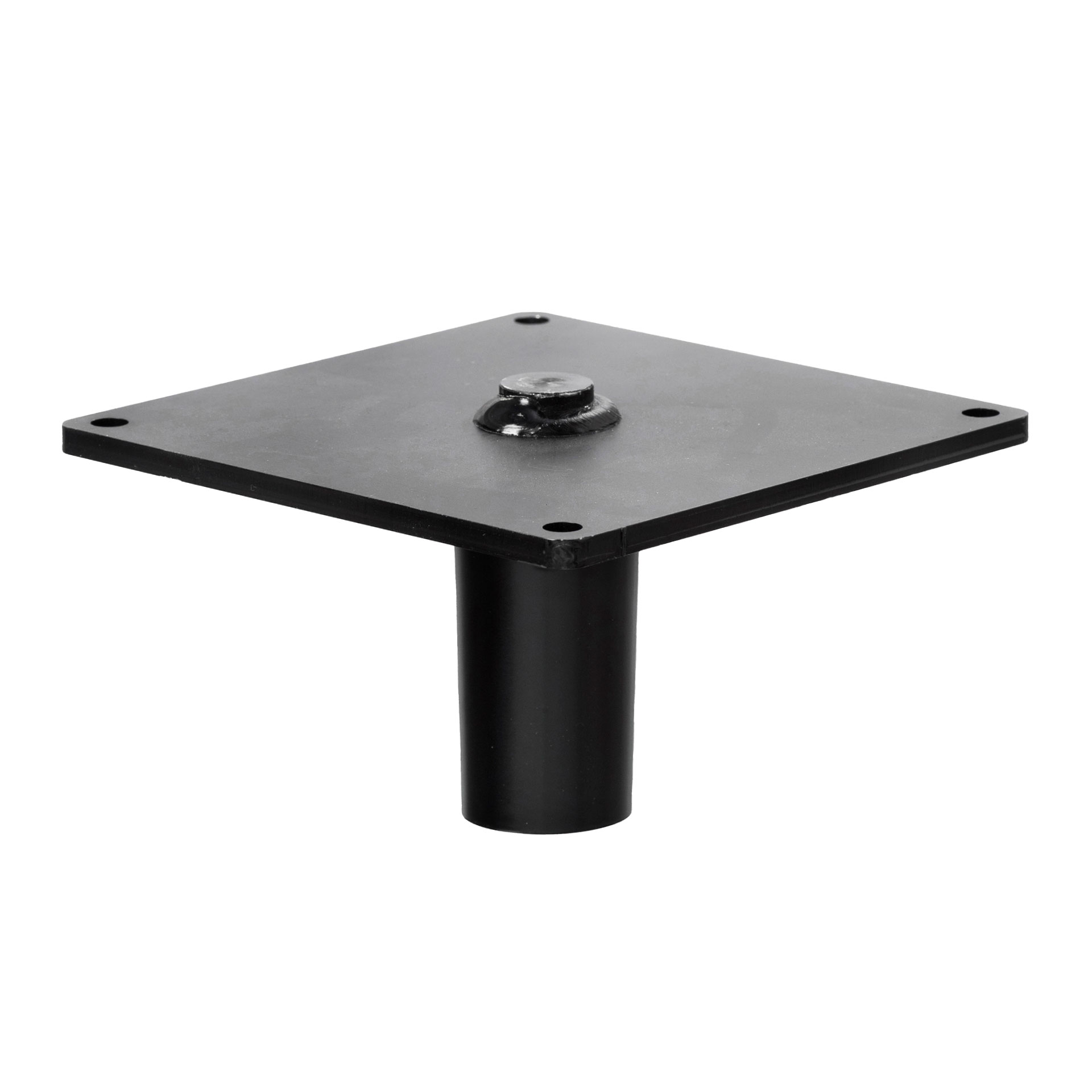

Plate connection available for D40 and D45
Hole pattern for plate connection 4pcs *8mm @130*130mm.
-
-
Origo Inside
Assembling instructions
Ask for our assembly instructions
Download printer-friendly product sheet
Read here by clicking above or download from the link below.
Origo swivel - product sheet [pdf] [990.6 kB]
-
