Minima swivel
-
Product Information

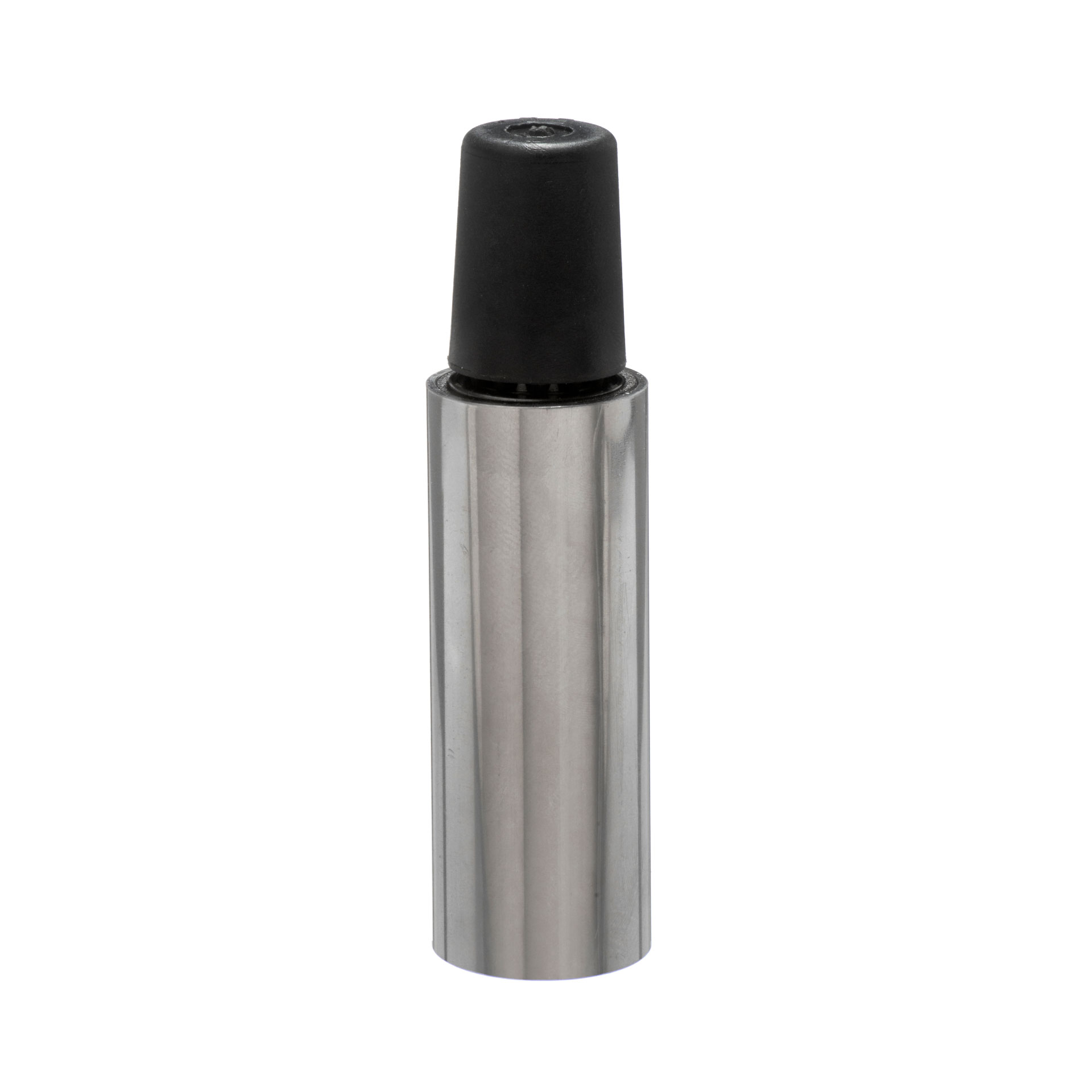

Swivel with automatic return mechanism, Ø40mm.
-
Name
Minima swivel
-
Product code
480 001
-
Automatic return mechanism >360°, without tube.
-
-

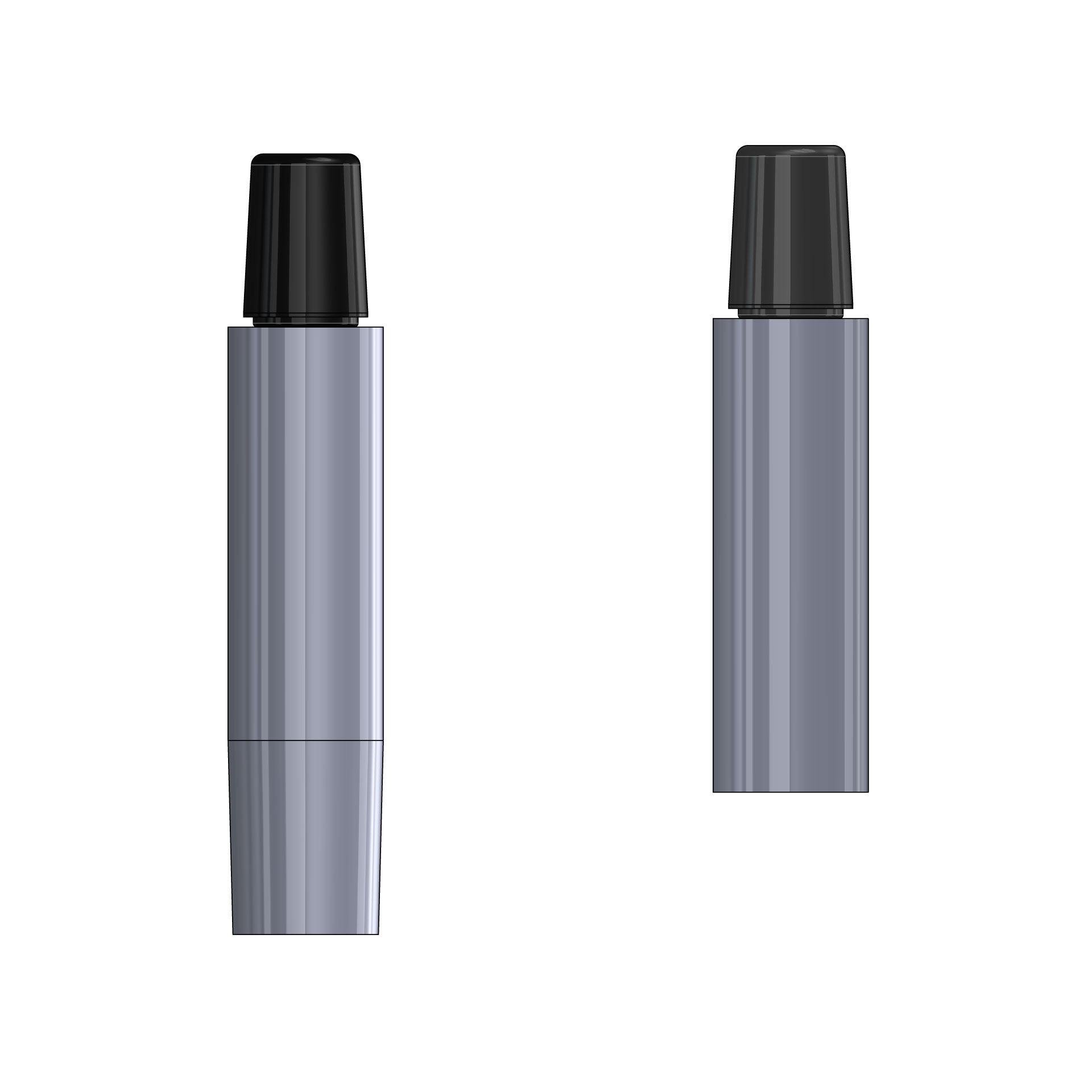

Minima swivel in black tapered tube
-
480 157C
-
Minima swivel in black M12-washer tube
-
480 121M12
Specifications

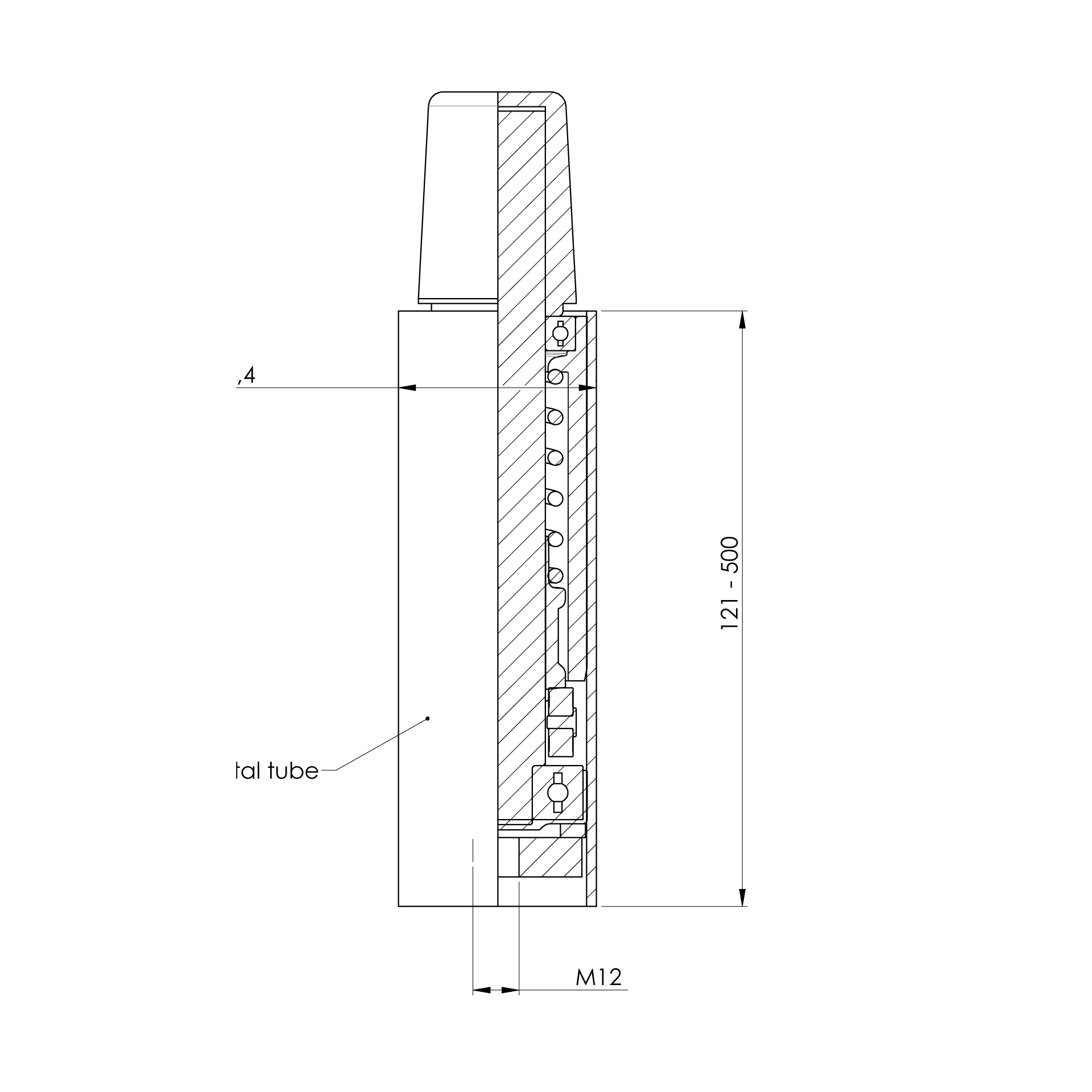

Outer cylindrical metal tube diameter 40*2mm, calibrated.

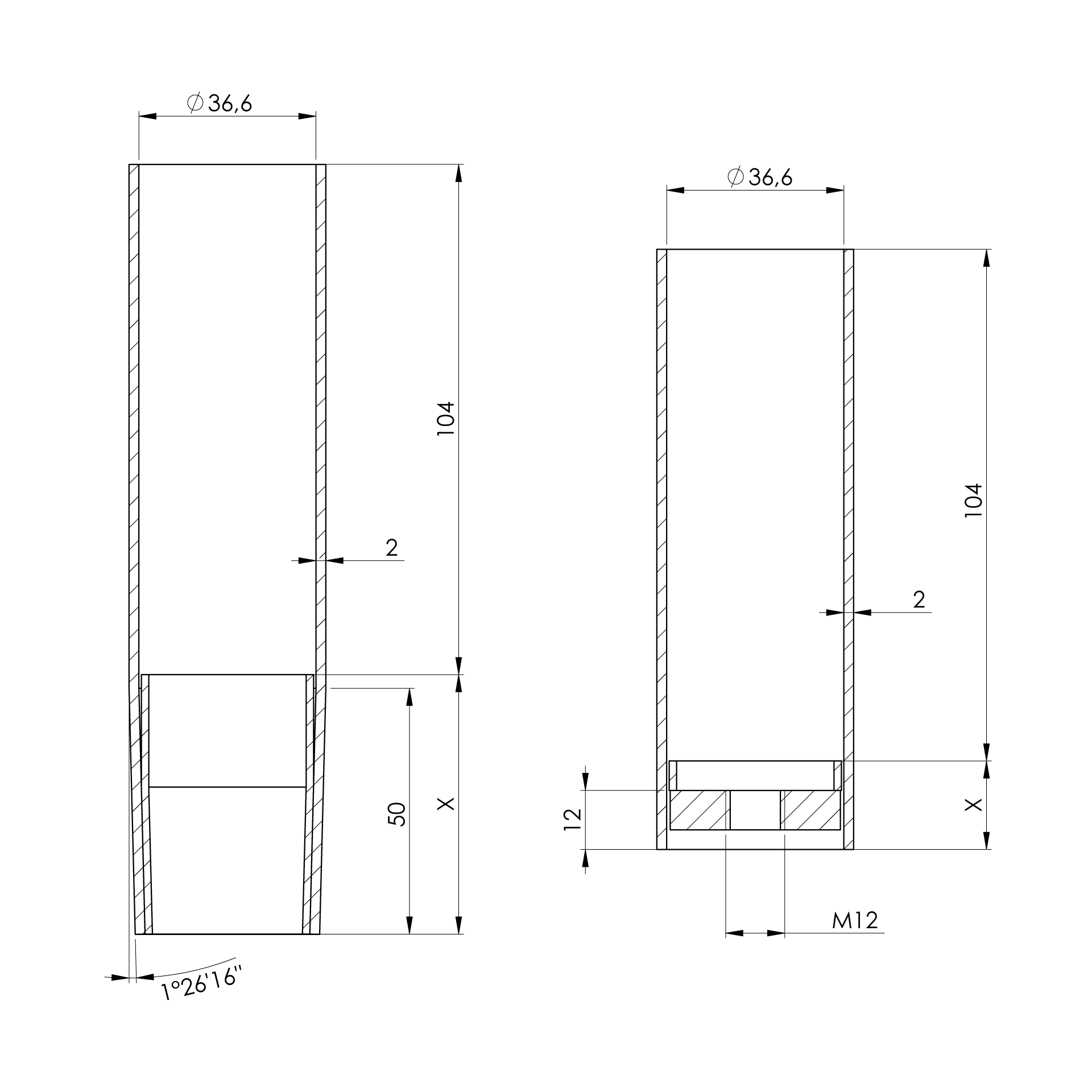

Minimum length 121mm with washer bottom.
Minimum length 157mm with 1°26’16” taper bottom (taper length 50mm).
Materials: steel, composite and plastics.
REACH-compliant.
Options
Cone
- Other cones available on request!
Length of pipe.
Pipe bottom: cylindrical, cone 1°26’16” or welded washer.
Surface: raw, powder coated, chromed, other.
Possible to buy mechanism without metal tube for customized solutions.
Cone information: page 32.
Ask for our assembly instructions
Video
-
-
Inspiration and Assembling
Download printer-friendly product sheet
Read here by clicking above or download from the link below.
Minima swivel - product sheet [pdf] [117.8 kB]
-
