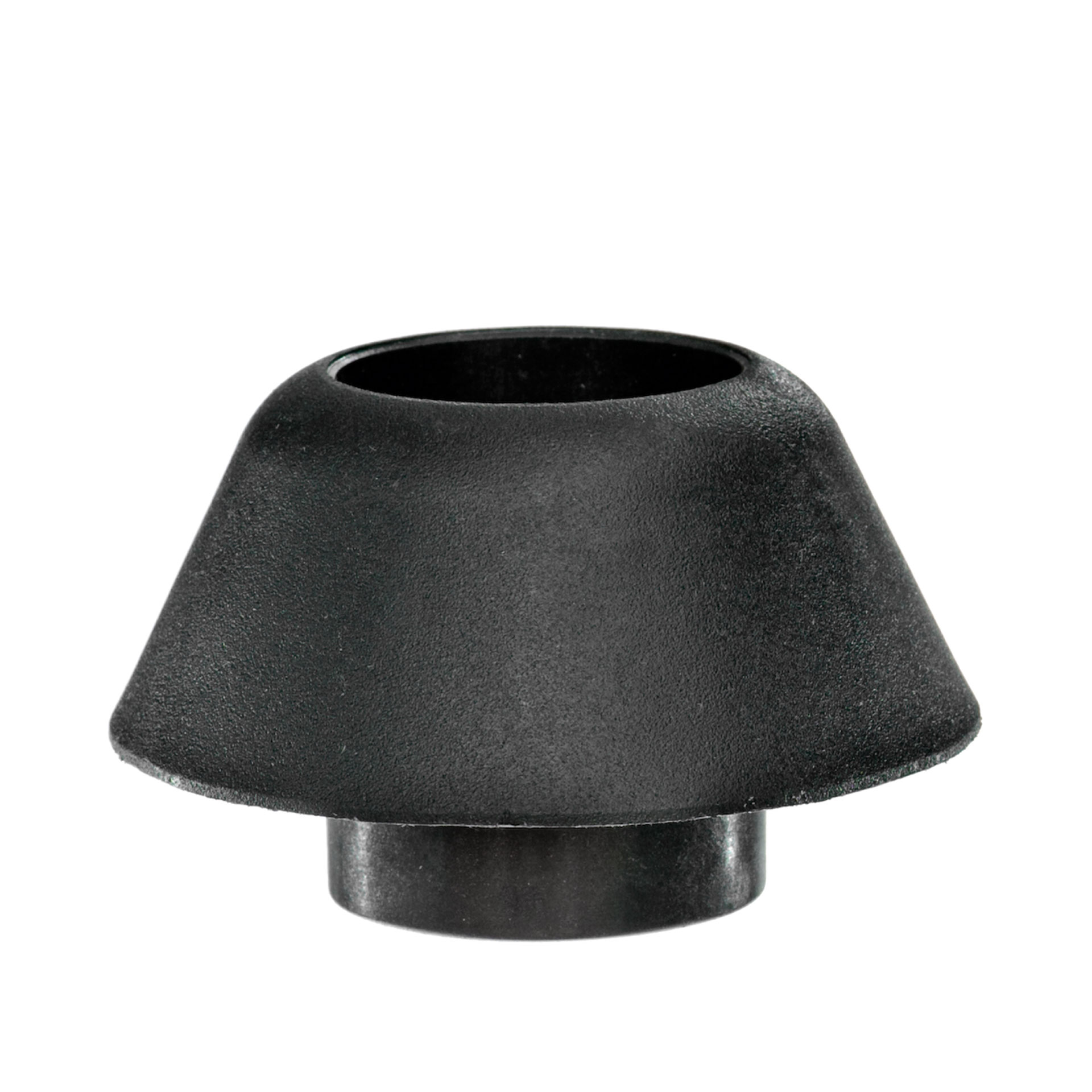

Uluru Column
Center column compatible with gas spring or metal pipe.
-
-
Available as
-
Name
Product Code
Available As
-
Uluru Column
140 500
Specifications
Fitting for chair base with gas lift or metal pipe
Material: composite
Surface: sanded structure (imitation)
Color: black

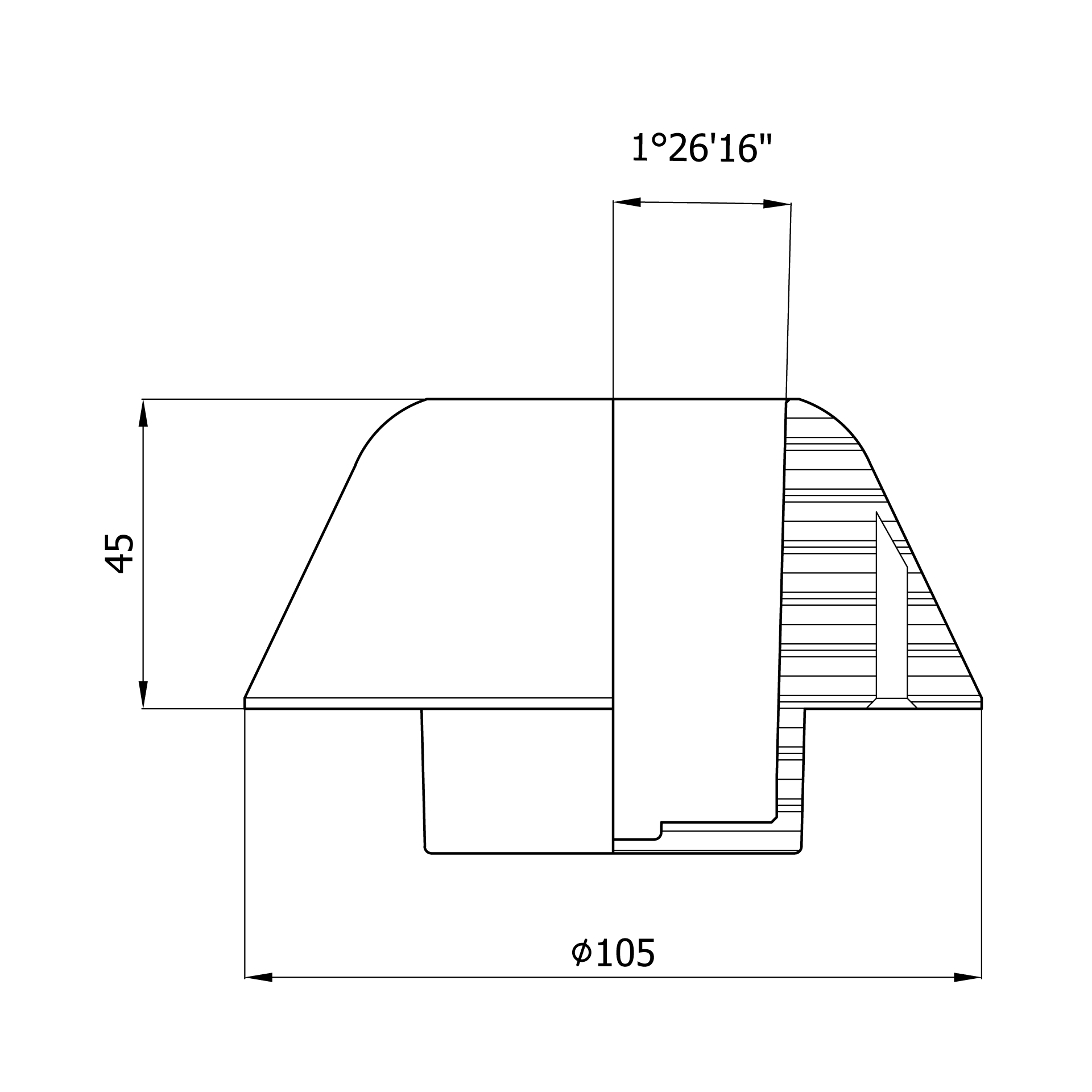

Center hole angle: 1° 26’ 16”
Screws: included
Options
Center pillar gas spring or metal pipe
Assembling gallery
Technical Support
Assembling instructions
Max 21mm thread engagement depth
Center column to be assembled to base with 3pcs Mekrapid screws 6.5×40mm, insex 5mm. Please note that screws may have to be shorter if base is thin!
Hole pattern for Column, Ø 80,0, 3pcs
Technical Questions?
Do you need technical support related to our products, their assembly or other technical inquiries?
Please get in touch with Mekrapid's technical team by the e-mail address below:
techsupport(at)mekrapid.fi
