Electra swivel
-
Product Information

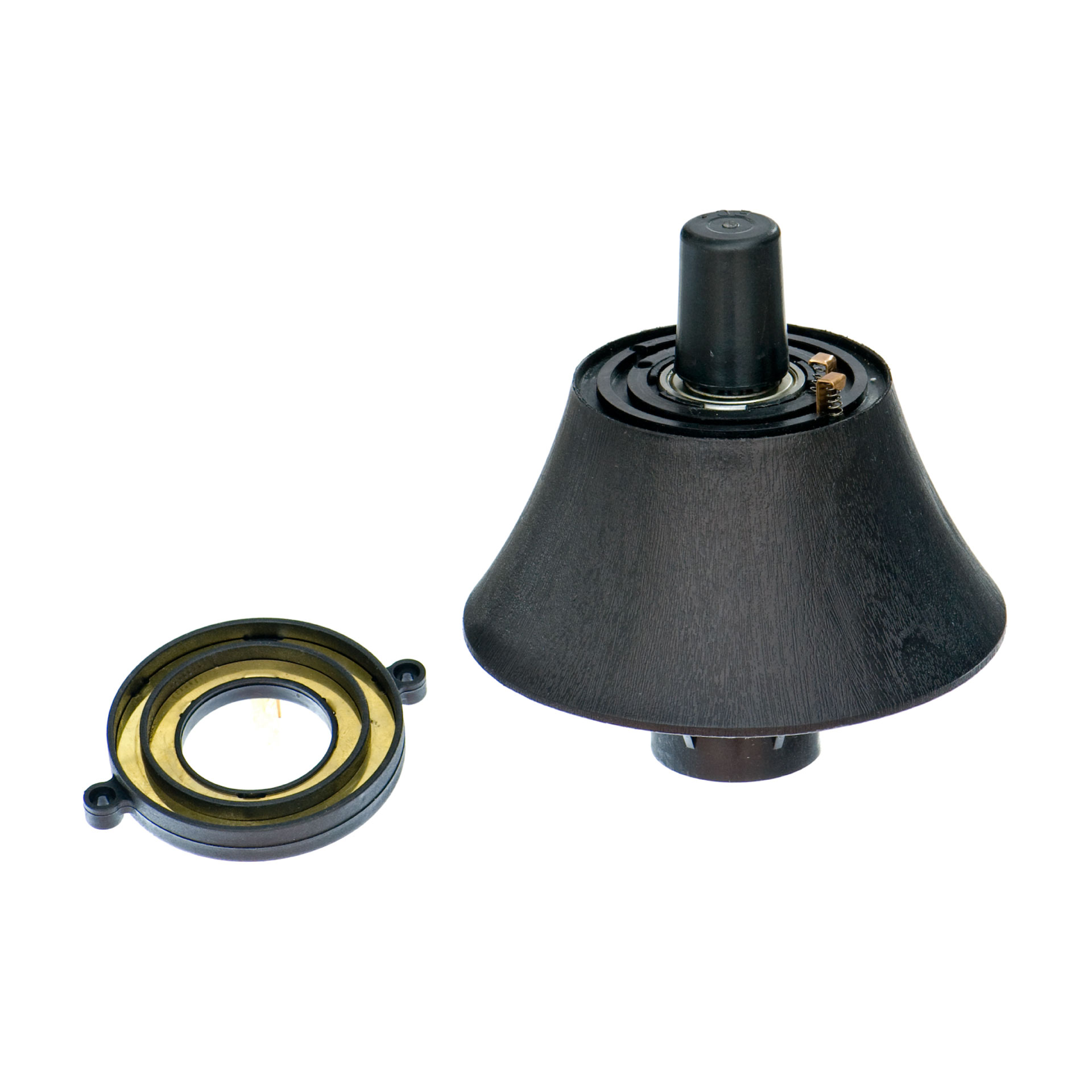

Swivel to transfer electricity for reading lamp, massage function a.s.o. from chair base to chair seat, available with automatic return mechanism.
-
Name
Electra swivel automatic return >360°
-
Product code
410 075-EC
-
Electra swivel rotation >360°
-
415 075-EC
Note! Center of base for this swivel model height must be minimum 45mm high!
Specifications
possibility to transfer 10A 24V DC/AC from the chair base to the rotating chair frame
Connection: 2pcs female blade crimps 1507 FLF 6.3*0.8 red (or similar)
Standard connection: axial (radial on request)
Screws: included for swivel
Patented
Options
Cone
- Other cones available on request!
Automatic return function: light, medium or heavy
High precision cam
Video
-
-

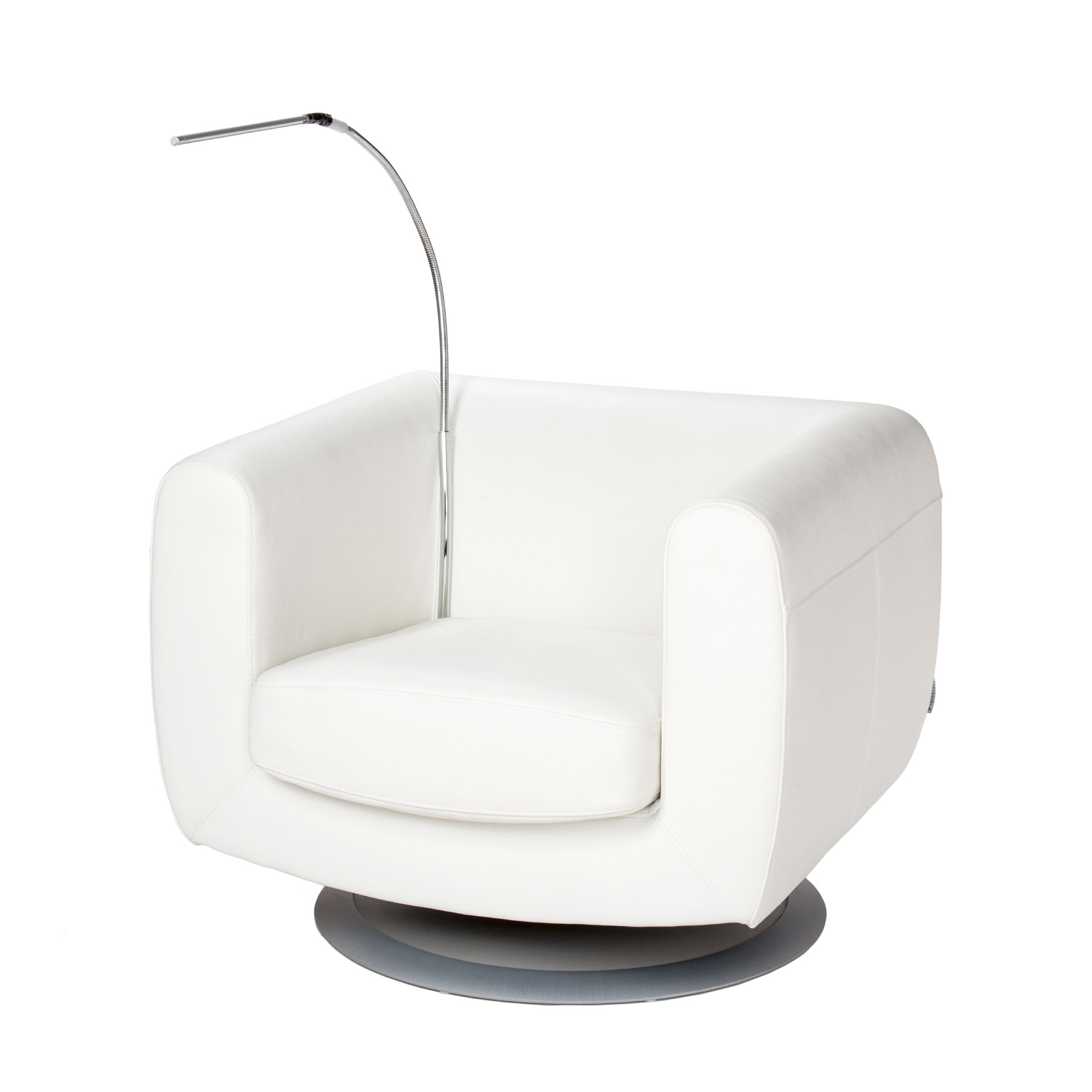

Inspiration and Assembling
Assembling instructions

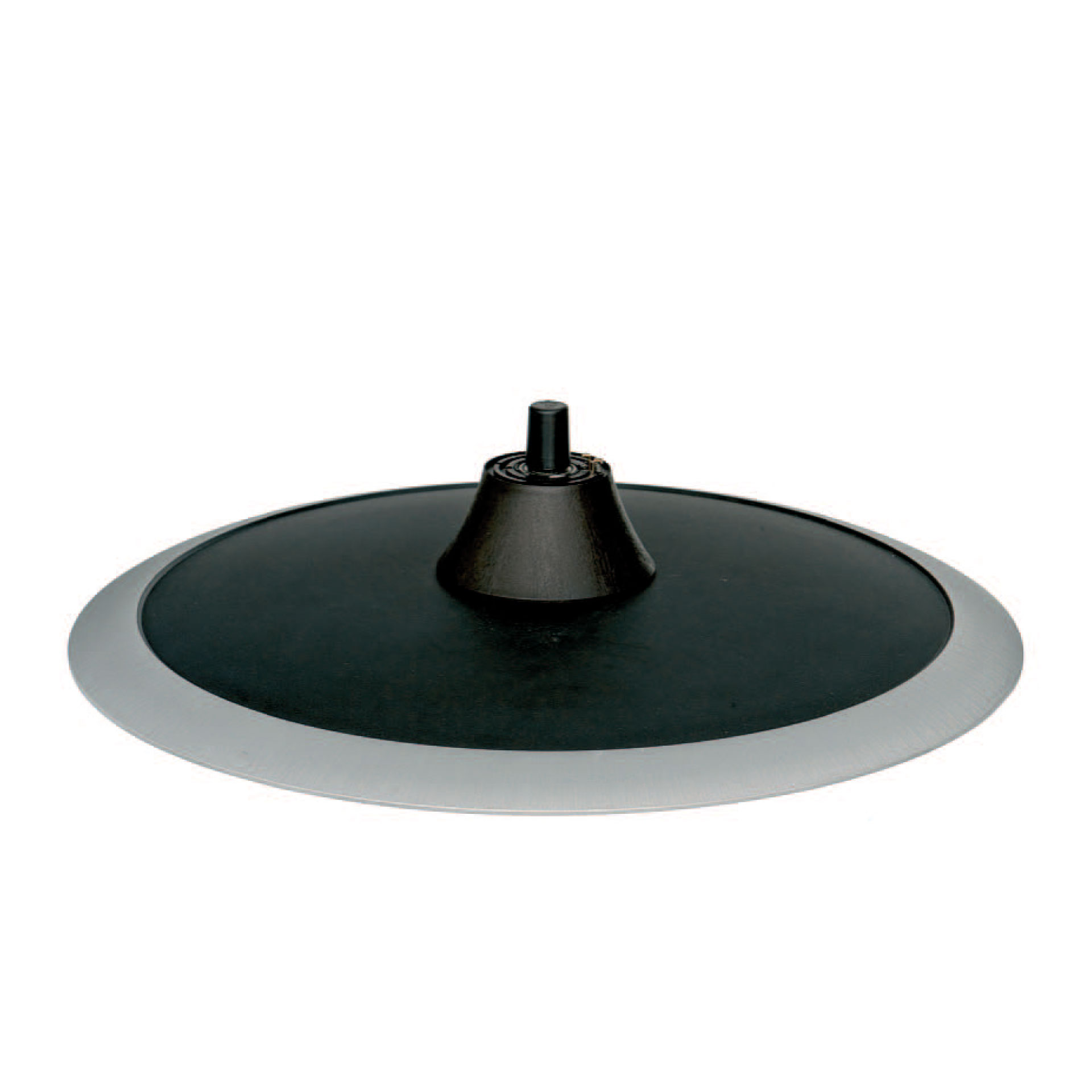

Swivel to be assembled to chair base with 6pcs wooden screws 6.0*50mm

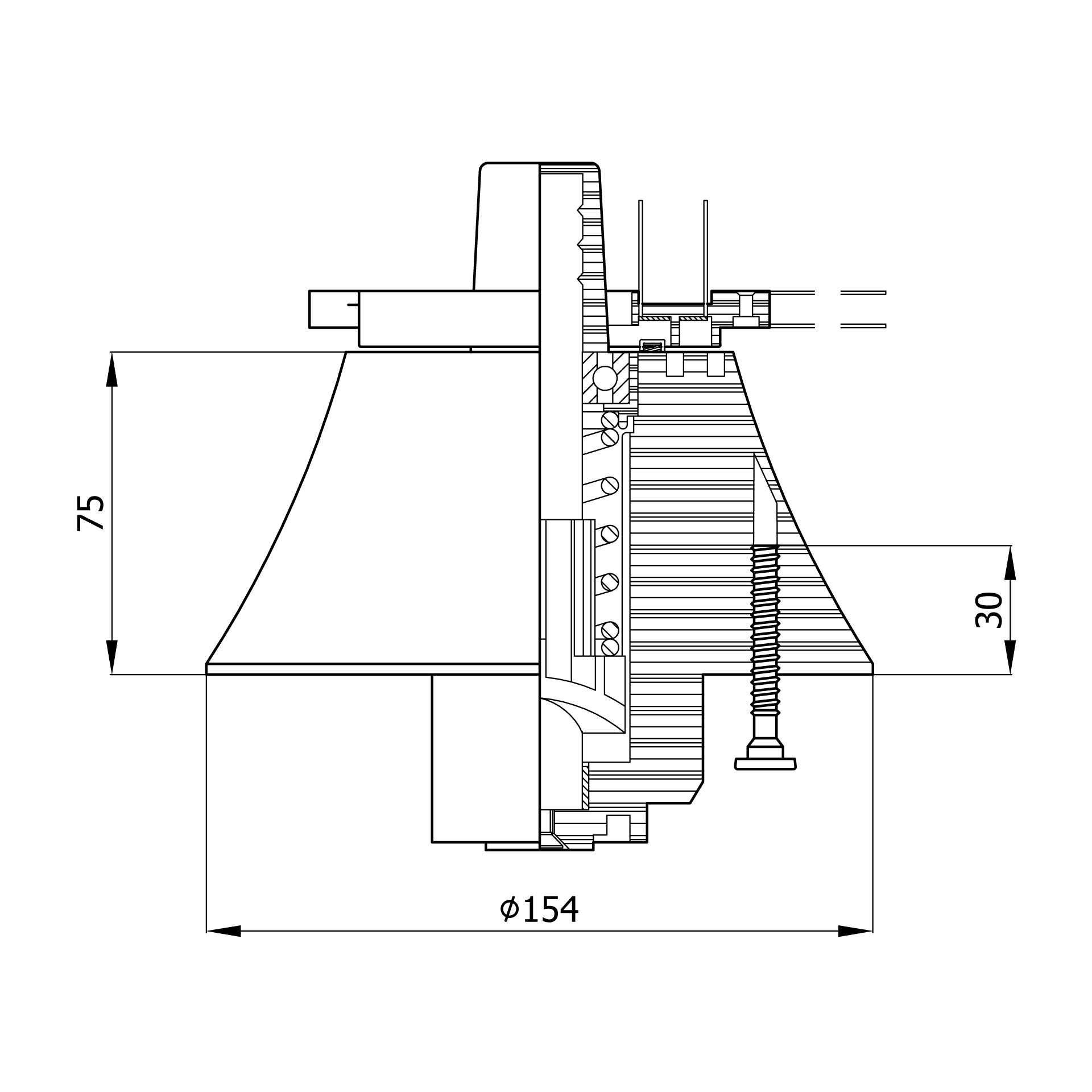

Hole pattern for swivel, Ø 104,0, 6pcs
Download printer-friendly product sheet
Read here by clicking above or download from the link below.
Electra swivel - product sheet [pdf] [125.8 kB]
-
