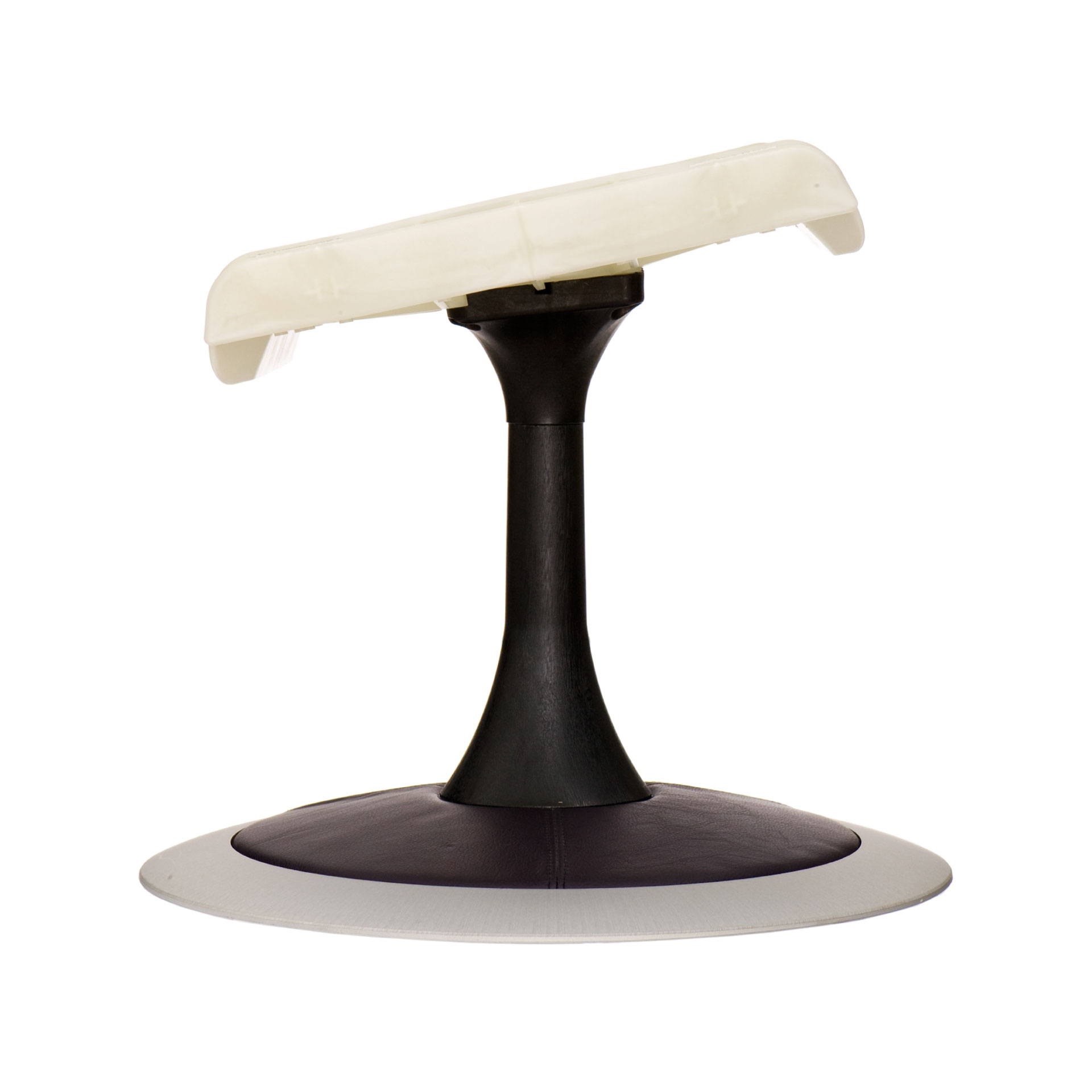

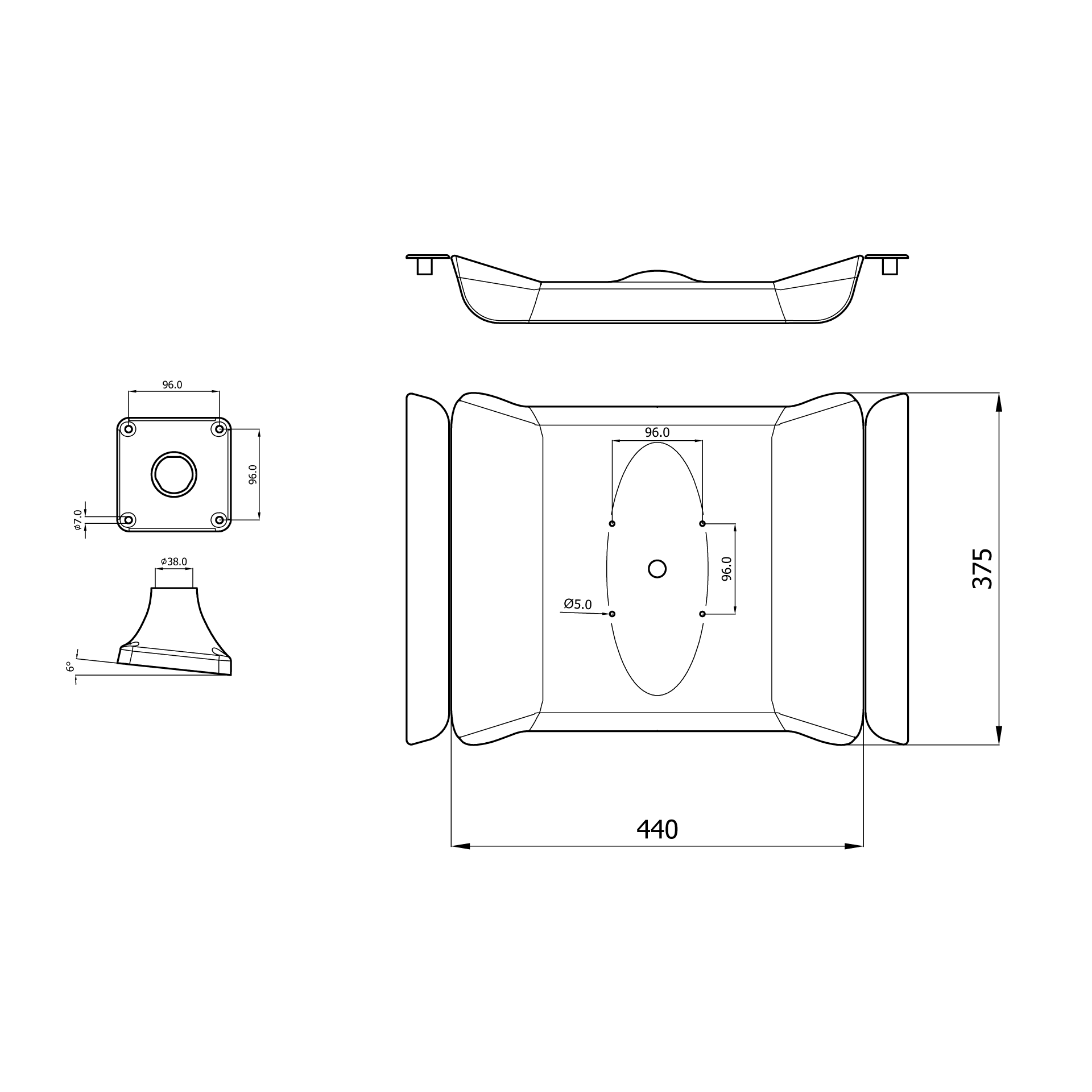

Foot stool frame and angle adjuster console (0° /12°).
Assembling angle of frame/console, 0° or 12°
See Cornet foot stool page
See dark green pages “bases”

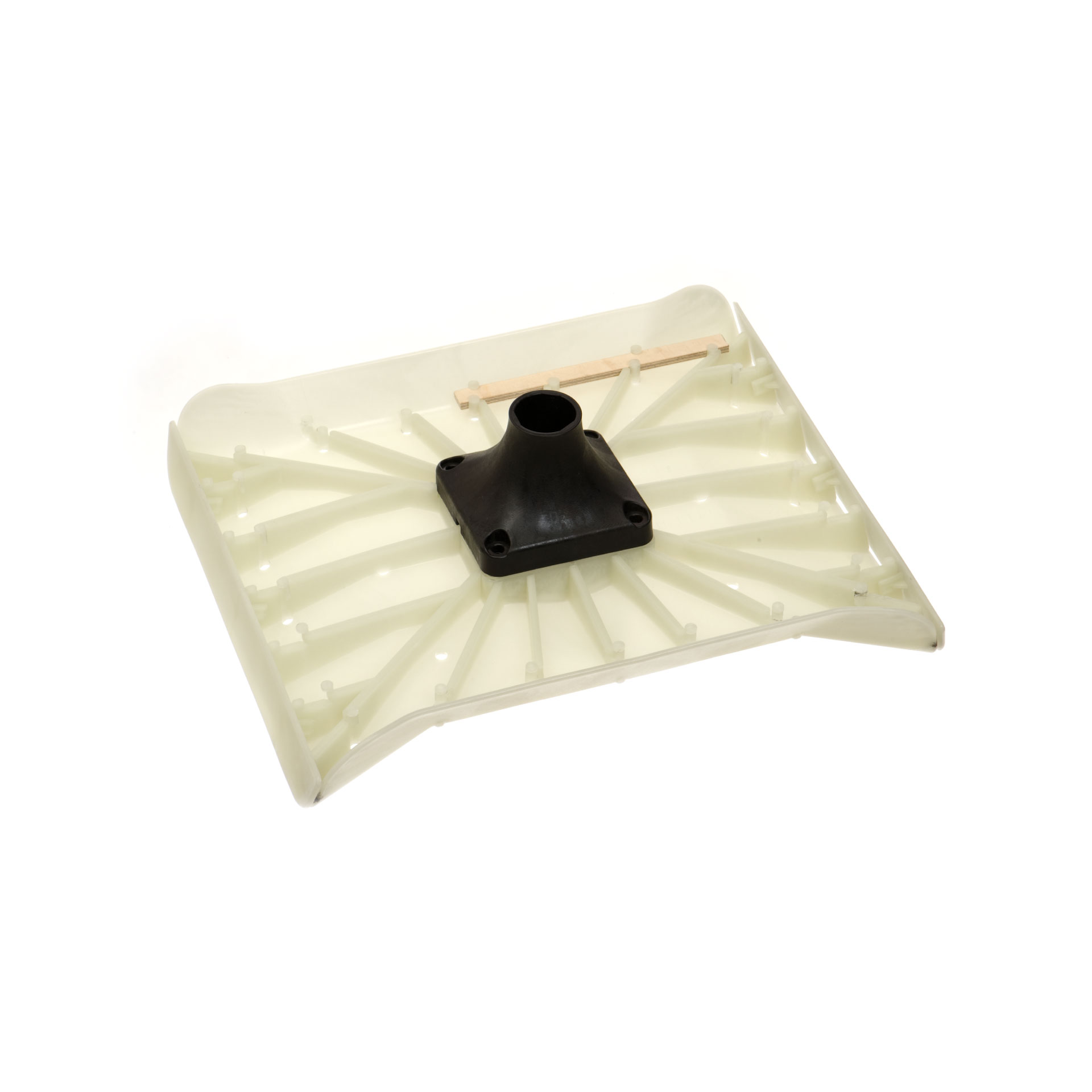

Console to be assembled to frame by 4pcs Mekrapid screws 6,5*35-40mm
Console to be fastened to footstool center by a Ø38*241mm, metal pipe

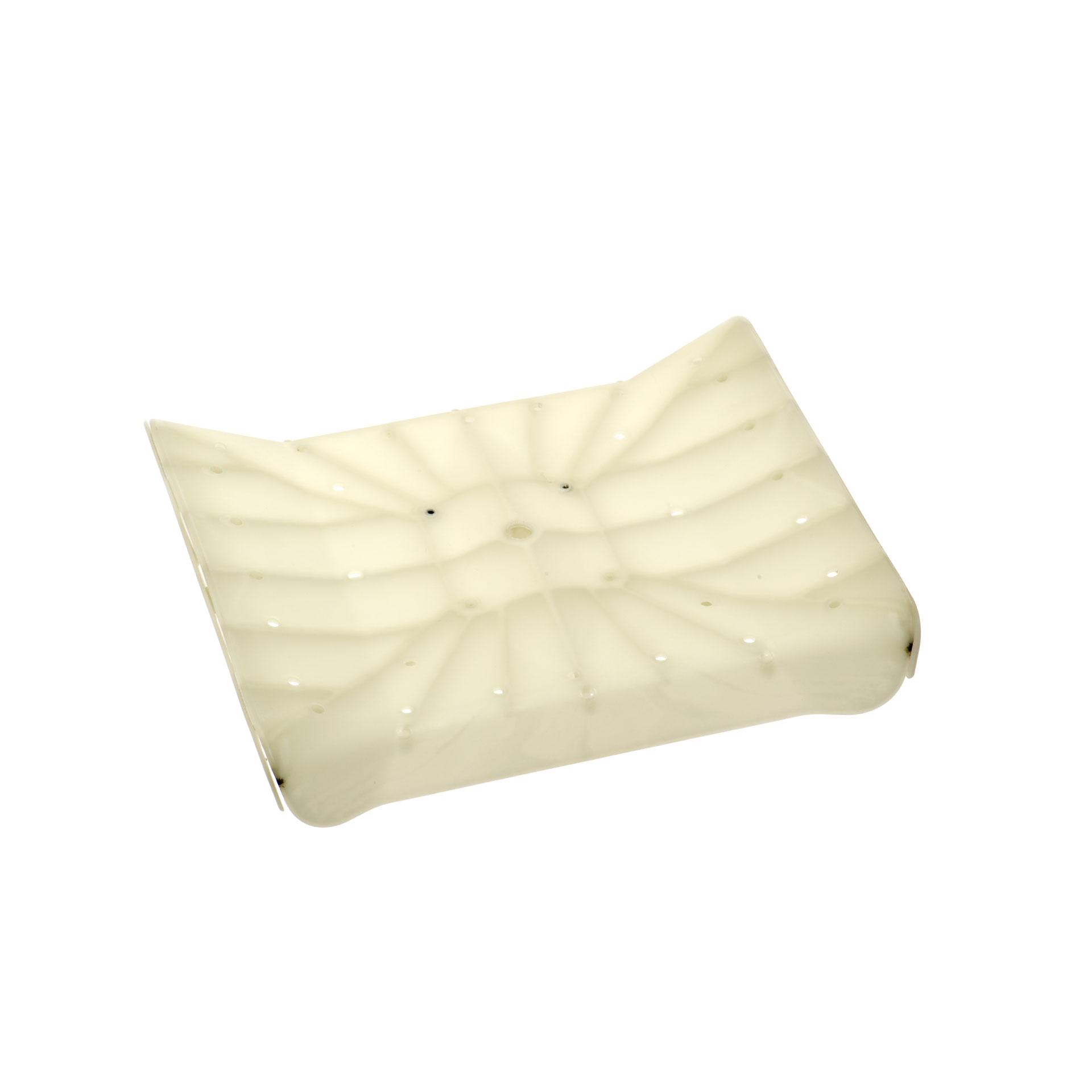

Foam and upholster to be stapled to underside of Sceleton frame (to 6*16mm veneer ribs 2pcs l=37,1mm and 2pcs l=30,2mm)
