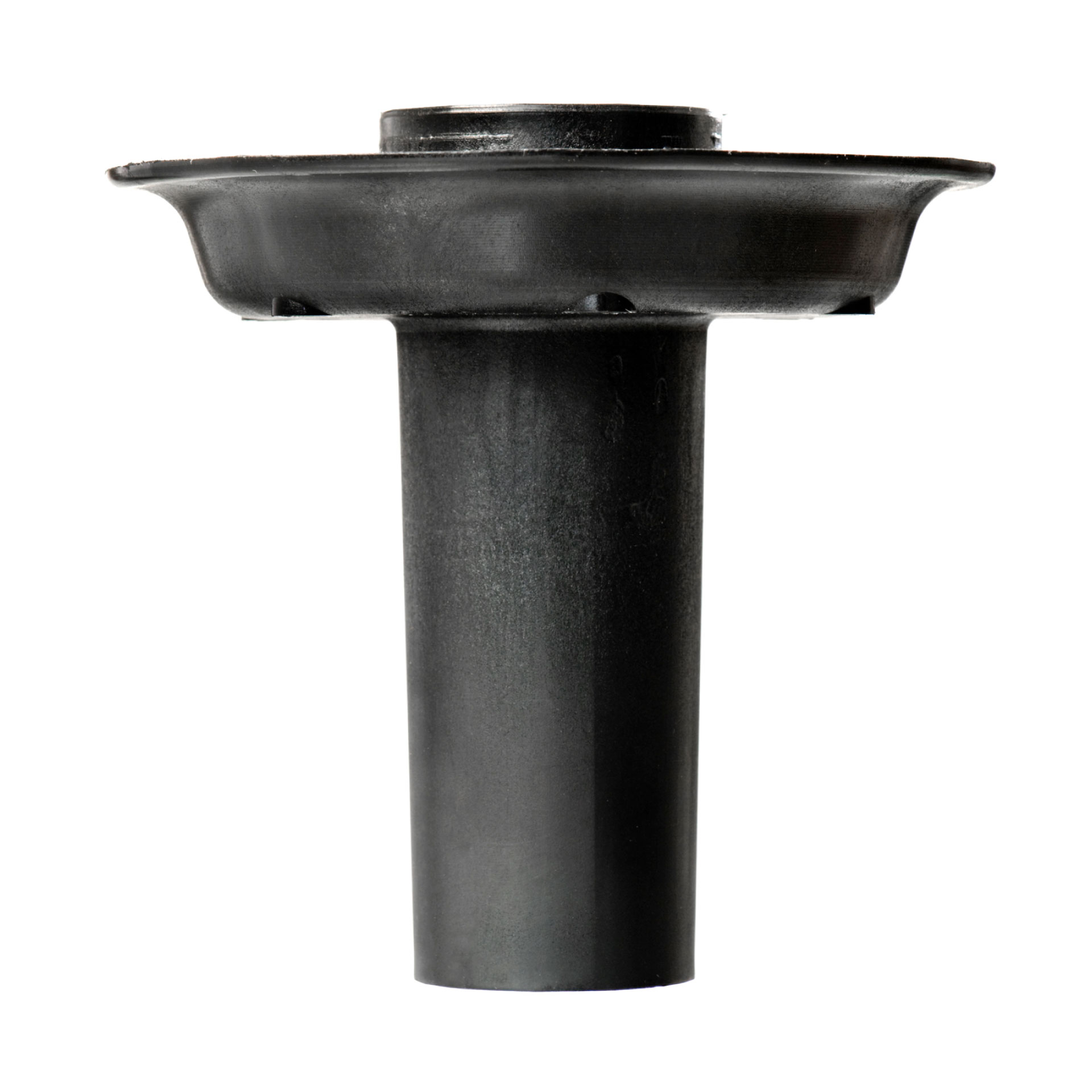

Stop Unit
-
-
Available as
Center unit for non-swiveling chair seats.
-
Name
Product Code
Available As
-
Stop Unit
351 951
Specifications
Material: composite
Color: black
MK6 = 1°29’36” (=Patron swivel)
REACH -Compliant
Options
See pages metal tubes and Cylindo -, Cornet – and Patron Column
Assembling gallery
Technical Support
Assembling instructions

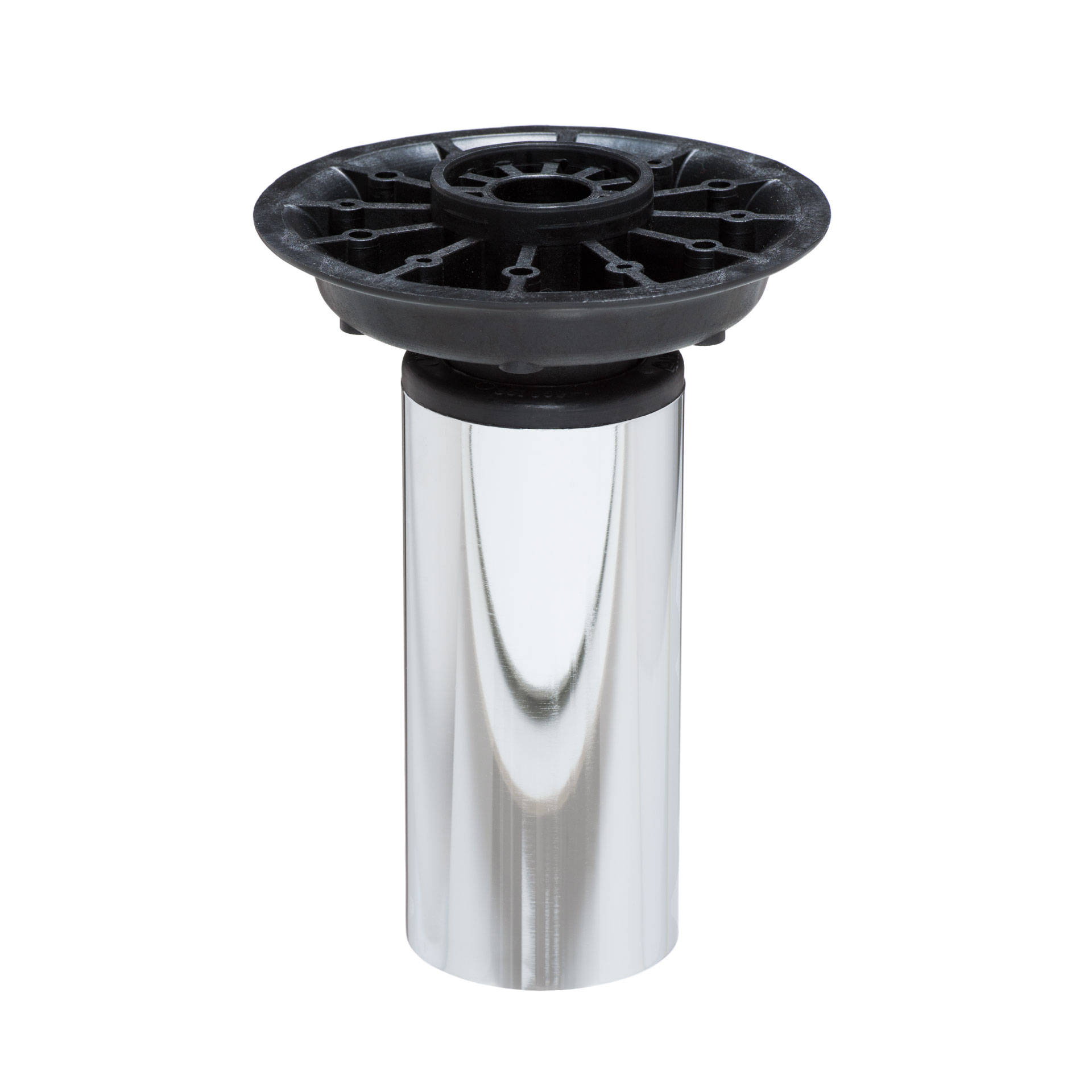

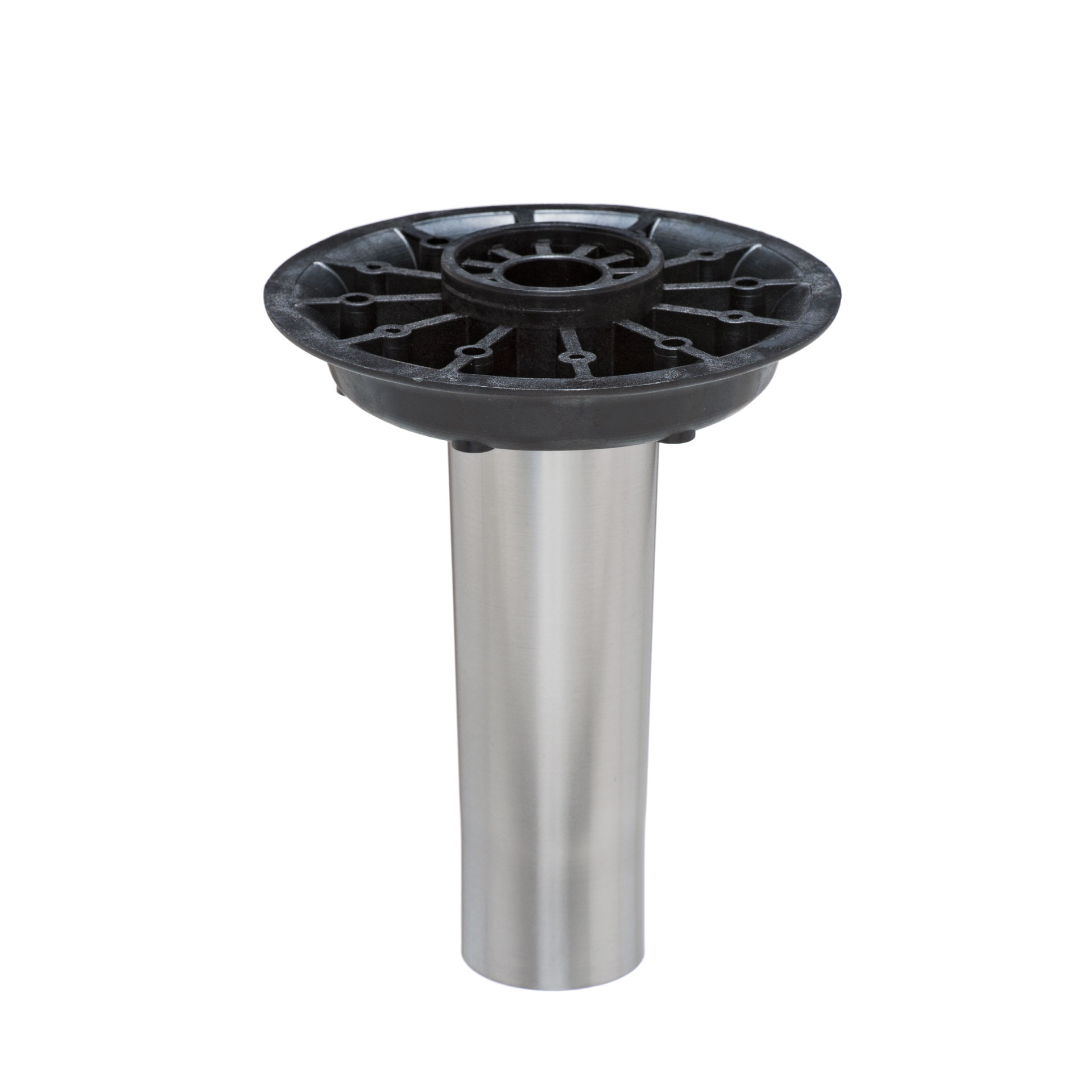

Stop Unit could be combined with Cylindo Column, Cornet Column, Patron Column and metal 50/76,1mm tubes
Stop Unit to be fastened to chair seat/frame with Alt.1: 6pcs wooden screws 5*50mm from above or Alt.2: 6pcs M6*35mm from underneath

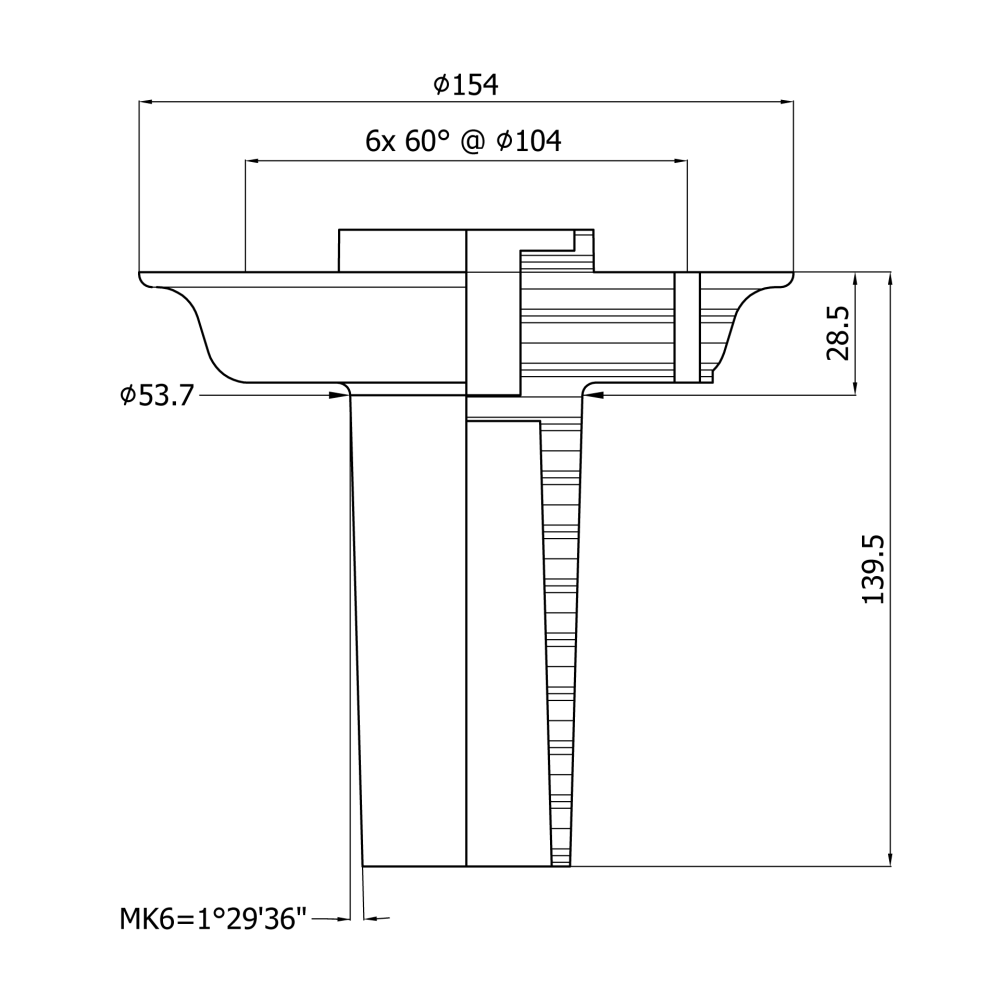

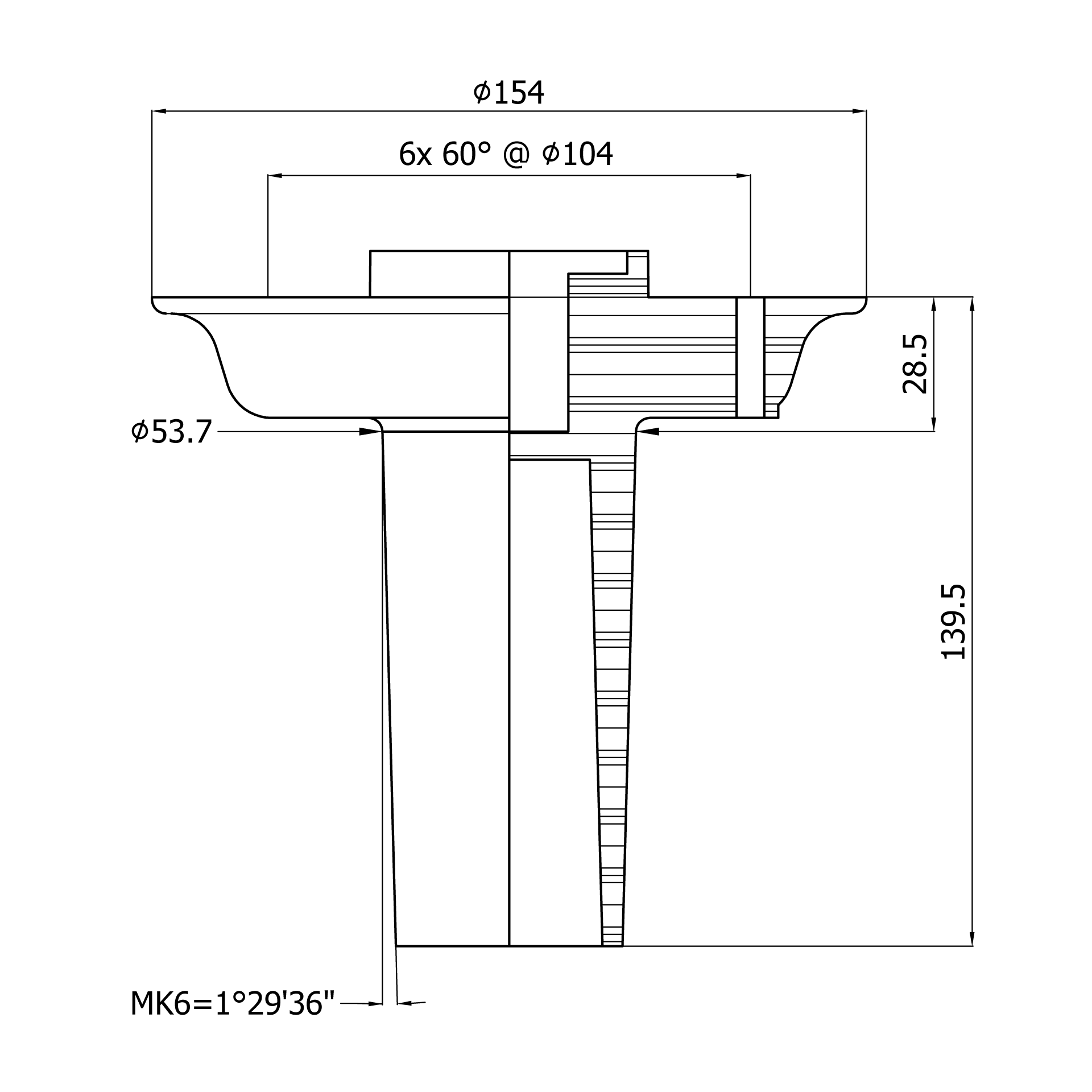

Hole pattern for swivel, Ø 104,0, 6pcs
